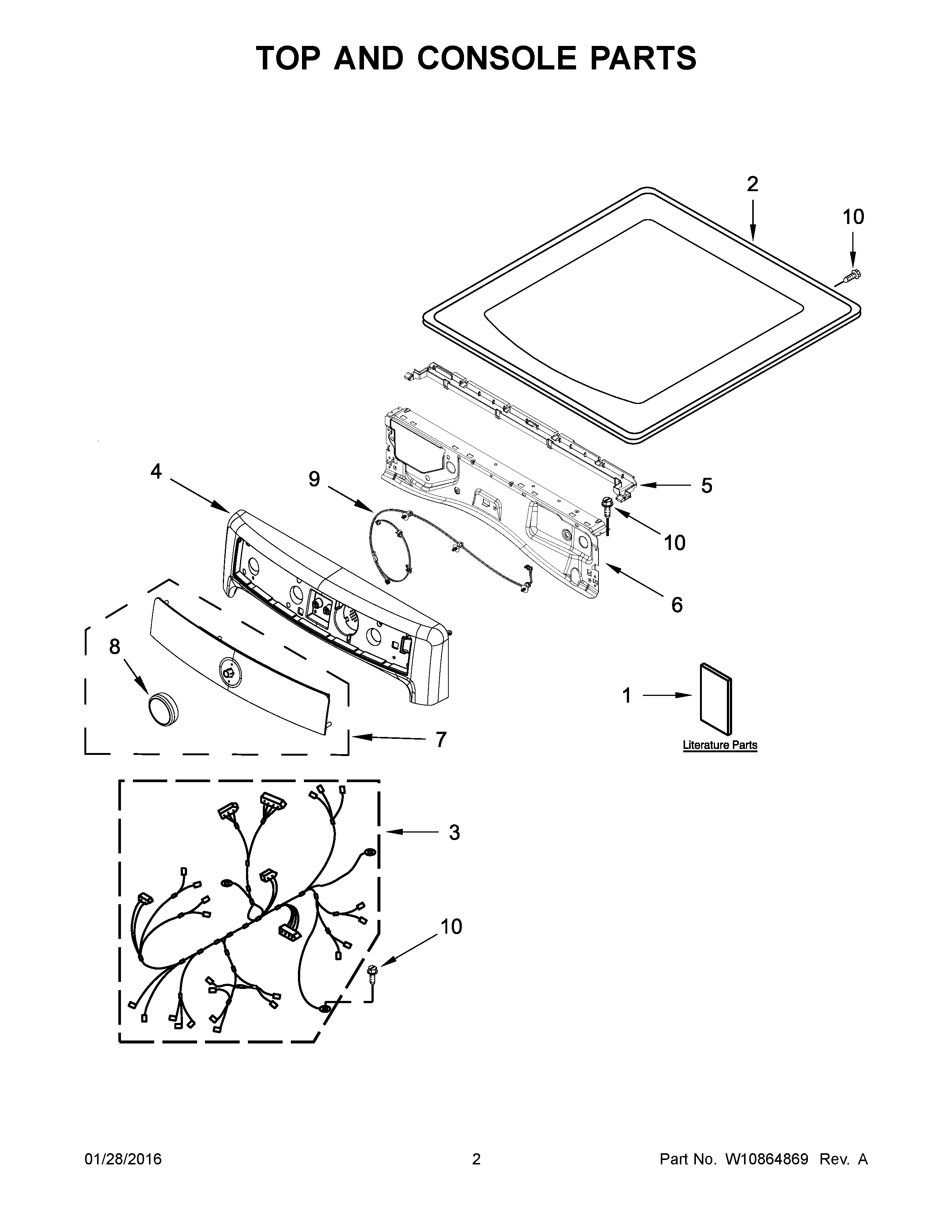

MED3500FW0 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	USE AND CARE GUIDE
1D	QUICK START GUIDE
1C	WIRING DIAGRAM
1B	MAY W10775223
1A	TECH SHEET
2	MAY W10208383
3	HARNESS, WIRING (MAIN)
4	MAY W10391555
5	WATER CHANNEL
6	MAY W10208198
7	MAY W10783692
8	ASSEMBLY, CONTROL KNOB (CHROME)
9	MAY W10540654
10	SCREW
