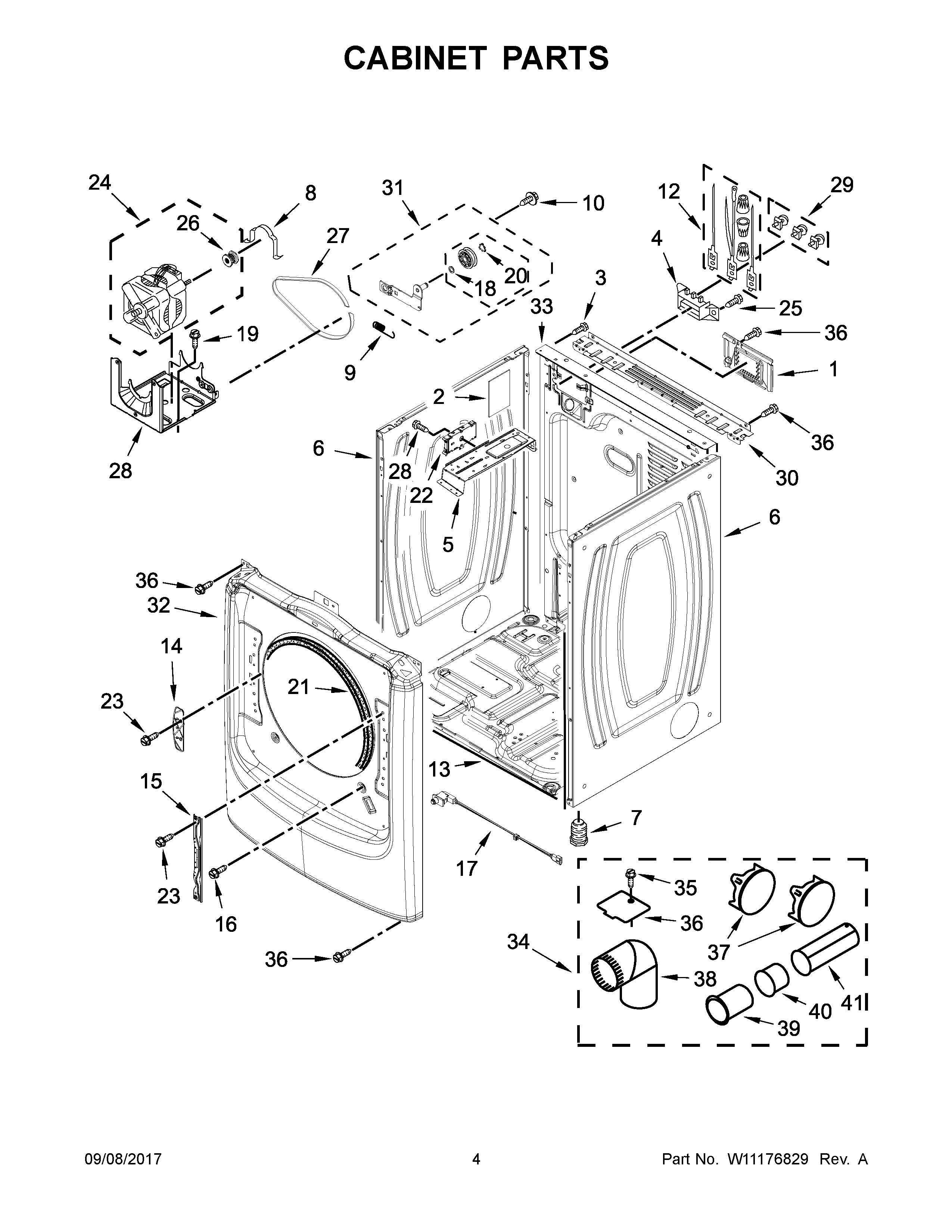

MED3500FW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	SCREW
4	MAY 3397659
5	MAY W10259611
6	MAY W10468495
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	MAY W10468057
12	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
13	MAY 8565046
14	MAY W10208250
15	MAY W10315109
16	SCREW
17	DOOR SWITCH, SNAP IN
18	MAY W10121334
19	SCREW
20	WASHER, TRI RING
21	MAY 3387242
22	BOARD, CONTROL
23	MAY W10288126
24	ASSEMBLY, MOTOR
25	Screw
26	Pulley, Motor
27	MAY W10112954
28	MAY W10242878
29	MAY 279393
30	MAY W10208382
31	ASSEMBLY, IDLER
32	PANEL, FRONT (WHITE)
33	MAY W10487431
34	KIT, 4-WAY VENT
35	SCREW
36	MAY W10354249
37	PLUG, MULTIVENT (MIDNIGHT GREY)
38	MAY W10416072
39	PIPE, EXHAUST (MEDIUM)
40	PIPE, EXHAUST (SHORT)
41	PIPE, EXHAUST (LONG)
