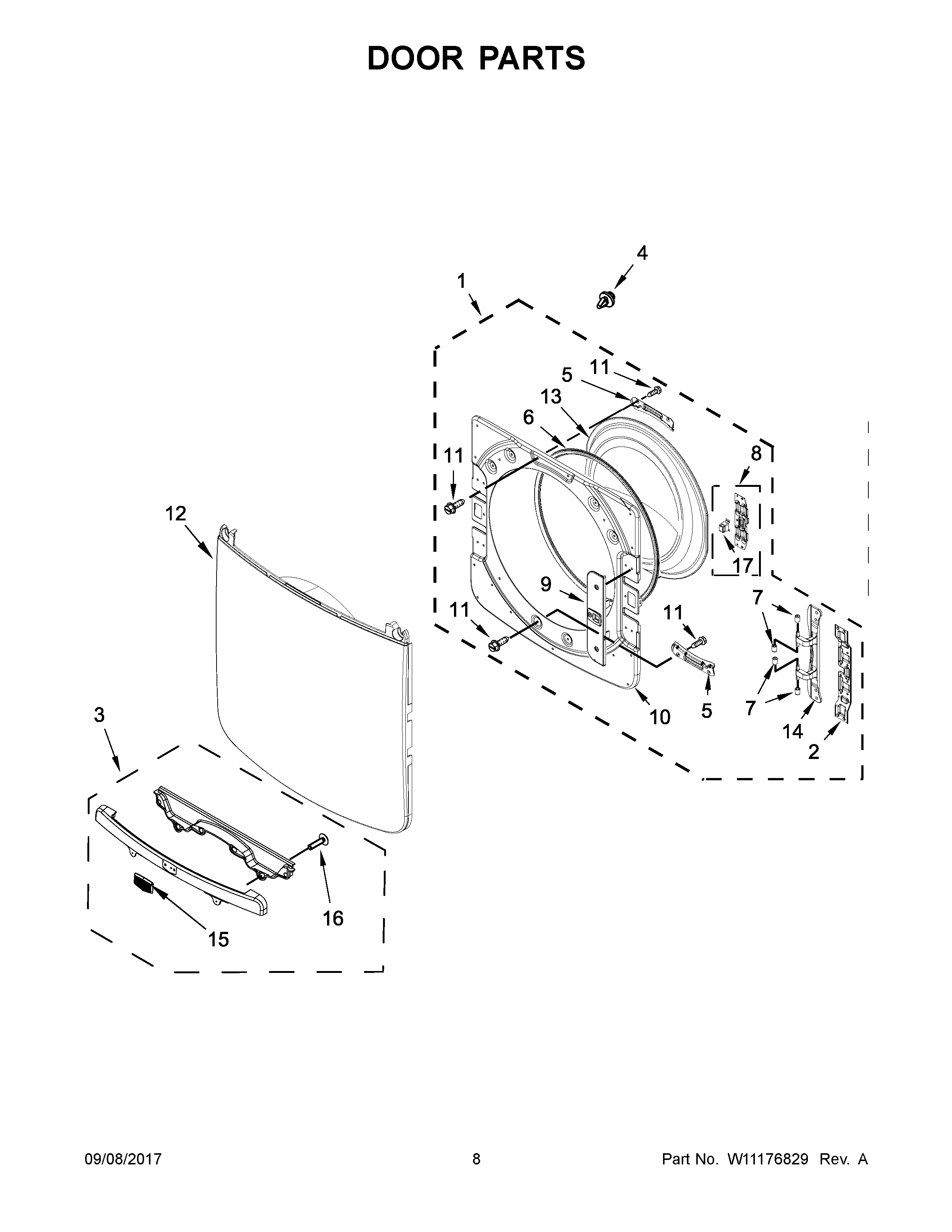

MED3500FW1 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, INNER DOOR
2MAY W10208419
3HANDLE, DOOR (BLACK)
4MAY 8572266
5MAY W10208252
6MAY W10329710
7MAY W10208398
8MAY W10208254
9MAY W10272404
10MAY W10272388
11MAY W10288126
12ASSEMBLY, OUTER DOOR
13GLASS, DOOR
14HINGE BASE
15BADGE, MAYTAG
16Screw
17MAY W10208401
