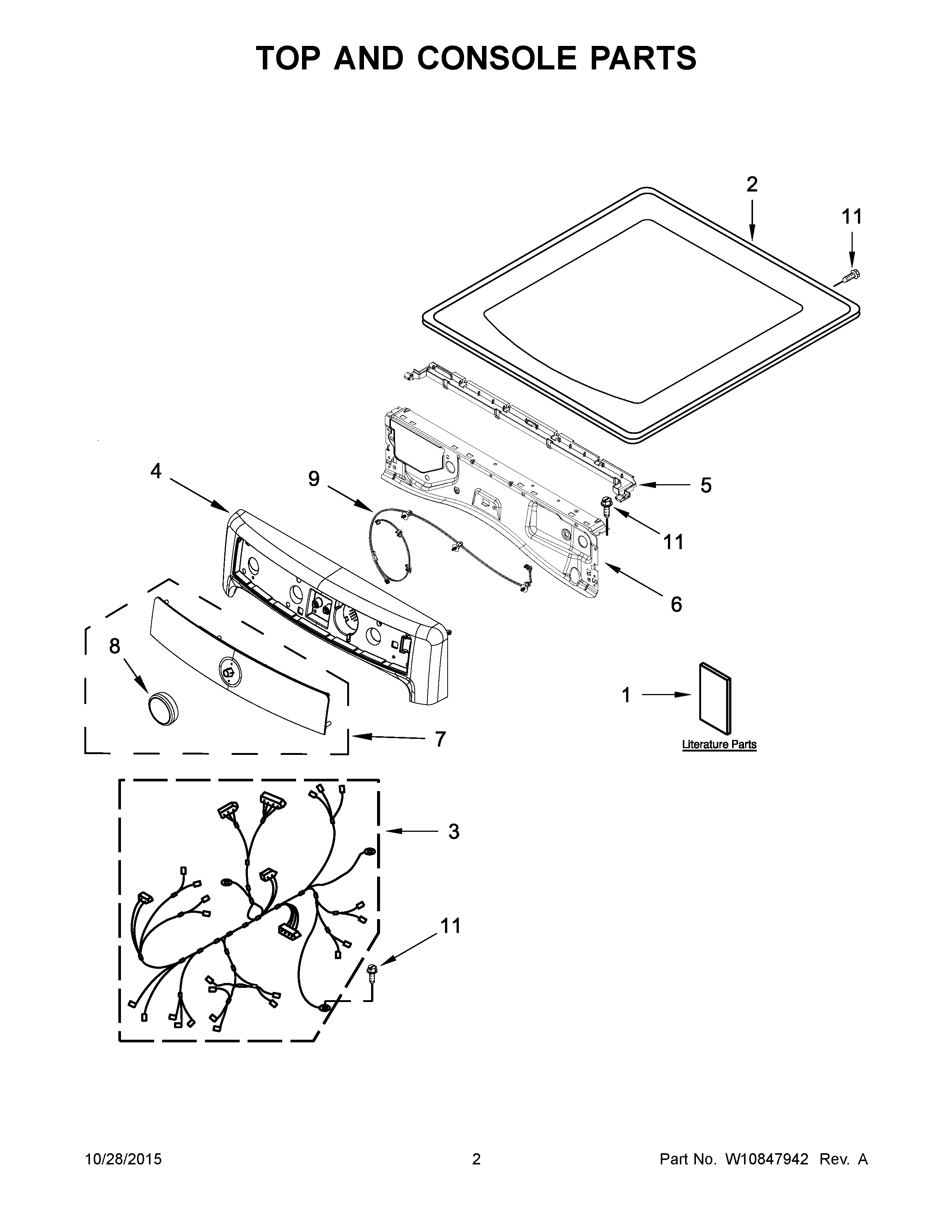

MED5100DC1 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1B	MAY W10676165
1	USE AND CARE GUIDE
1D	QUICK START GUIDE
1A	TECH SHEET
1C	WIRING DIAGRAM
2A	TOP (CHROME SHADOW)
2	MAY W10208383
3	HARNESS, MAIN
4	MAY W10391555
4A	CONSOLE ASSEMBLY (CHROME SHADOW)
5	WATER CHANNEL
6	MAY W10208198
7A	MAY W10800516
7	MAY W10800515
8	ASSEMBLY, CONTROL KNOB (CHROME)
9	MAY W10540653
10	MAY W10489172
11	SCREW
