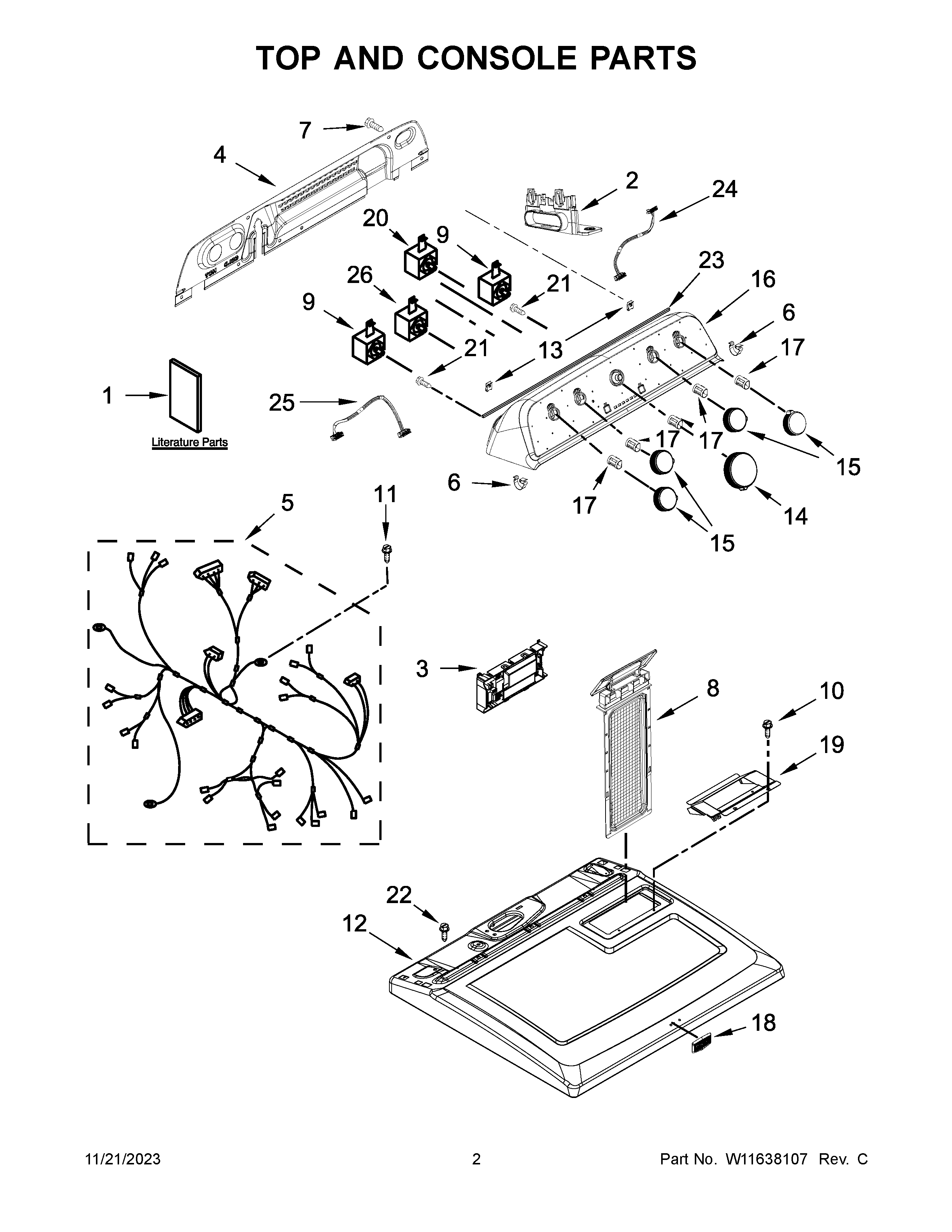

MED5430MW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	QUICK START GUIDE
1A	TECH SHEET
1	OWNERS MANUAL
2	W11627417 Whirlpool Connector
3	CNTRL-ELEC + CORE
4	W10775189 Whirlpool Rear Panel
5	HARNESS, MAIN
6	WP8312709 Whirlpool Endcap Clip
7	SCREW
8	SCREEN
9	W11168256 Whirlpool Cycle Switch
10	W11693756 Whirlpool Screw Assembly
11	WP90767 Whirlpool Screw
12	W11222514 Whirlpool Top Assembly
13	W11213336 Whirlpool Nut
14	W11675852 Whirlpool Dryer Control Knob
15	W11625514 Whirlpool Knob
16	CONSOLE
17	WP688805 Whirlpool Spring Clip
18	WPW10612925 Whirlpool Microwave Nameplate
19	W10662472 Whirlpool Cover Assembly
20	WPW10414397 Whirlpool Cycle Switch
21	WP9740848 Whirlpool Dishwasher Screw
23	W11721376 Whirlpool Seal Assembly
24	HARNESS, UPPER ENCODER RS
25	HARNESS, UPPER ENCODER
26	WPW10414398 Whirlpool Cycle Switch
