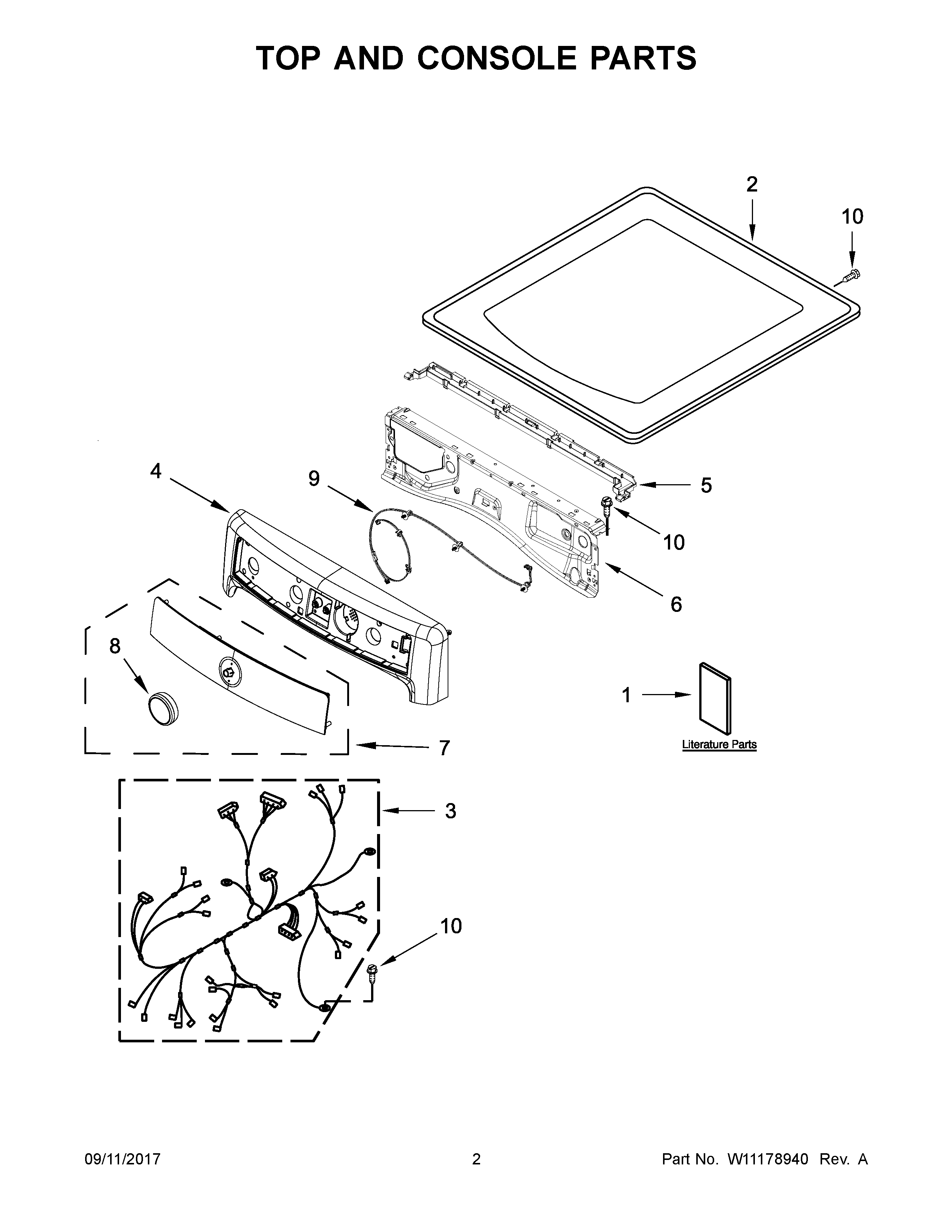

MED5500FC1 02 – TOP AND CONSOLE PARTS

MED5500FC1 02 – TOP AND CONSOLE PARTS

Written by

in

MED5500FC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1CWIRING DIAGRAM
1USE AND CARE GUIDE
1DQUICK START GUIDE
1BINSTALLATION INSTRUCTIONS
2ATOP (CHROME SHADOW)
2MAY W10208383
3HARNESS, MAIN
4ACONSOLE ASSEMBLY (CHROME SHADOW)
4MAY W10391555
5CHANNEL, WATER
6MAY W10208198
7AMAY W10825123
7MAY W10825121
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10SCREW
