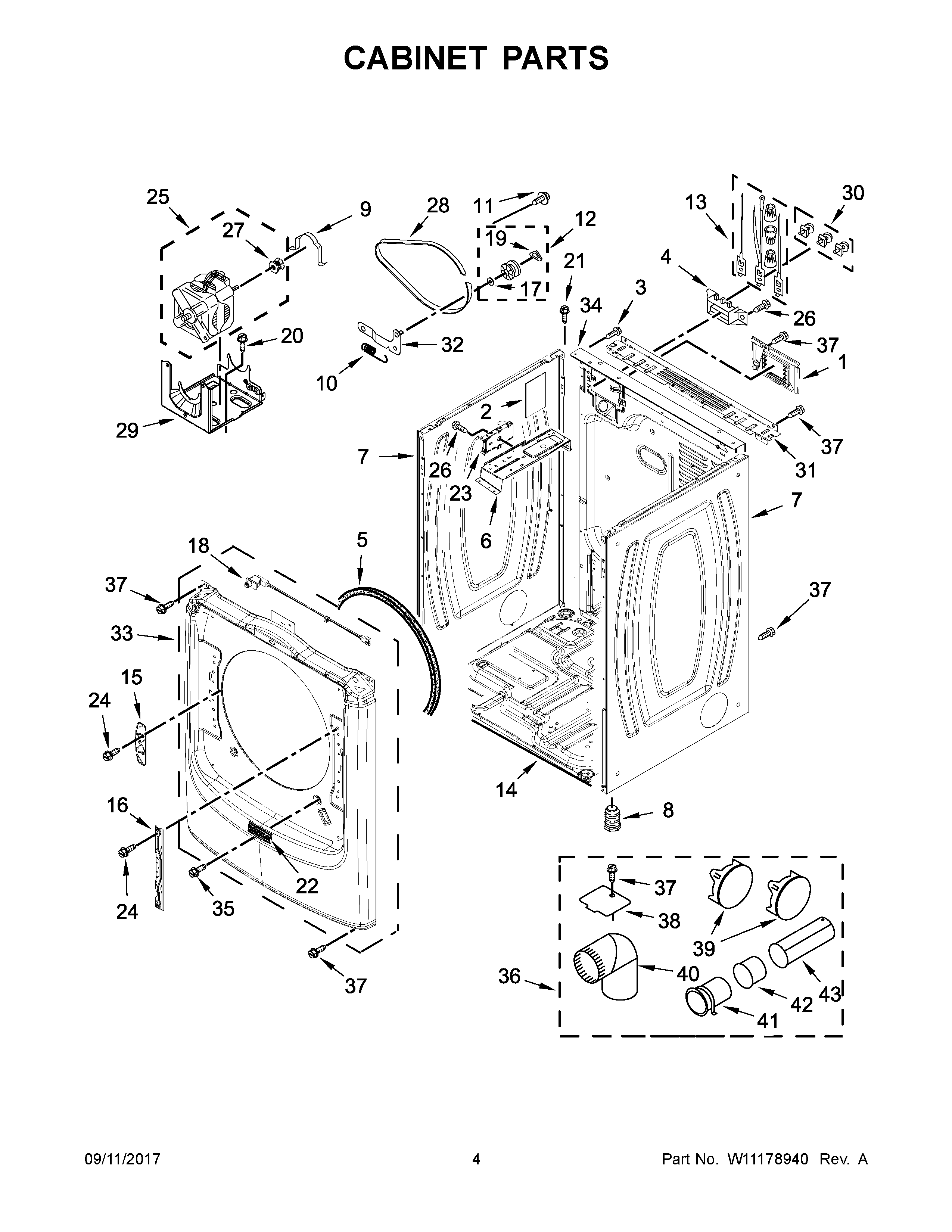

MED5500FC1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	SCREW
4	MAY 3397659
5	MAY 3387242
6	MAY W10259611
7A	PANEL, SIDE (CHROME SHADOW)
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY W10468057
13	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
14	MAY 8565046
15	MAY W10208250
16	MAY W10315109
17	MAY W10121334
18	DOOR SWITCH, SNAP IN
19	WASHER, TRI RING
20	SCREW
21	SCREW, 10-16 X 1/2
22	BADGE, MAYTAG
23	CONTROL BOARD
24	MAY W10288126
25	ASSEMBLY, MOTOR
26	Screw
27	Pulley, Motor
28	MAY W10112954
29	MAY W10242878
30	MAY 279393
31	MAY W10208382
32	MAY 3388674
33	PANEL, FRONT (WHITE)
33A	PANEL, FRONT (COSMETALLIC)
34	MAY W10487430
35	SCREW
36	KIT, 4-WAY VENT
37	Screw
38	MAY W10354249
39	PLUG, MULTIVENT (MIDNIGHT GREY)
40	MAY W10416072
41	PIPE, EXHAUST (MEDIUM)
42	PIPE, EXHAUST (SHORT)
43	PIPE, EXHAUST (LONG)
