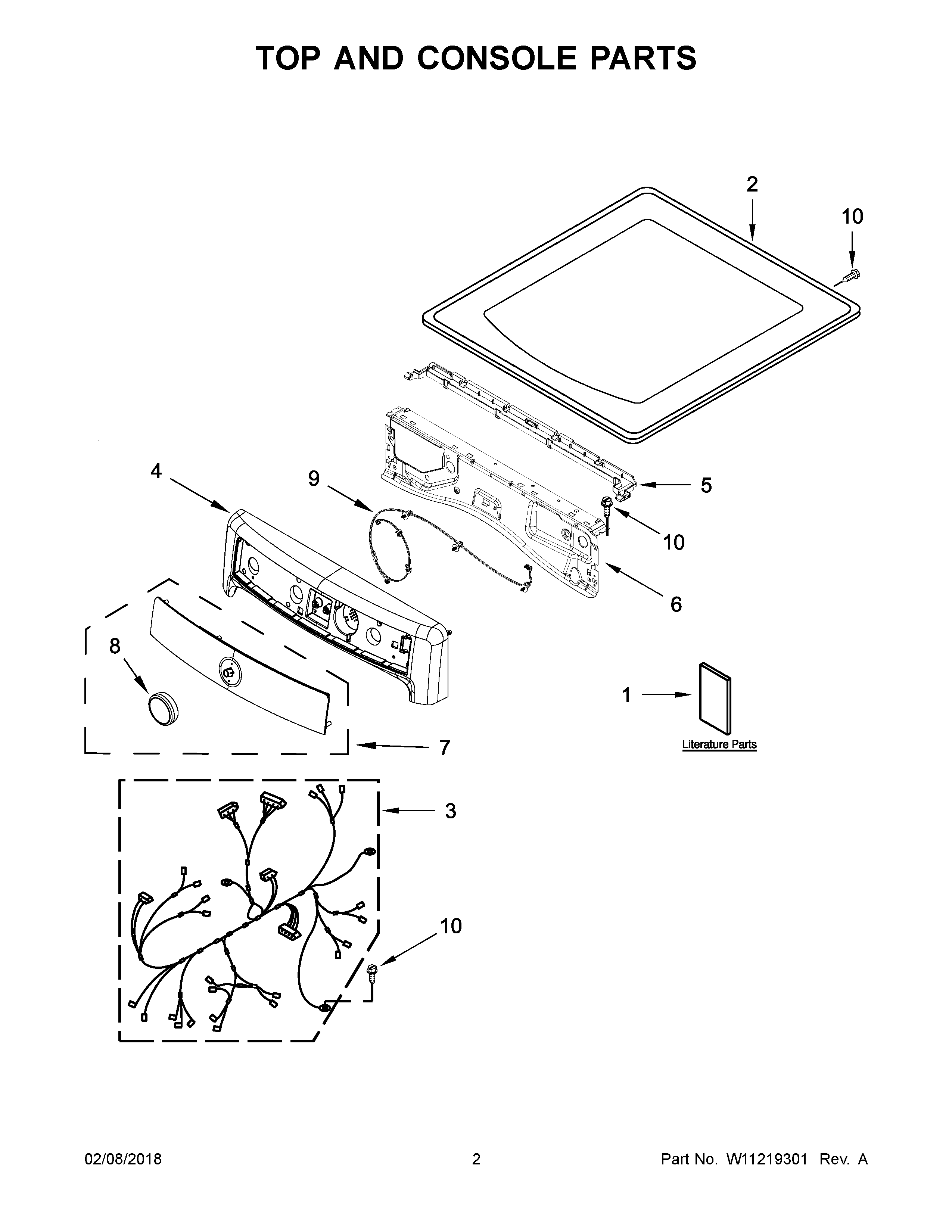

MED5500FC2 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1D	QUICK START GUIDE
1C	WIRING DIAGRAM
1A	TECH SHEET
1	USE AND CARE GUIDE
1B	INSTALLATION INSTRUCTIONS
2A	TOP (CHROME SHADOW)
2	MAY W10208383
3	HARNESS, MAIN
4A	CONSOLE ASSEMBLY (CHROME SHADOW)
4	MAY W10391555
5	WATER CHANNEL
6	MAY W10208198
7A	MAY W10825123
7	MAY W10825121
8	ASSEMBLY, CONTROL KNOB (CHROME)
9	MAY W10540653
10	SCREW
