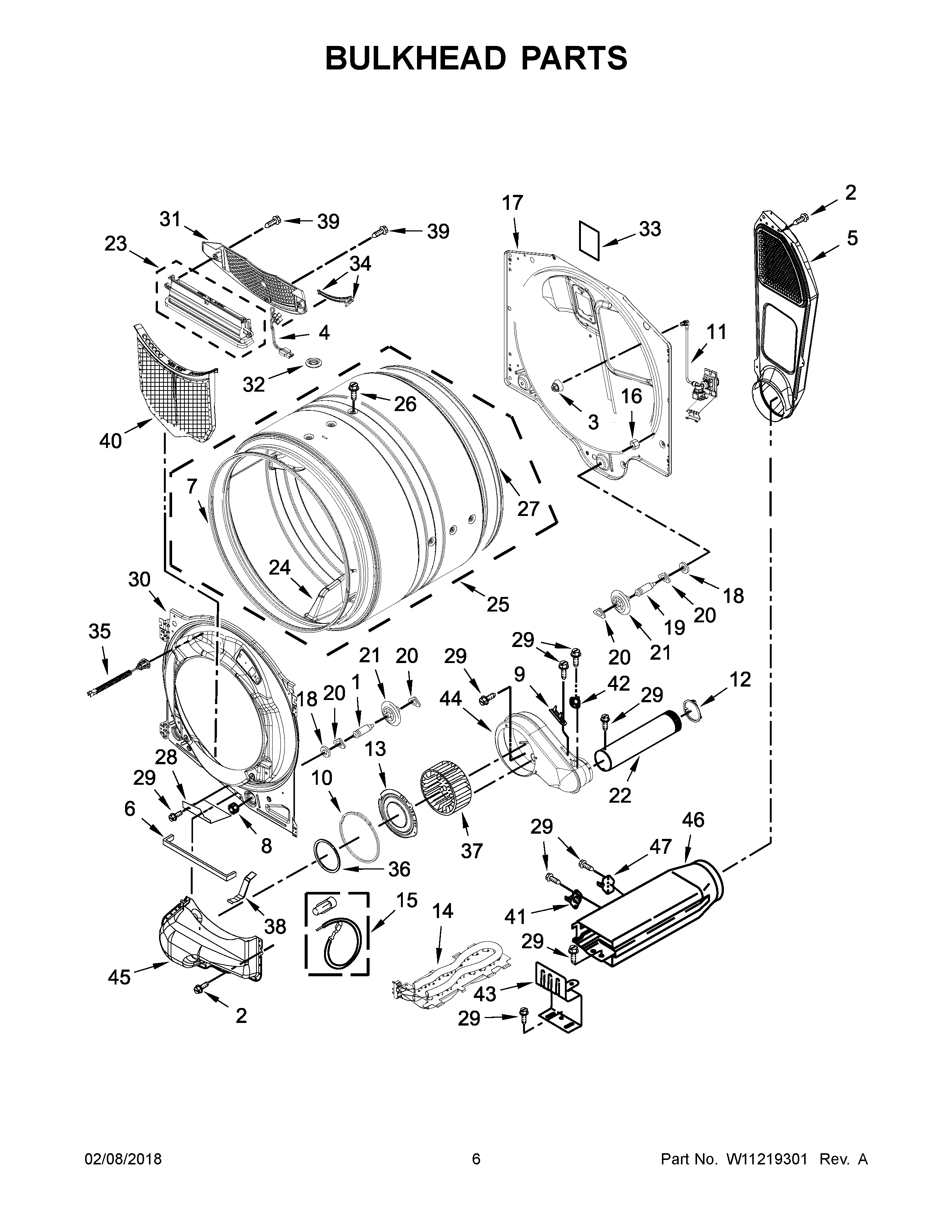

MED5500FC2 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	NOZZLE, CAP
4	MAY W10298258
5	ASSEMBLY, AIR DUCT
6	MAY W10211950
7	MAY W10521122
8	NUT, HEX
9	FUSE, THERMAL (91C)
10	SEAL, PLATE COVER
11	VALVE AND HOSE ASSEMBLY
12	MAY W10344699
13	MAY W10211901
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10342188
23	ASSEMBLY, OUTLET GRILL AND HOUSING
24	MAY W10416098
25	DRUM ASSEMBLY COMPLETE
26	MAY W10219342
27	MAY W10521118
28	MAY W10128629
29	Screw
30	BULKHEAD, FRONT
31	GRILL, OUTLET
32	CAP, PLUG
33	PAD, FOAM
34	SENSOR, ELECTRODE
35	MAY W10460935
36	MAY W10211899
37	MAY W10211915
38	MAY W10414388
39	SCREW
40	LINT SCREEN (WHITE)
41	MAY 8557403
42	THERMISTOR
43	MAY 8066099
44	MAY W10211911
45	MAY W10211896
46	ASSEMBLY, WELD HEATER BOX
47	KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
