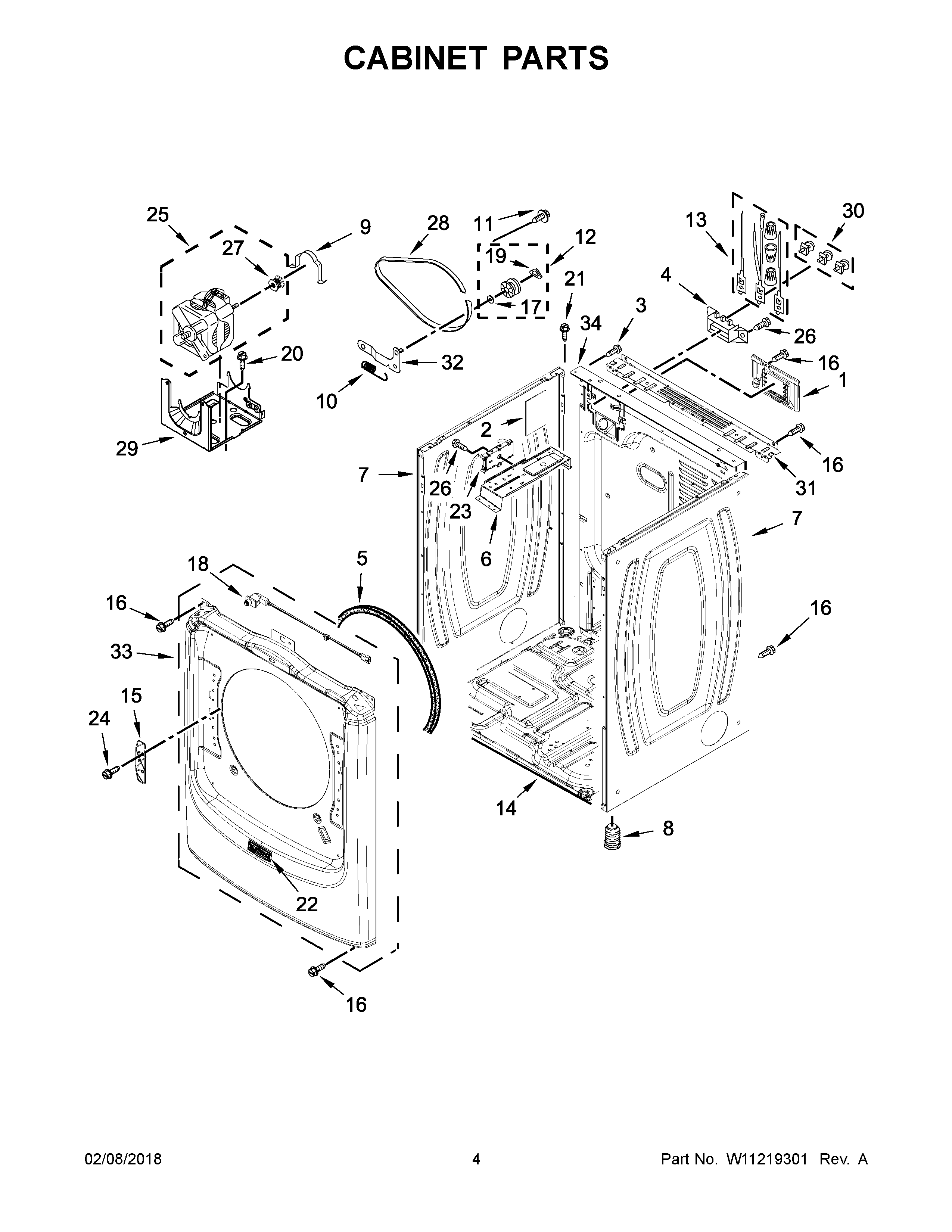

MED5500FW2 03 – CABINET PARTS

Products

Position	Product
NI	KIT, 4-WAY VENT
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	SCREW
4	MAY 3397659
5	MAY 3387242
6	MAY W10259611
7A	PANEL, SIDE (CHROME SHADOW)
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY W10468057
13	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
14	MAY 8565046
15	MAY W10208250
16	SCREW
17	MAY W10121334
18	MAY W10569114
19	WASHER, TRI RING
20	SCREW
21	SCREW, 10-16 X 1/2
22	BADGE, MAYTAG
23	CONTROL BOARD
24	MAY W10288126
25	ASSEMBLY, MOTOR
26	Screw
27	Pulley, Motor
28	MAY W10112954
29	MAY W10242878
30	MAY 279393
31	MAY W10208382
32	MAY 3388674
33	PANEL, FRONT (WHITE)
33A	PANEL, FRONT (COSMETALLIC)
34	MAY W10487430
