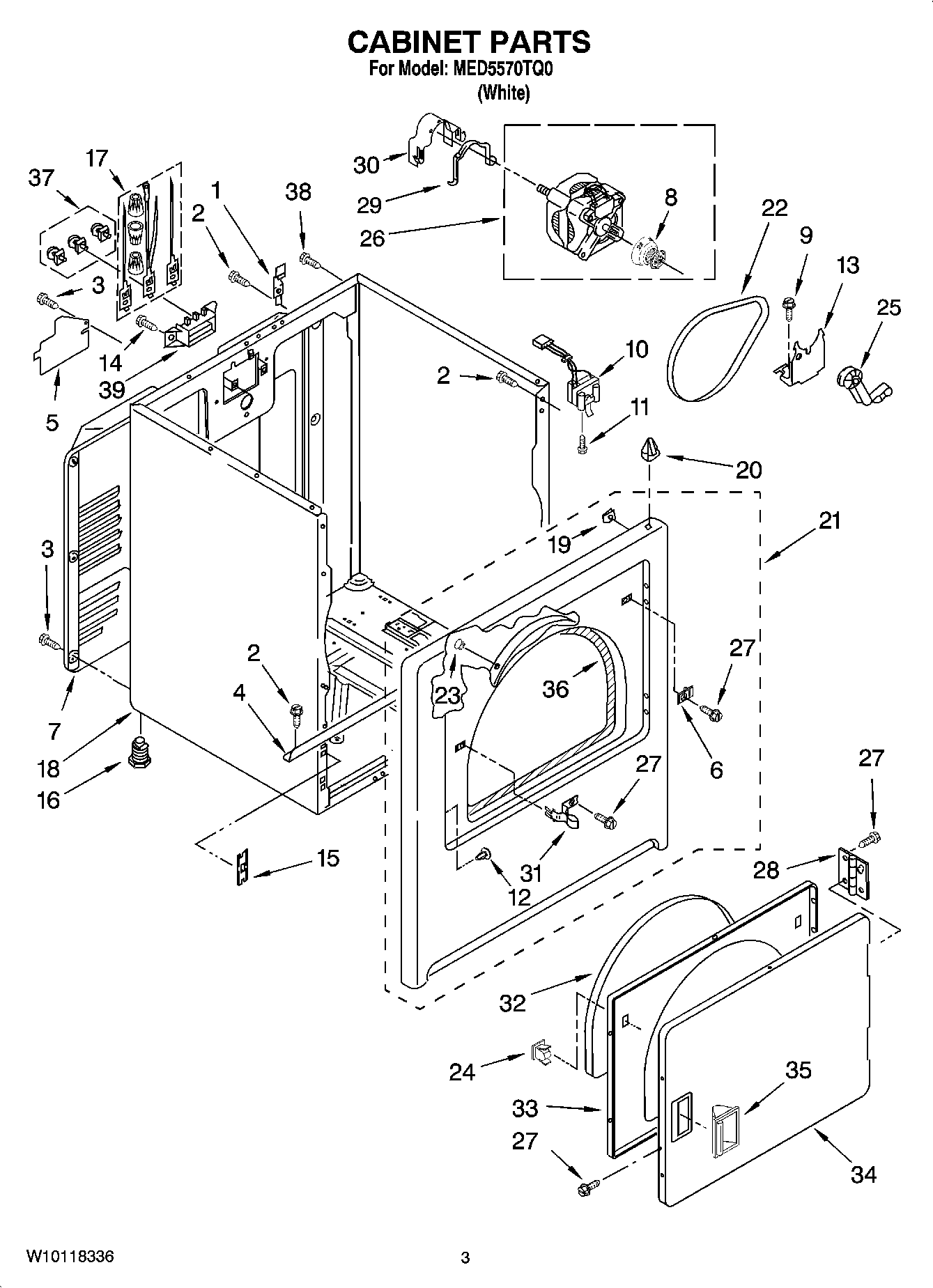

MED5570TQ0 02 – CABINET PARTS

Products

Position	Product
1	Hinge, Top
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	PLUG-STRIKE
7	MAY 3396805
8	Pulley, Motor
9	BOLT
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	MAY 348780
14	SCREW, 10-16 X 1/2
15	MAY 3394083
16	MAY 3392100
16	MAY 279810
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel, Front (White)
22	MAY 8066065
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	IDLER ASSEMBLY
26	MAY 8066206
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	MAY 660658
30	Clamp, Motor (With Shield)
31	Strike, Door
32	MAY 3405246
33	Door, Rear
34	DOOR FRONT
35	Handle, Door
36	MAY 3406129
37	MAY 279393
38	Screw, 8-18 x 5/8 (External Ground)
39	MAY 3397659
