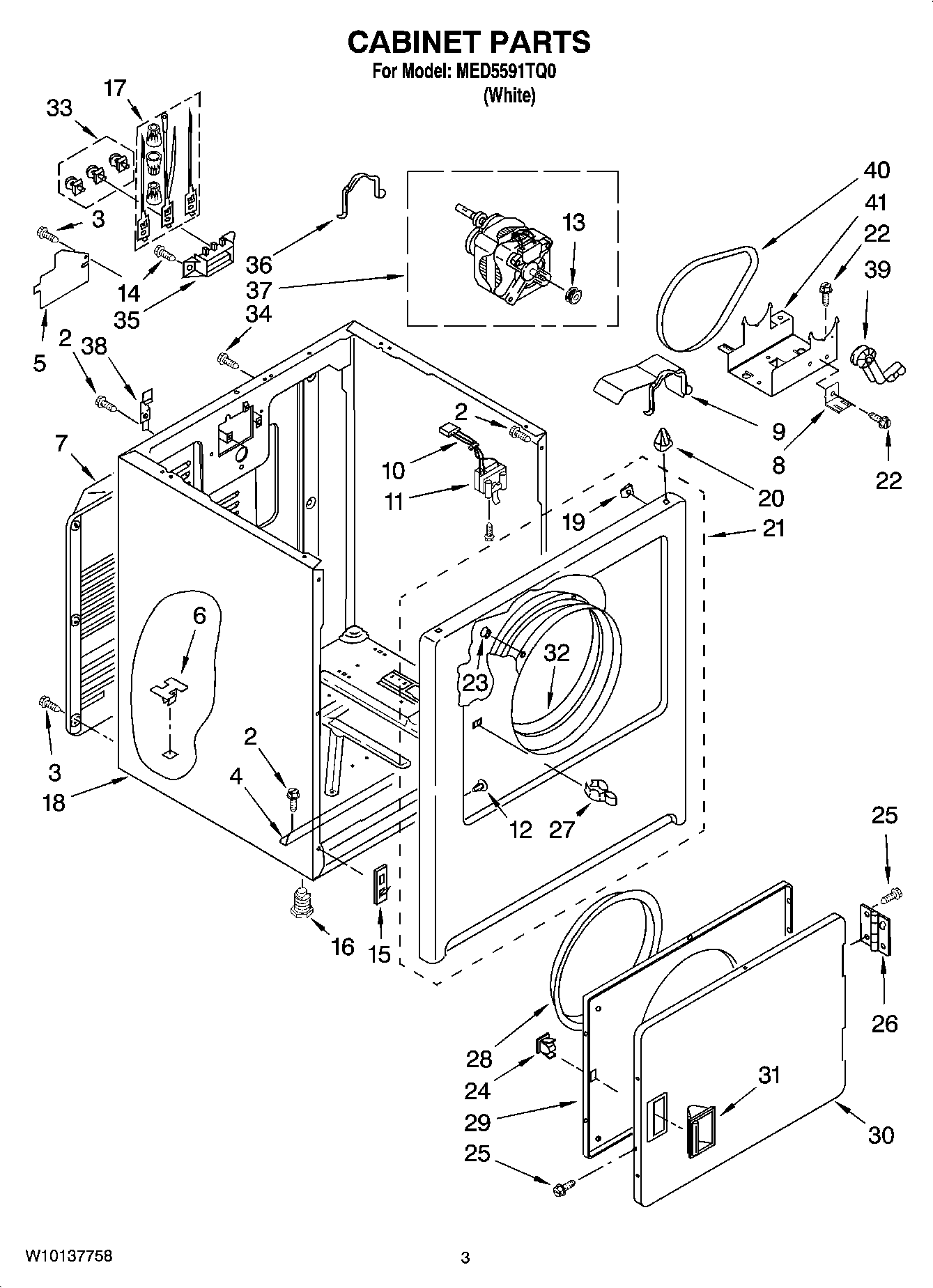

MED5591TQ0 02 – CABINET PARTS

Products

Position	Product
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Plug-Cabinet
7	MAY 3396807
8	MAY 3401805
9	Shield, Belt Assembly
10	MAY 3406105
11	SCREW
12	PLUG, HINGE HOLES
13	Pulley 60 HZ.
14	SCREW, 10-16 X 1/2
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403571
22	BOLT
23	Clip, Felt Pad
24	Catch, Door
25	MAY 342055
26	HINGE AND PIN ASSEMBLY
27	MAY 696144
28	MAY 3405245
29	MAY 3403371
30	MAY 3403361
31	Handle, Door
32	MAY 8066124
33	MAY 279393
34	Screw, 8-18 x 5/8 (External Ground)
35	MAY 397659
36	MAY 660658
37	Motor Assembly
38	Hinge, Top
39	IDLER ASSEMBLY
40	MAY 8066065
41	MAY 3401802
