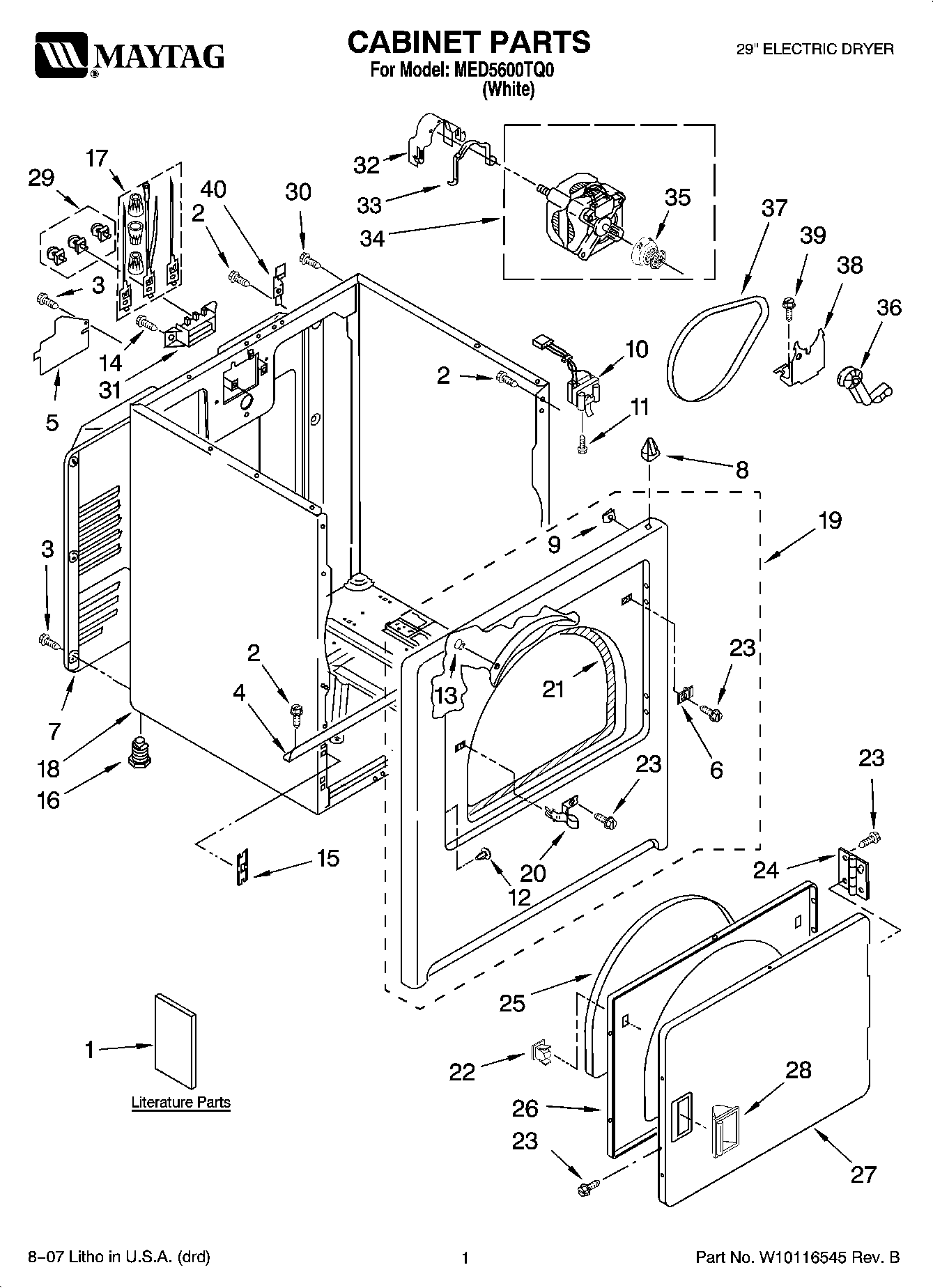

MED5600TQ0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10089170
1	MAY W10088770
1	MAY 8576817
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	PLUG-STRIKE
7	MAY 3396805
8	LOCK, FRONT TOP
9	Clip, Ground
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	SCREW, 10-16 X 1/2
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Panel, Front (White)
20	Strike, Door
21	MAY 3406129
22	DOOR CATCH ASSEMBLY
23	MAY 342055
24	HINGE AND PIN ASSEMBLY
25	MAY 3405246
26	Door, Rear
27	DOOR FRONT
28	Handle, Door
29	MAY 279393
30	Screw, 8-18 x 5/8 (External Ground)
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	MAY 660658
34	MAY 8066206
35	Pulley, Motor
36	IDLER ASSEMBLY
37	MAY W10131364
38	MAY 348780
39	BOLT
40	Hinge, Top
