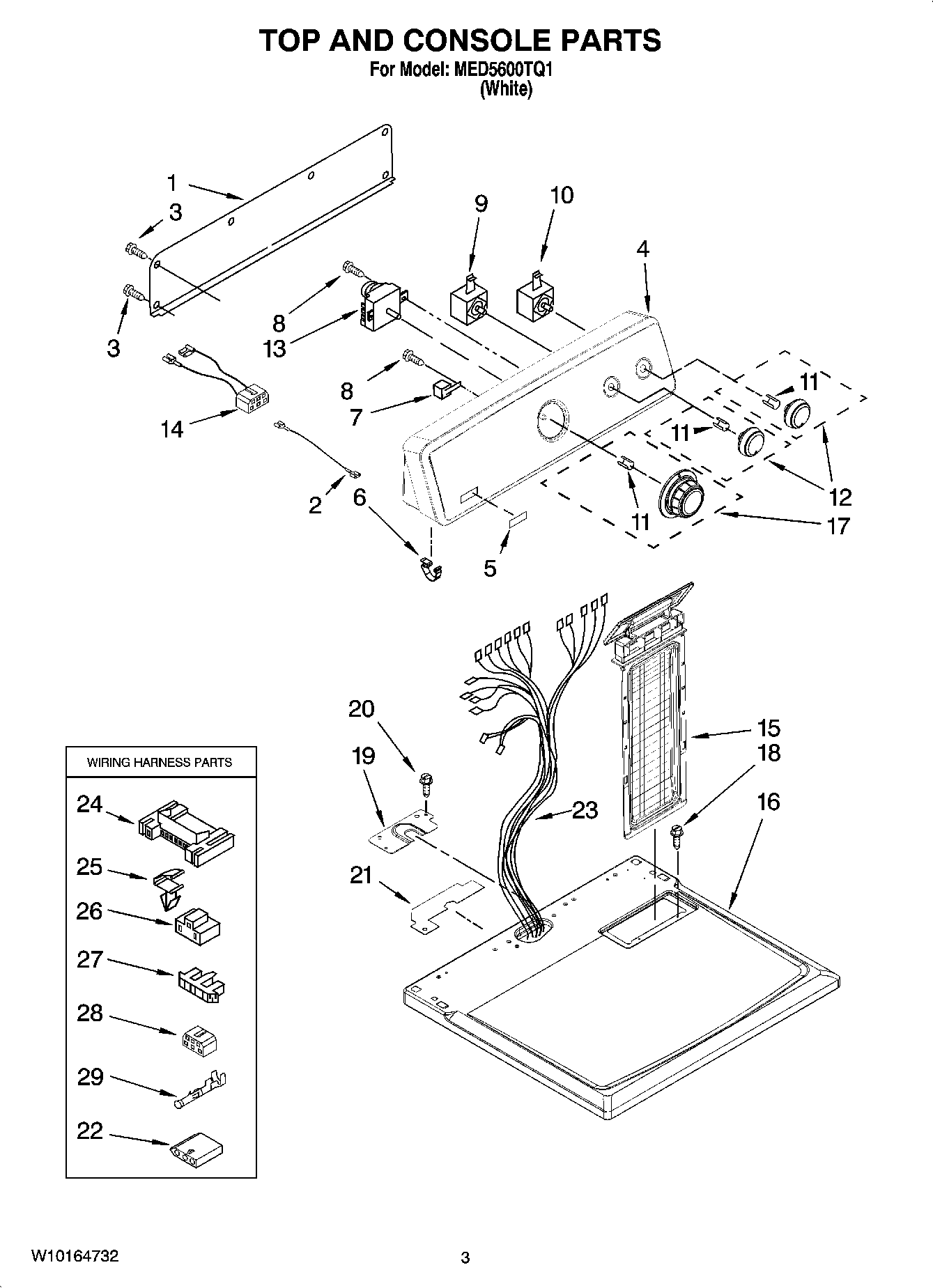

MED5600TQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10112577
2	WIRE, JUMPER (BUZZER)
3	Screw
4	Console & Shell Assembly (Includes Items 5 & 6)
5	MAY W10112569
6	MAY 8312709
7	MAY 694419
8	MAY 8533971
9	Switch, Temperature
10	MAY W10117655
11	CLIP, SPRING
12	Knob, Control (3)
13	MAY 3979617
14	MAY W10110861
15	Screen, Lint
16	MAY W10112597
17	Timer-Knob Assembly
18	SCREW
19	MAY W10112578
20	Screw, 8-18 x 3/4
21	Seal-Harness
22	MAY 3936144
23	MAY W10110991
24	CONNECTOR (MOTOR)
25	CLIP, HARNESS
26	Connector (PTS) Relay
27	Connector-Timer
28	Connector
29	Terminal
