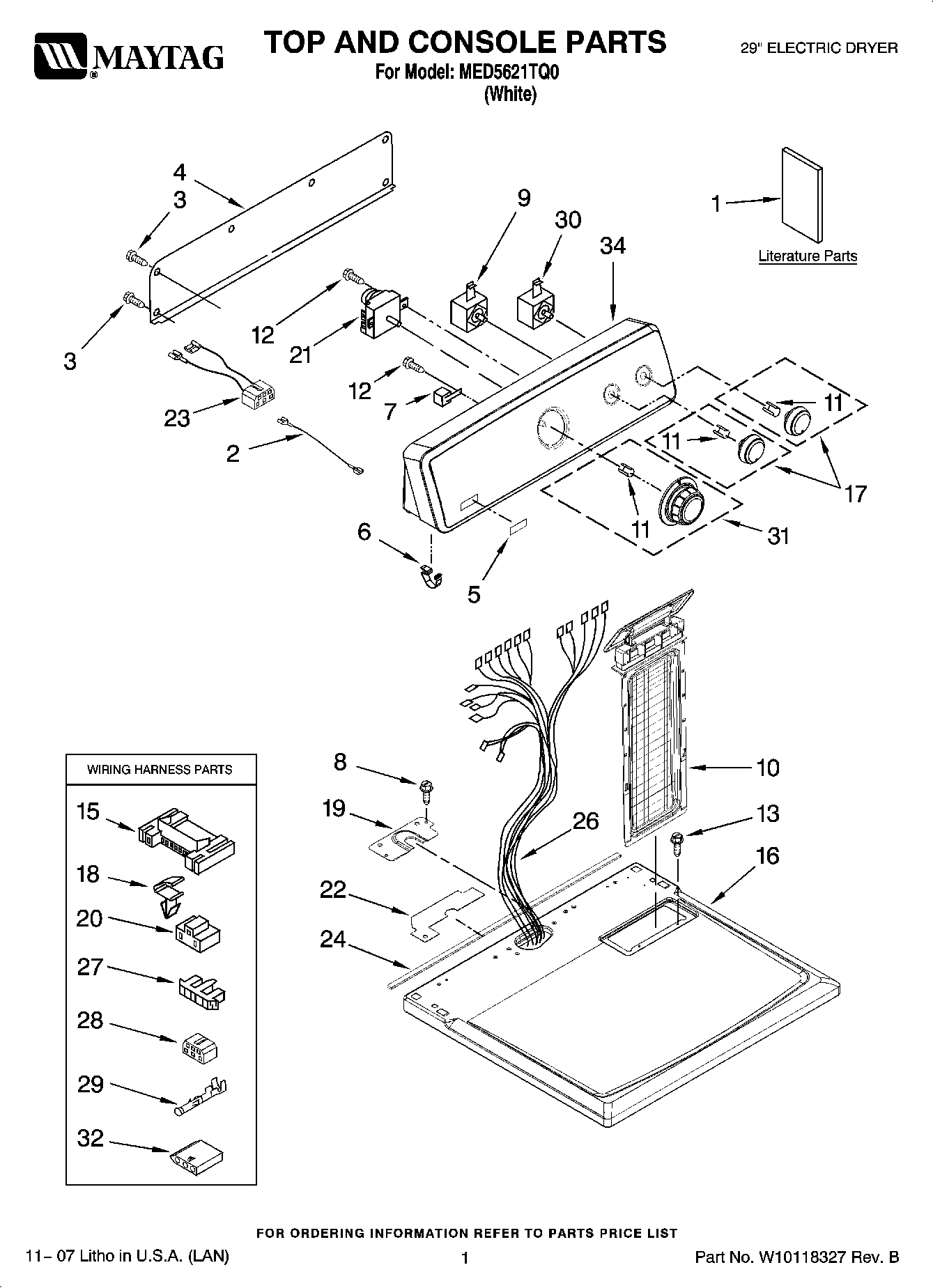

MED5621TQ0 01 – TOP AND CONSOLE PARTS

MED5621TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MED5621TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10150652
1MAY 8576817
1MAY W10150608
2WIRE, JUMPER (BUZZER)
3Screw
4Panel, Rear
5MAY W10112569
6MAY 8312709
7MAY 694419
8Screw, 8-18 x 3/4
9MAY 3399640
10Screen, Lint
11CLIP, SPRING
12MAY 8533971
13SCREW
15CONNECTOR (MOTOR)
16MAY W10112597
17Knob, Control (3)
18CLIP, HARNESS
19MAY 8565981
20Connector (PTS) Relay
21MAY 3979617
22MAY W10118608
23MAY W10113107
24Seal, Foam Console Bracket
26MAY W10110864
27Connector-Timer
28Connector
29Terminal
30MAY W10117655
31Timer-Knob Assembly
32MAY 3936144
34MAY W10086706
