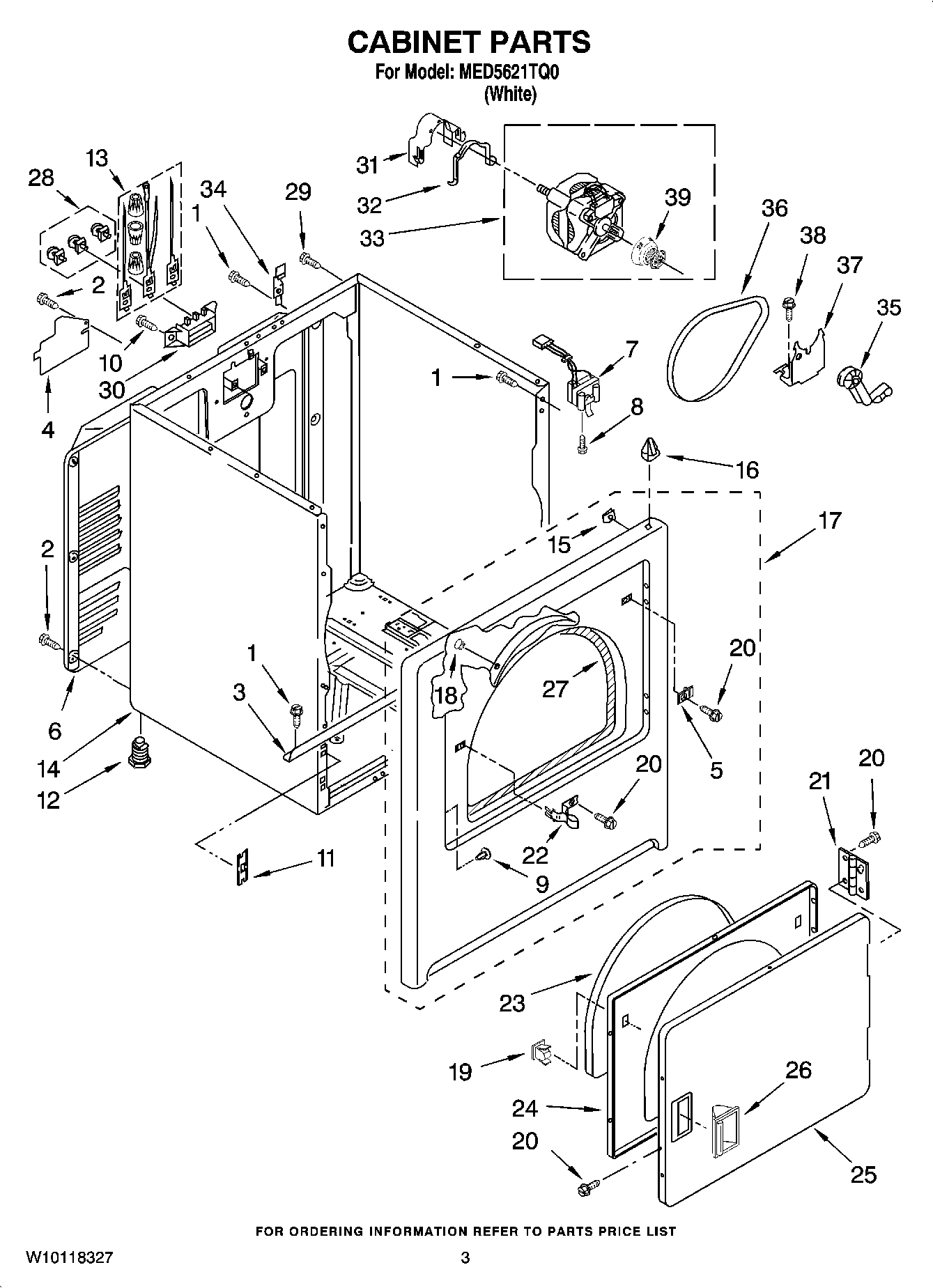

MED5621TQ0 02 – CABINET PARTS

Products

Position	Product
1	SCREW
2	Screw
3	MAY 8541400
4	MAY 3396795
5	PLUG-STRIKE
6	MAY 3396805
7	Switch, Door
8	SCREW
9	PLUG, HINGE HOLES
10	SCREW, 10-16 X 1/2
11	MAY 3394083
12	MAY 3392100
12	MAY 279810
13	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
14	CABINET (WHITE)
15	Clip, Ground
16	LOCK, FRONT TOP
17	Panel, Front (White)
18	Clip, Felt Pad
19	DOOR CATCH ASSEMBLY
20	MAY 342055
21	HINGE AND PIN ASSEMBLY
22	Strike, Door
23	MAY 3405246
24	Door, Rear
25	DOOR FRONT
26	Handle, Door
27	MAY 3406129
28	MAY 279393
29	Screw, 8-18 x 5/8 (External Ground)
30	MAY 3397659
31	Clamp, Motor (With Shield)
32	MAY 660658
33	MAY 8066206
34	Hinge, Top
35	IDLER ASSEMBLY
36	MAY W10131364
37	MAY 348780
38	BOLT
39	Pulley, Motor
