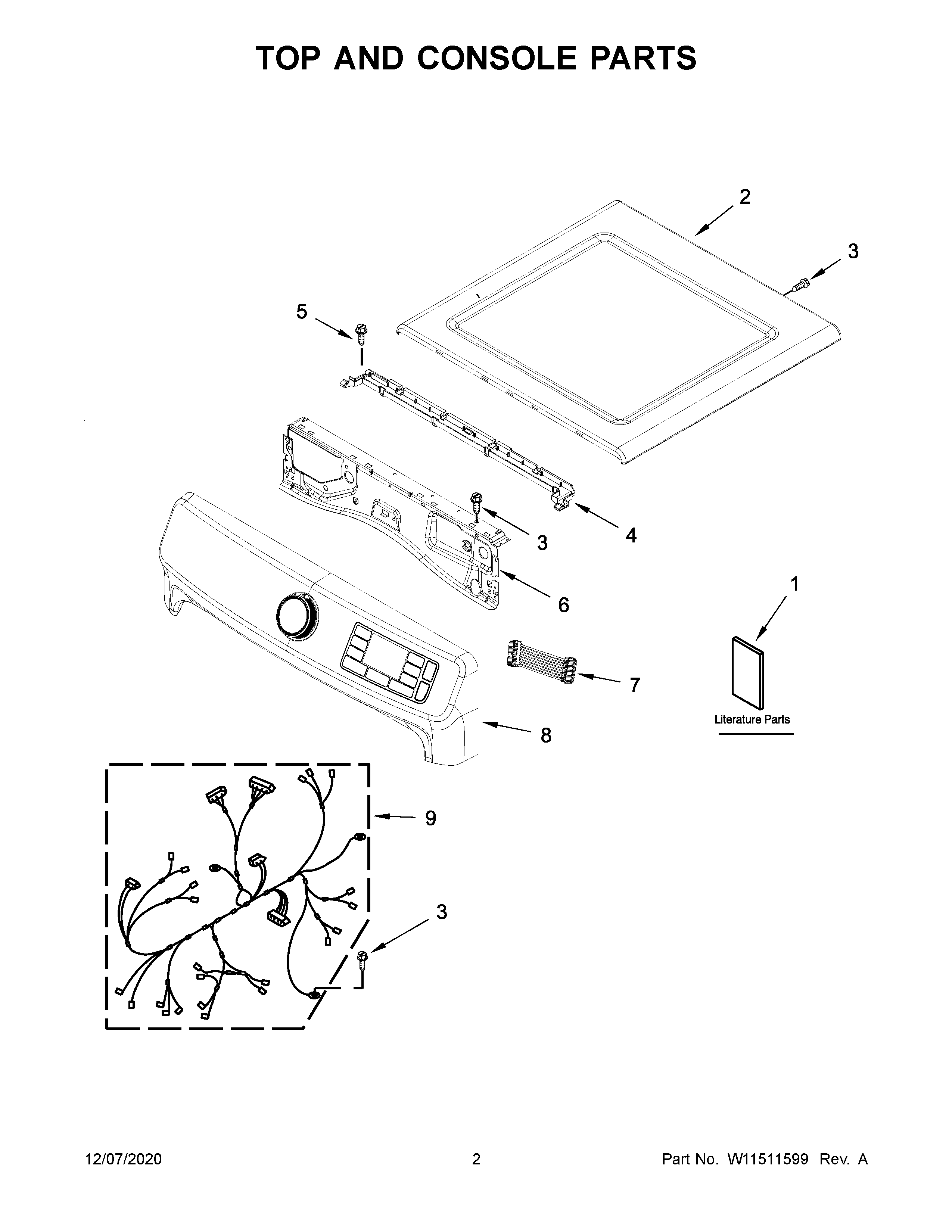

MED5630HW2 02 – TOP AND CONSOLE PARTS

MED5630HW2 02 – TOP AND CONSOLE PARTS

Written by

in

MED5630HW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1CQUICK START GUIDE
1BWIRING DIAGRAM
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11316625 Whirlpool Wire Harness
8W11384511-includeCORE Whirlpool W11384511 Refrigerator Control Panel + Core
8AW11384512 Whirlpool Console + Core
9W11310055 Whirlpool Wire Harness
