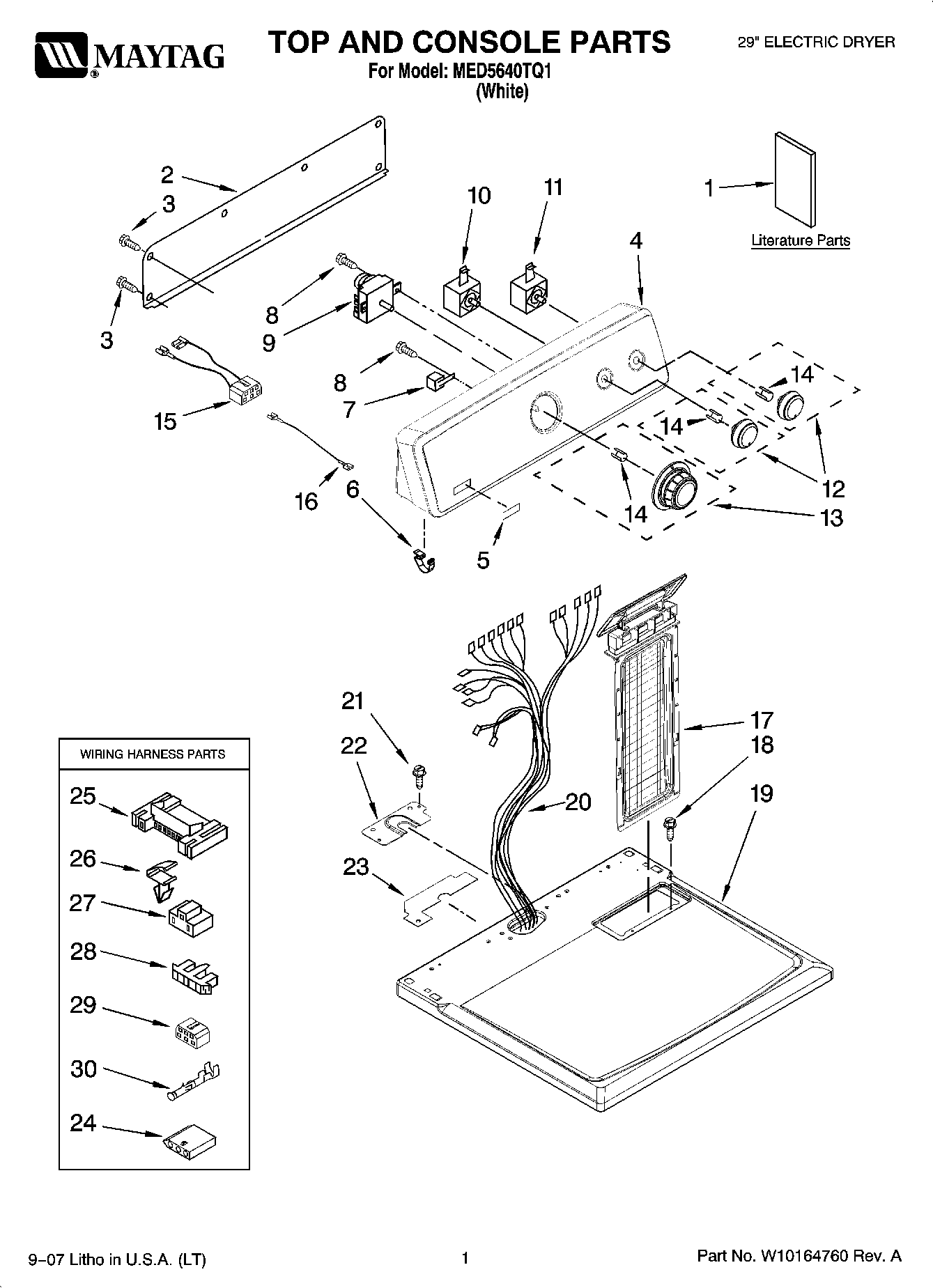

MED5640TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10088770
1	MAY 8576817
1	MAY W10089170
2	MAY W10112577
3	Screw
4	Console & Shell Assembly (Includes Items 5 & 6)
5	MAY W10112569
6	MAY 8312709
7	MAY 694419
8	MAY 8533971
9	MAY 8578906
10	MAY 3399640
11	MAY W10117655
12	Knob, Control (3)
13	Timer-Knob Assembly
14	CLIP, SPRING
15	MAY W10113107
16	WIRE, JUMPER (BUZZER)
17	Screen, Lint
18	SCREW
19	MAY W10112597
20	MAY W10110991
21	Screw, 8-18 x 3/4
22	MAY W10112578
23	Seal-Harness
24	MAY 3936144
25	CONNECTOR (MOTOR)
26	CLIP, HARNESS
27	Connector (PTS) Relay
28	Connector-Timer
29	Connector
30	Terminal
