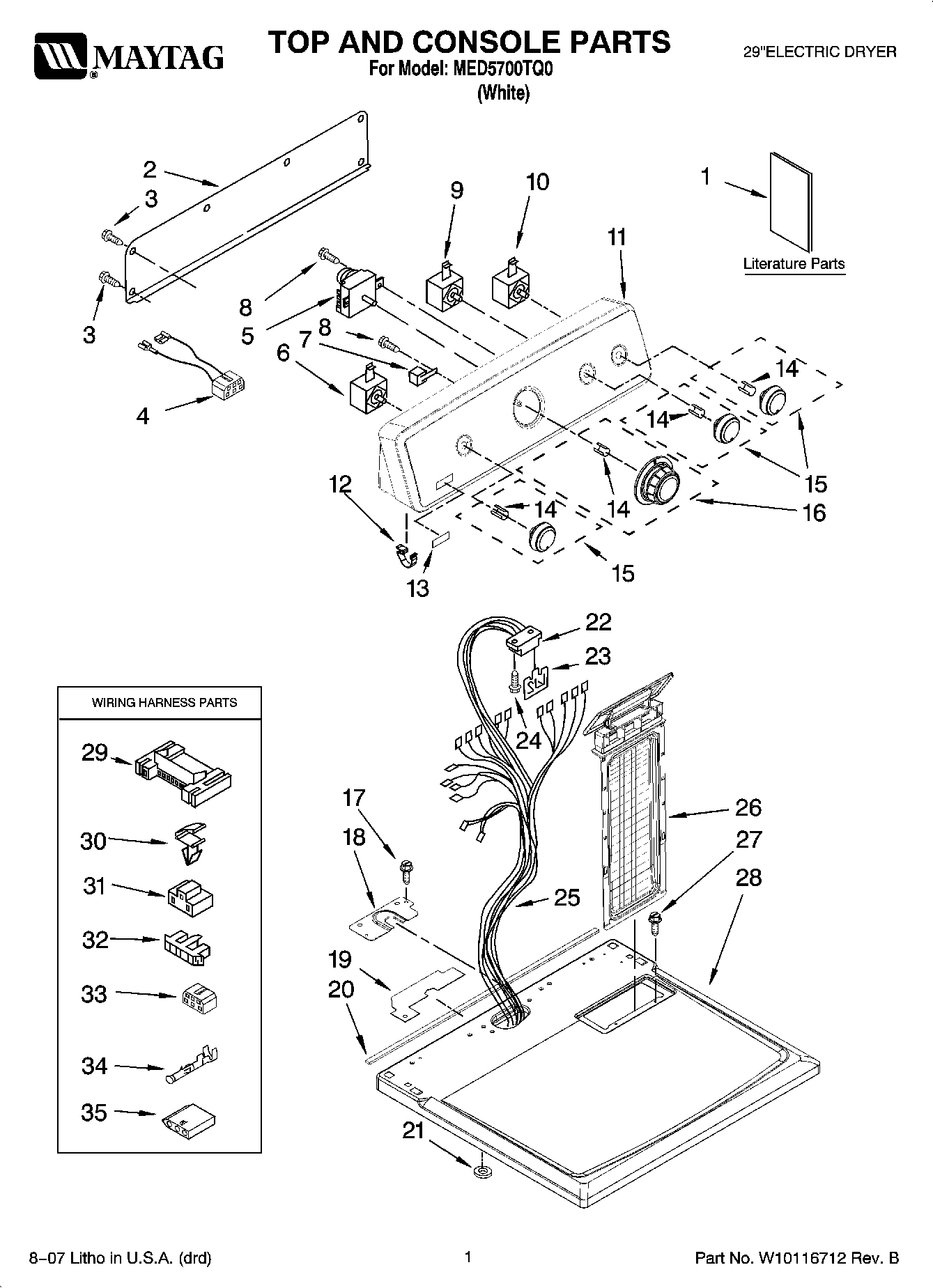

MED5700TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10088770
1	MAY W10089171
1	MAY 8578889
2	Panel, Rear
3	Screw
4	WIRE, JUMPER (BUZZER)
5	TIMER ASSEMBLY (60 HZ.)
6	MAY 3405156
7	MAY 694419
8	MAY 8533971
9	MAY 8578354
10	MAY W10117655
11	Console & Shell Assembly (Includes Items 12 & 13)
12	MAY 8312709
13	MAY W10112569
14	CLIP, SPRING
15	Knob, Control (3)
16	Timer-Knob Assembly
17	Screw, 8-18 x 3/4
18	MAY 8565981
19	MAY W10118608
20	Seal, Foam Console Bracket
21	Washer (Top/Chute)
22	MAY 3391885
23	MAY 8558178
24	SCREW
25	MAY W10113070
26	Screen, Lint
27	SCREW
28	MAY W10112599
29	CONNECTOR (MOTOR)
30	CLIP, HARNESS
31	Connector (PTS) Relay
32	Connector-Timer
33	Connector
34	Terminal
35	MAY 3936144
