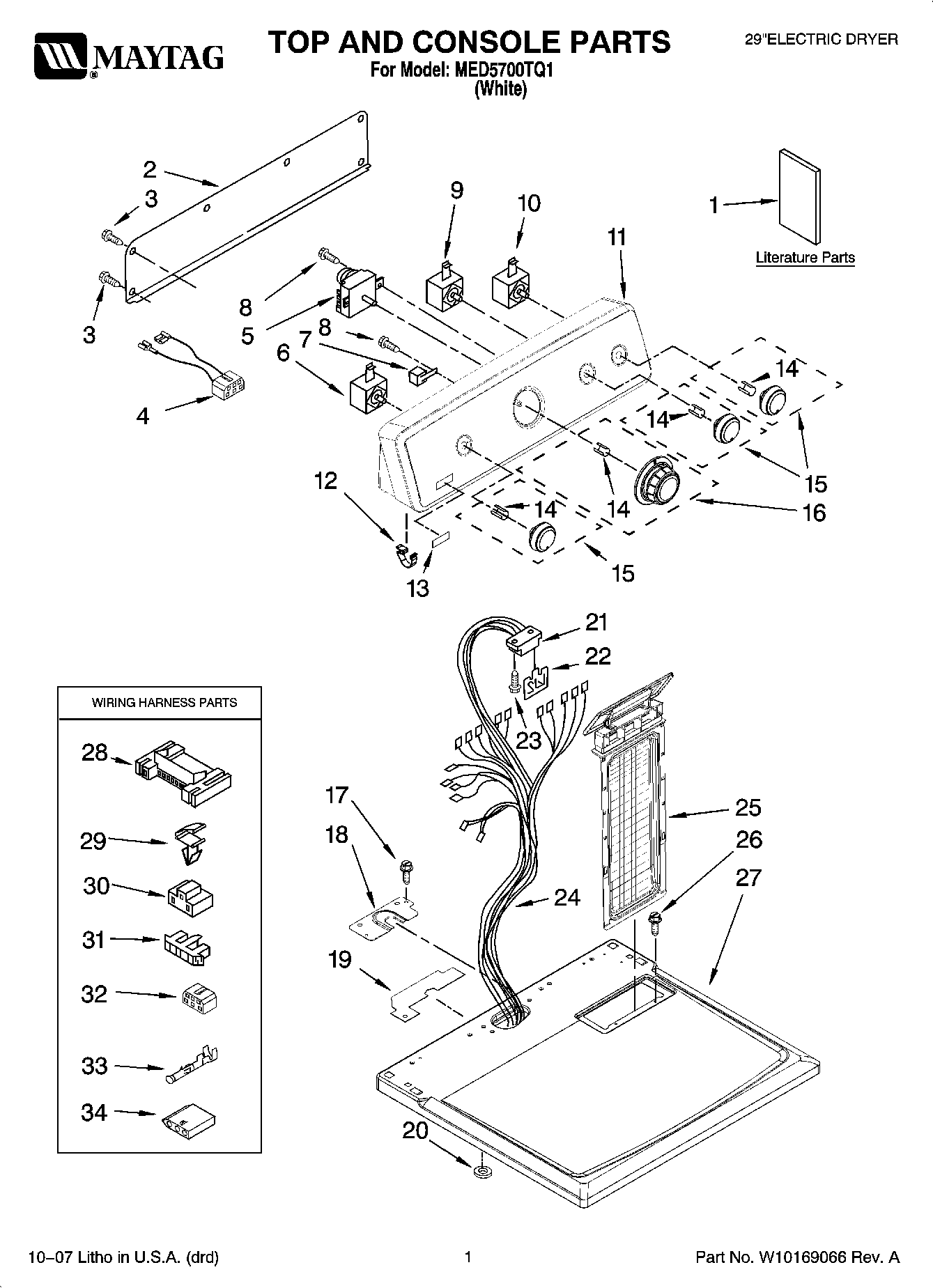

MED5700TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10089171
1	MAY W10088770
1	MAY 8578889
2	MAY W10112577
3	Screw
4	WIRE, JUMPER (BUZZER)
5	TIMER ASSEMBLY (60 HZ.)
6	MAY 3405156
7	MAY 694419
8	MAY 8533971
9	MAY 8578354
10	MAY W10117655
11	Console & Shell Assembly (Includes Items 12 & 13)
12	MAY 8312709
13	MAY W10112569
14	CLIP, SPRING
15	Knob, Control (3)
16	Timer-Knob Assembly
17	Screw, 8-18 x 3/4
18	MAY W10112578
19	Seal-Harness
20	Washer (Top/Chute)
21	MAY 3391885
22	MAY 8558178
23	SCREW
24	MAY W10110993
25	Screen, Lint
26	SCREW
27	MAY W10112599
28	CONNECTOR (MOTOR)
29	CLIP, HARNESS
30	Connector (PTS) Relay
31	Connector-Timer
32	Connector
33	Terminal
34	MAY 3936144
