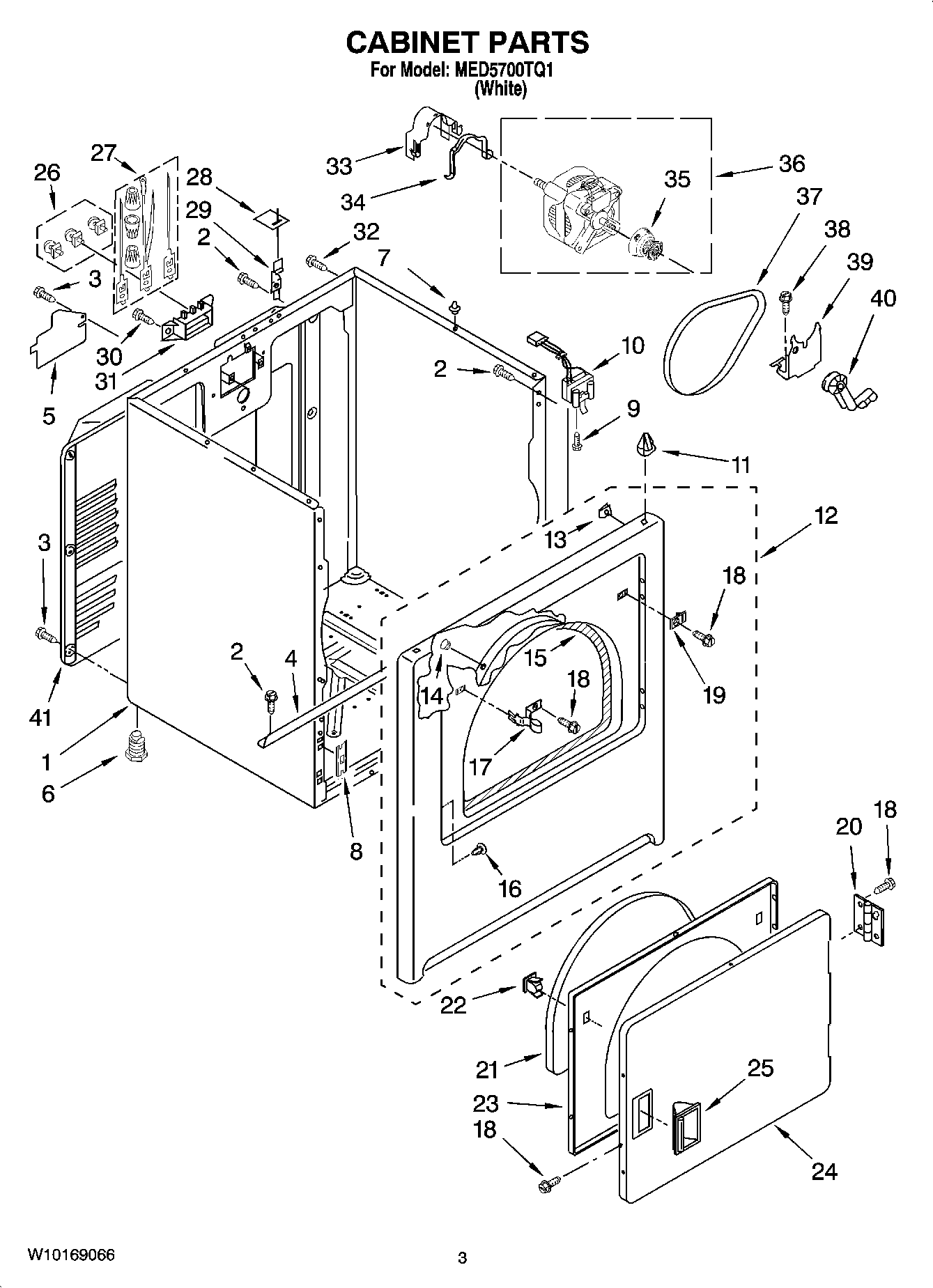

MED5700TQ1 02 – CABINET PARTS

Products

Position	Product
1	CABINET (WHITE)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	MAY 279810
6	MAY 3392100
7	Locator-Top
8	MAY 3394083
9	SCREW
10	Switch, Door
11	Lock, Front Top (2)
12	Panel, Front (White)
13	Clip, Ground
14	Clip, Felt Pad
15	MAY 3406129
16	PLUG, HINGE HOLES
17	Strike, Door
18	MAY 342055
19	PLUG-STRIKE
20	HINGE AND PIN ASSEMBLY
21	MAY 3405246
22	DOOR CATCH ASSEMBLY
23	Door, Rear
24	DOOR FRONT
25	Handle, Door
26	MAY 279393
27	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
28	Pad, Top Hinge (2)
29	Hinge, Top
30	SCREW, 10-16 X 1/2
31	MAY 3397659
32	Screw, 8-18 x 5/8 (External Ground)
33	Clamp, Motor (With Shield)
34	MAY 660658
35	Pulley, Motor
36	MAY 8066206
37	MAY W10131364
38	BOLT
39	MAY 348780
40	IDLER ASSEMBLY
41	MAY 3396805
