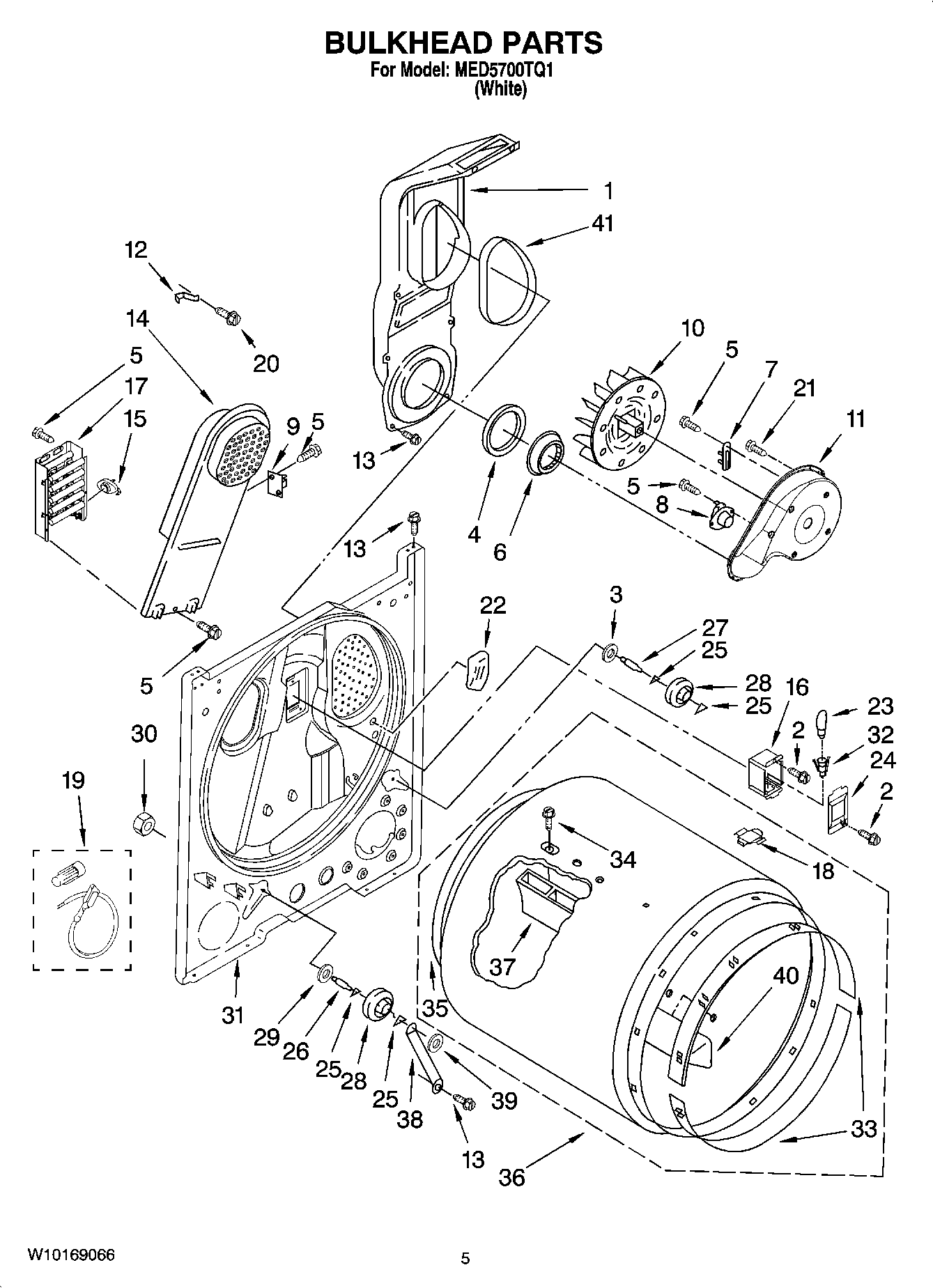

MED5700TQ1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	MAY 3406839
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
1	MAY 348368
2	MAY 487909
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	Fuse, Thermal (91 C)
8	MAY 8318268
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	MAY 3977373
17	MAY 3403585
18	Plug, Drum Hole
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	MAY 3976479
23	MAY 3406124
24	MAY 3402841
25	WASHER, TRI RING
26	MAY 3399506
27	MAY 3399507
28	MAY 3397590
29	WASHER
30	Nut, 3/8-16
31	MAY 3403414
32	MAY W10136369
33	Bearing, Ring
34	MAY W10109200
35	MAY 3406130
36	MAY 695587
37	BAFFLE, DRUM (LONG)
38	MAY 3976434
39	NUT, PUSH ON
40	BAFFLE, DRUM (SHORT)
41	MAY 339956
