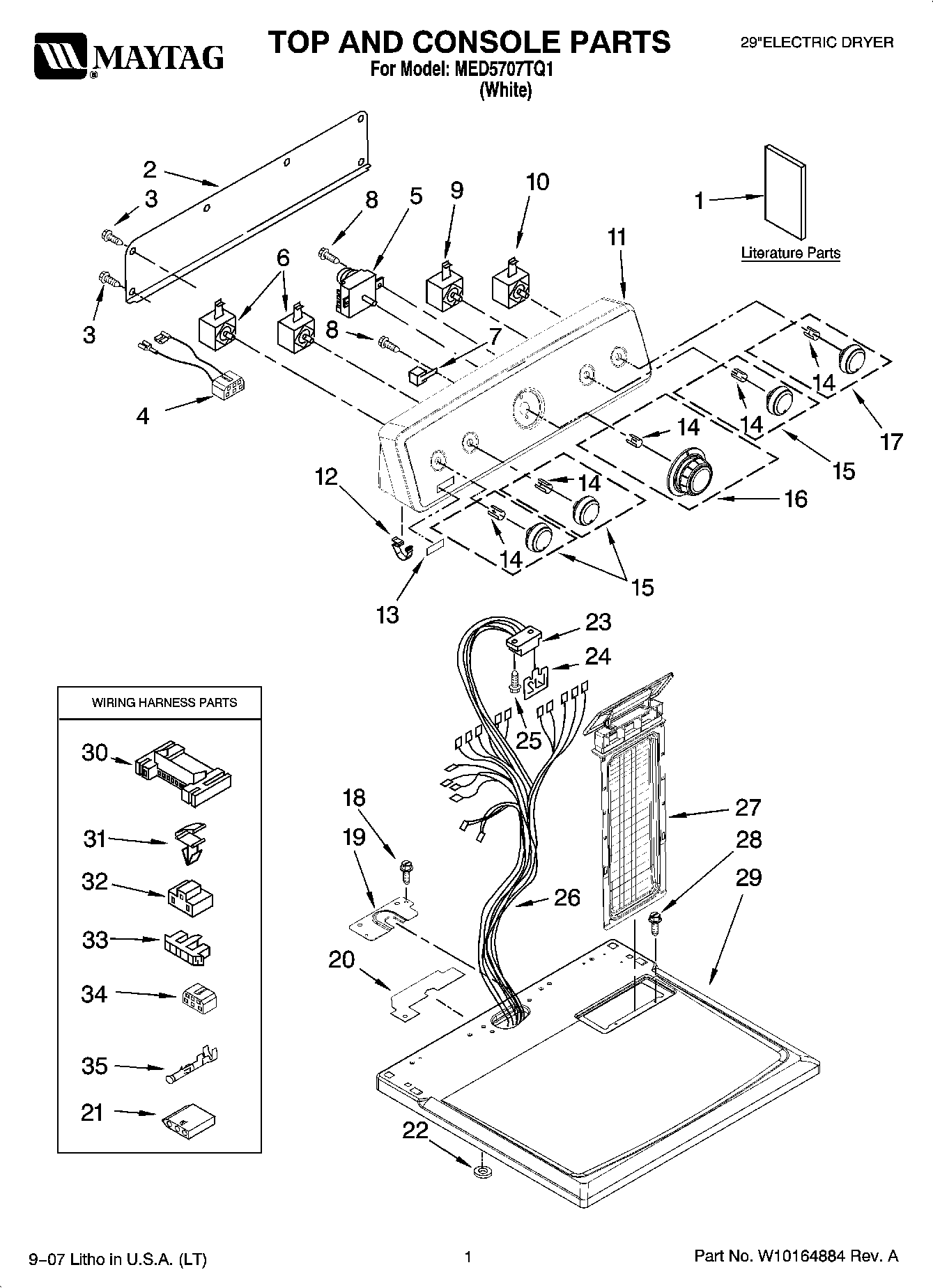

MED5707TQ1 01 – TOP AND CONSOLE PARTS

MED5707TQ1 01 – TOP AND CONSOLE PARTS

Written by

in

MED5707TQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10089177
1MAY W10124168
1MAY W10088770
2MAY W10112577
3Screw
4MAY W10124166
5TIMER ASSEMBLY (60 HZ.)
6MAY 3405156
7MAY 694419
8MAY 8533971
9MAY 8578354
10Switch, Push-To-Start
11Control & Console Panel Assembly (Includes Illus. 27)
12MAY 8312709
13MAY W10112589
14CLIP, SPRING
15Knob, Control (3)
16MAY W10112584
17MAY W10112586
18Screw, 8-18 x 3/4
19MAY W10112578
20Seal-Harness
21MAY 3936144
22Washer (Top/Chute)
23MAY 3391885
24MAY 8558178
25SCREW
26MAY W10110993
27Screen, Lint
28SCREW
29MAY W10112599
30CONNECTOR (MOTOR)
31CLIP, HARNESS
32Connector (PTS) Relay
33Connector-Timer
34Connector
35Terminal
