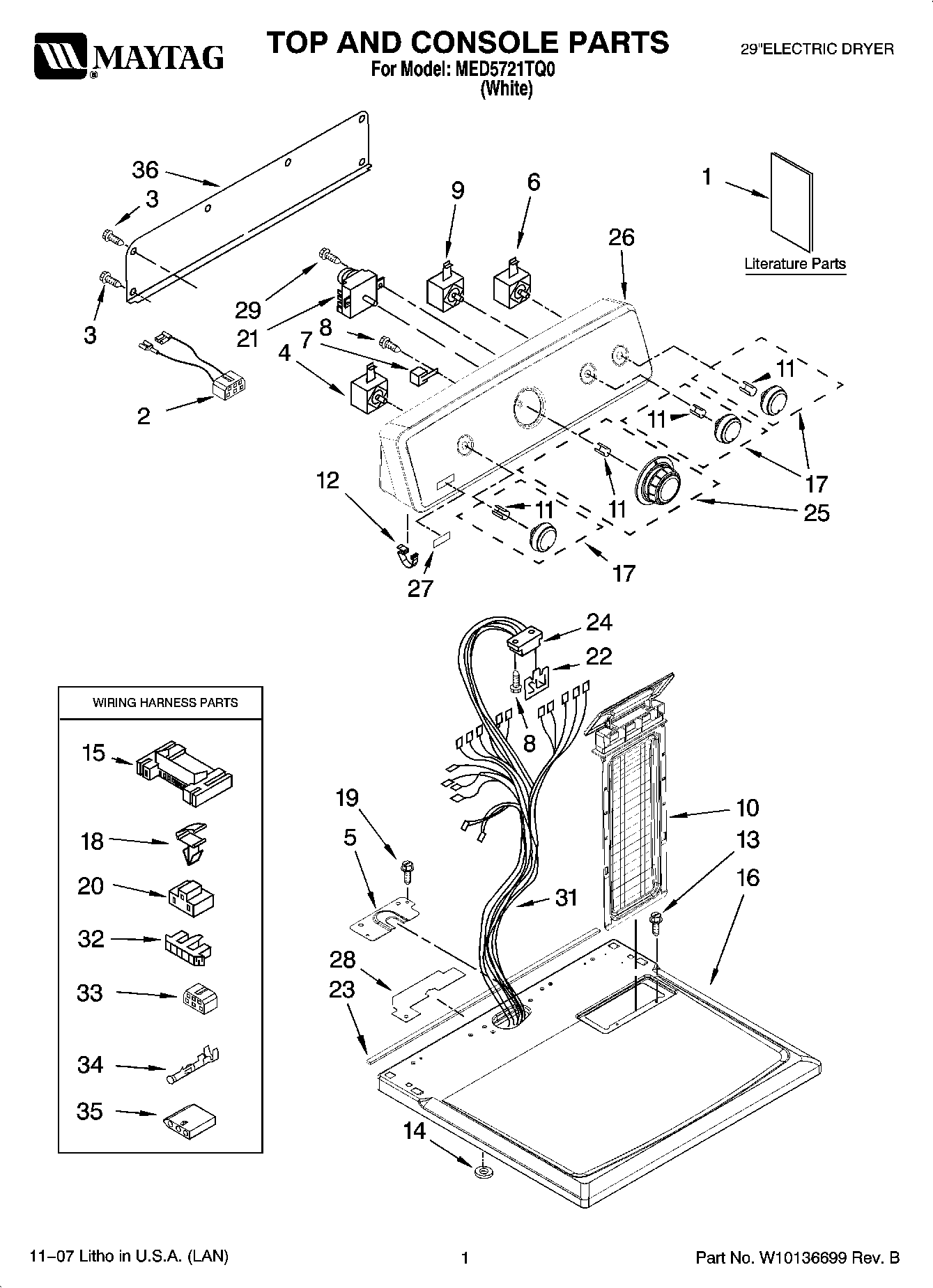

MED5721TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10150608
1	MAY W10150648
1	MAY 8578889
2	WIRE, JUMPER (BUZZER)
3	Screw
4	MAY 3405156
5	MAY 8565981
6	MAY W10117655
7	MAY 694419
8	SCREW
9	MAY 8578352
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8312709
13	SCREW
14	Washer (Top/Chute)
15	CONNECTOR (MOTOR)
16	MAY W10112599
17	Knob, Control (3)
18	CLIP, HARNESS
19	Screw, 8-18 x 3/4
20	Connector (PTS) Relay
21	TIMER ASSEMBLY (60 HZ.)
22	MAY 8558178
23	Seal, Foam Console Bracket
24	MAY 3391885
25	Timer-Knob Assembly
26	MAY W10086726
27	MAY W10112569
28	MAY W10118608
29	MAY 8533971
31	MAY W10113070
32	Connector-Timer
33	Connector
34	Terminal
35	MAY 3936144
36	Panel, Rear
