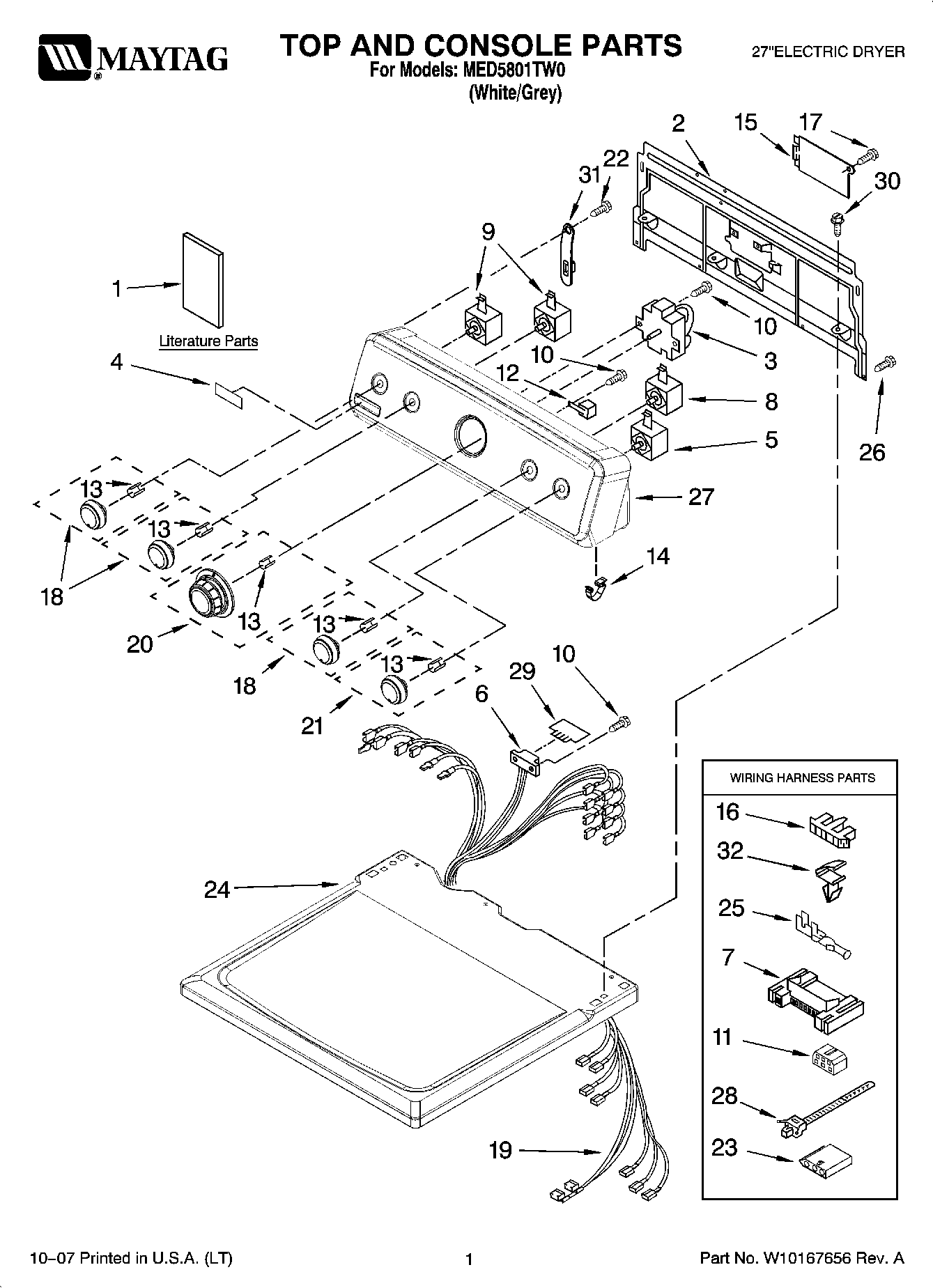

MED5801TW0 01 – TOP AND CONSOLE PARTS

MED5801TW0 01 – TOP AND CONSOLE PARTS

Written by

in

MED5801TW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10151000
1MAY W10155107
1MAY W10155113
2MAY 8317305
3TIMER ASSEMBLY (60 HZ.)
4MAY W10112569
5Switch, Push-To-Start
6MAY 3391885
7CONNECTOR (MOTOR)
8MAY 8578354
9MAY 3405156
10MAY 8533971
11Connector
12MAY 694419
13CLIP, SPRING
14MAY 8312709
15MAY 8576583
16Connector-Timer
17Screw, 8-18 x 3/8
18Knob, Control (3)
19MAY W10150995
20Knob, Timer
21MAY W10110037
22SCREW,8-18 X 3/8
23MAY 3936144
24MAY 8274462
25Terminal
26Screw
27MAY W10112601
28MAY 3391018
29MAY 8558178
30SCREW
31Strap, Console
32CLIP, HARNESS
