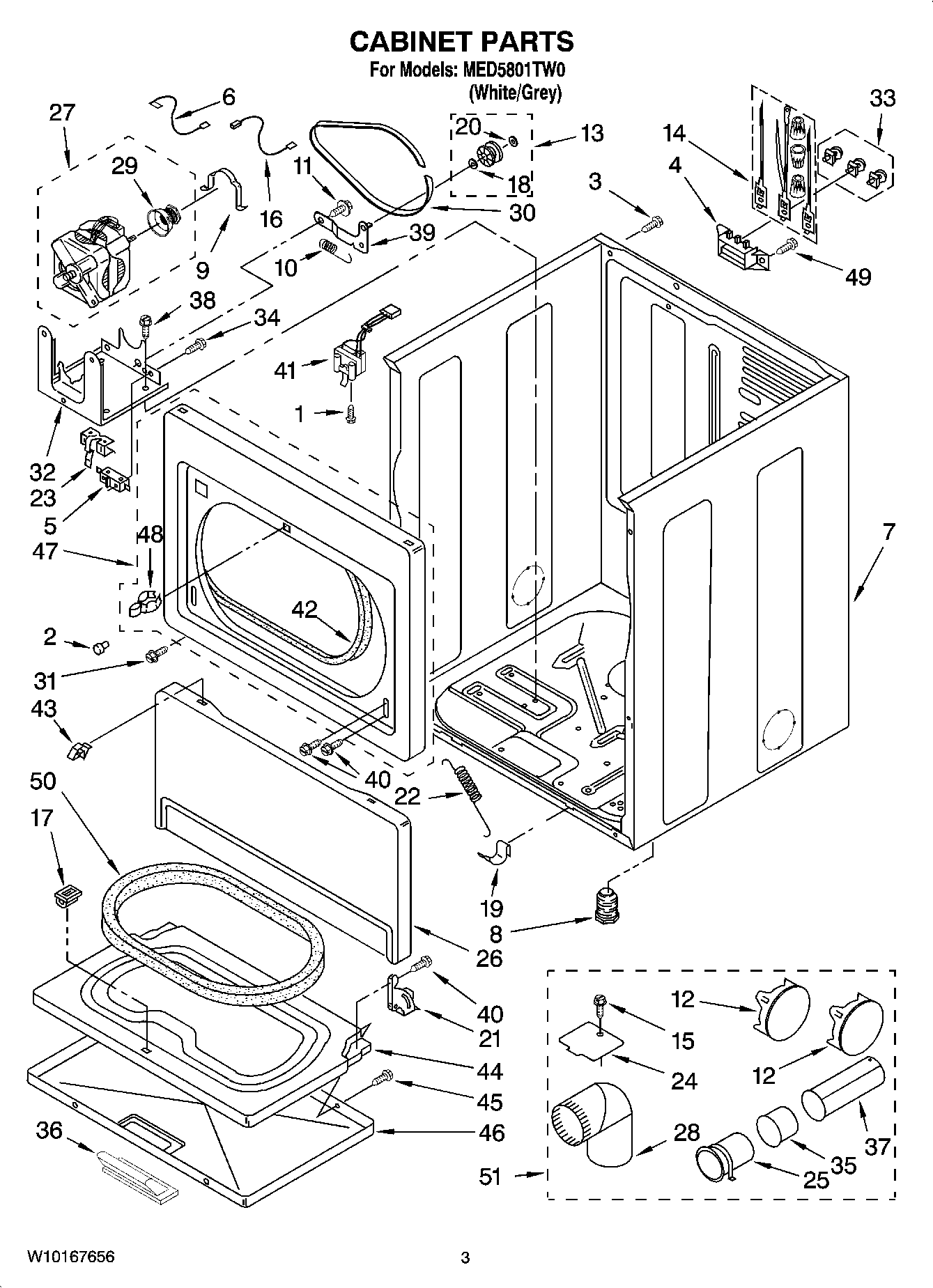

MED5801TW0 02 – CABINET PARTS

Products

Position	Product
1	SCREW
2	BUMPER
3	MAY 8533974
4	MAY 3397659
5	MAY 3394881
6	Wire, Jumper (Broken Belt Switch)
7	MAY 8310656
8	MAY 279810
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 3390646
16	MAY 3394081
17	Catch, Door
18	MAY 233520
19	Clip (2)
20	MAY W10121334
21	Hinge & Pin Assembly (2) (Hinge (L.H.))
21	Hinge & Pin Assembly (2) (Hinge (R.H.))
22	Spring-Door
23	MAY 8066120
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	Toe Panel (Includes Item. 2) (White)
27	Motor Assembly 60 HZ.
28	MAY 49026
29	Pulley 60 HZ.
30	MAY 3387610
31	SCREW
32	MAY 3387118
33	MAY 279393
34	Screw, 6-20 x 1-1/16
35	MAY 8563750
36	Handle, Door (White)
37	PIPE, EXHAUST (LONG)
38	SCREW
39	MAY 3388674
40	SCREW
41	Switch, Door
42	MAY 3387242
43	RETAINER
44	MAY 697655
45	MAY 694091
46	MAY 697221
47	Upper Front Panel
48	MAY 696144
49	SCREW, 10-16 X 1/2
50	MAY 3390736
51	MAY 279818
