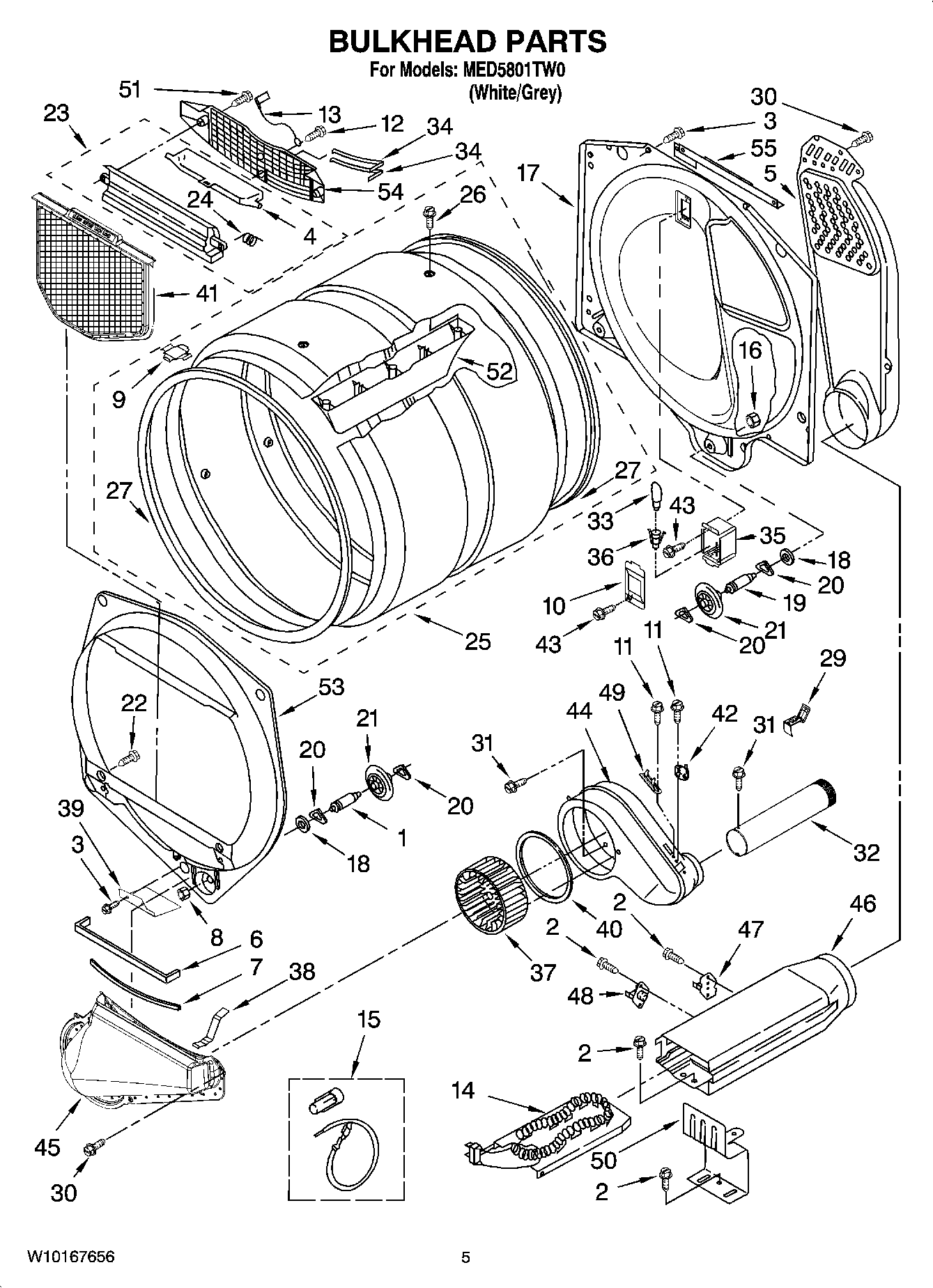

MED5801TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	Dry Rack
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
1	MAY 8575324
2	SCREW,8-18 X 3/8
3	SCREW
4	MAY 3394984
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	Plug, Drum Hole
10	MAY 3402841
12	MAY 359625
13	Wire
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	Screw, 8-18 x 1/2
23	MAY 3394985
24	Spring, Lint Screen Door
25	Complete Drum Assembly
26	MAY W10109200
27	MAY 697694
29	CLIP, EXHAUST
30	MAY 8533971
31	Screw
32	PIPE, EXHAUST
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 3977373
36	MAY W10136369
37	MAY 697772
38	CLIP-SPRING
39	MAY W10128629
40	SEAL, PLATE COVER
41	MAY 8066170
42	MAY 8318268
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	HEATER BOX,
47	Thermal Cutoff (Includes Illus. 48)
48	Thermostat 250 F (122 C)
49	Fuse, Thermal (91 C)
50	MAY 8066099
51	SCREW
52	BAFFLE, DRUM
53	BULKHEAD, FRONT
54	MAY 8299979
55	MAY 8571651
