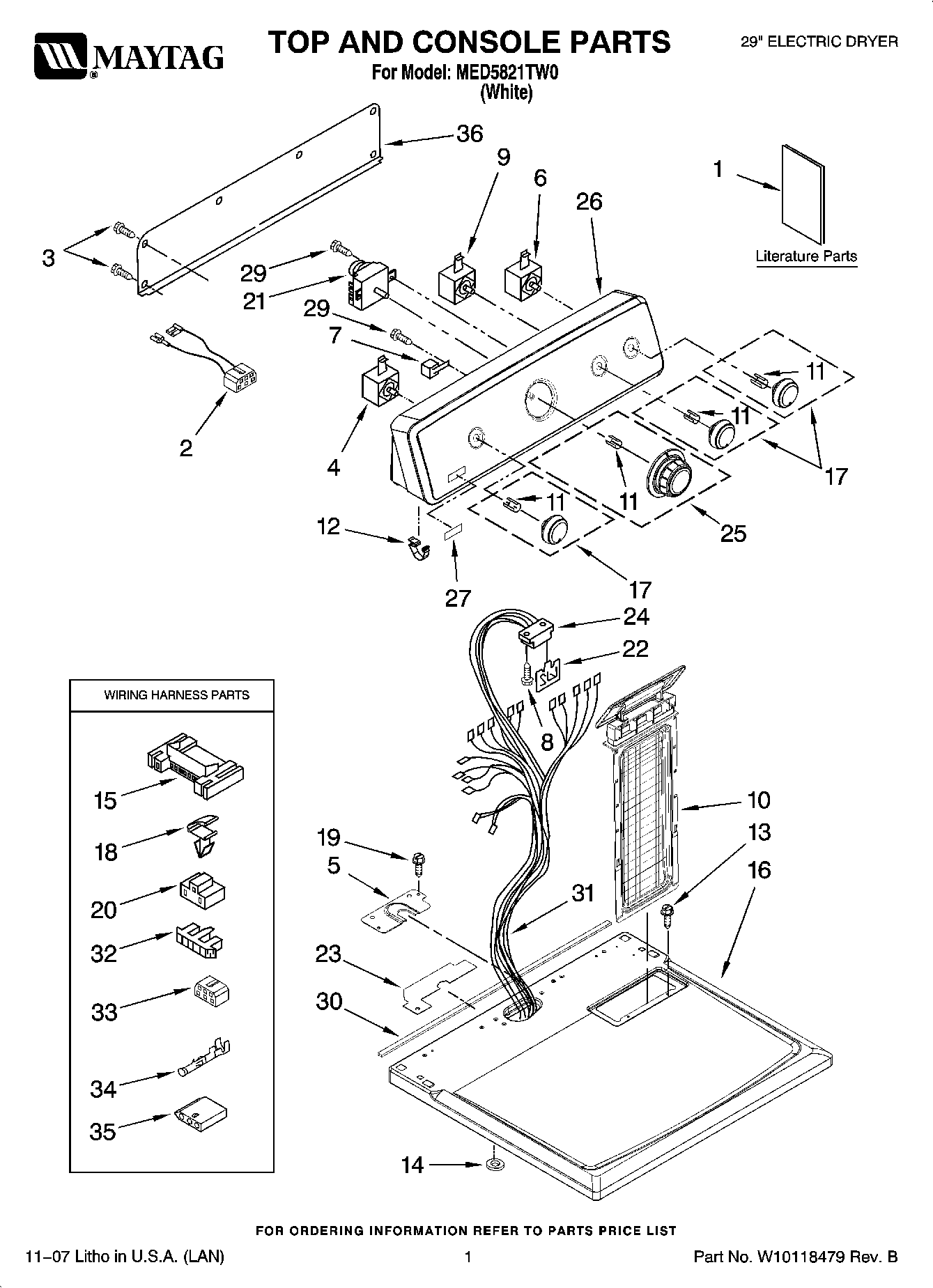

MED5821TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10150648
1	MAY W10150608
1	MAY 8576803
2	WIRE, JUMPER (BUZZER)
3	Screw
4	Switch Rotary (Twist Mount)
5	MAY 8565981
6	MAY W10117655
7	MAY 694419
8	SCREW
9	MAY 8578352
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8312709
13	SCREW
14	Washer (Top/Chute)
15	CONNECTOR (MOTOR)
16	MAY W10112599
17	Knob, Control (3)
18	CLIP, HARNESS
19	Screw, 8-18 x 3/4
20	Connector (PTS) Relay
21	MAY 3406725
22	MAY 8558178
23	MAY W10118608
24	MAY 3391885
25	Knob, Timer
26	MAY W10086714
27	MAY W10112569
29	MAY 8533971
30	Seal, Foam Console Bracket
31	MAY W10113071
32	Connector-Timer
33	Connector
34	Terminal
35	MAY 3936144
36	Panel, Rear
