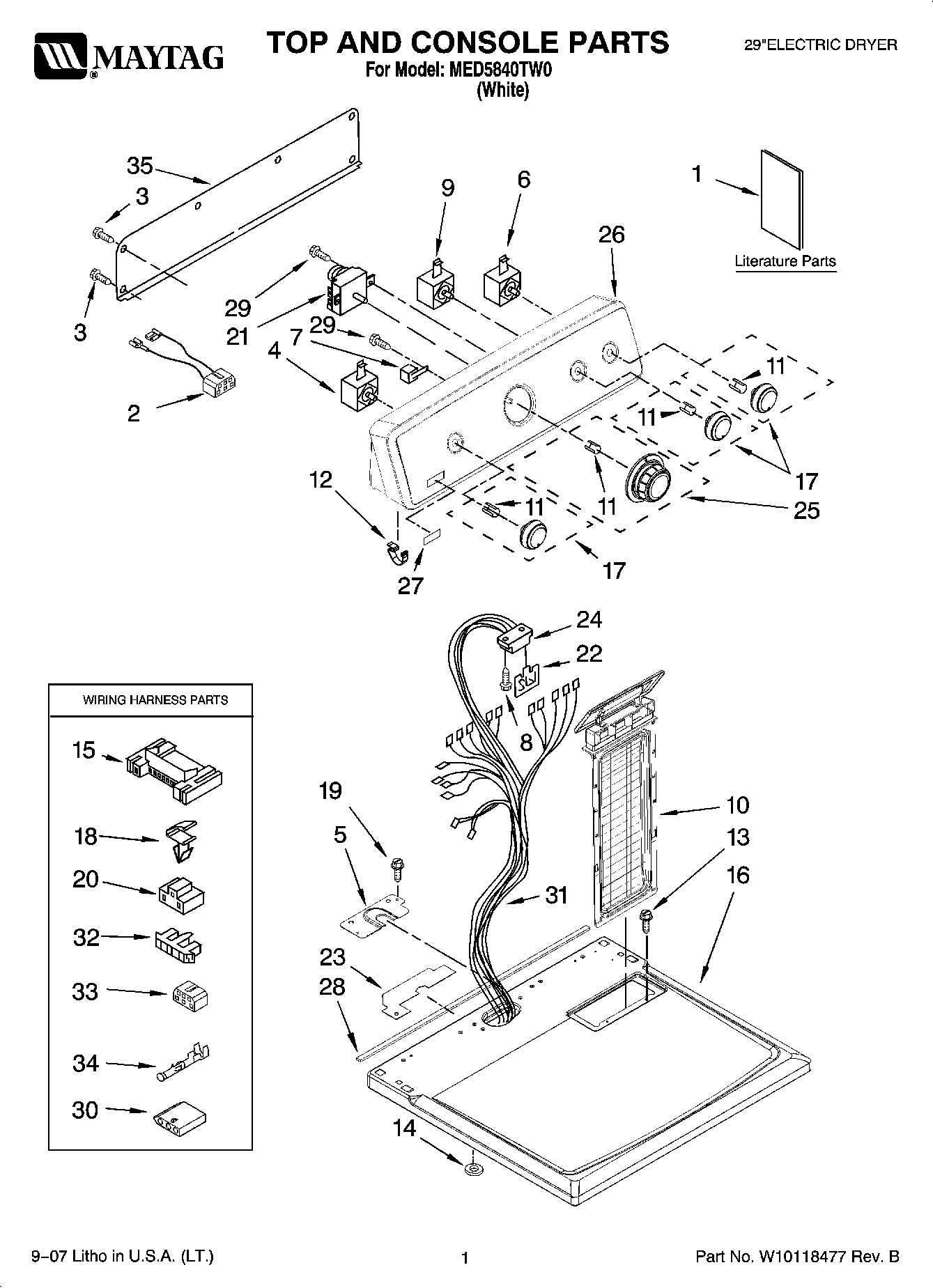

MED5840TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8576803
1	MAY W10089171
1	MAY W10088770
2	WIRE, JUMPER (BUZZER)
3	Screw
4	Switch Rotary (Twist Mount)
5	MAY 8565981
6	MAY W10117655
7	MAY 694419
8	SCREW
9	MAY 8578352
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8312709
13	SCREW
14	Washer (Top/Chute)
15	CONNECTOR (MOTOR)
16	MAY W10112599
17	Knob, Control (3)
18	CLIP, HARNESS
19	Screw, 8-18 x 3/4
20	Connector (PTS) Relay
21	MAY 3406725
22	MAY 8558178
23	MAY W10118608
24	MAY 3391885
25	Knob, Timer
26	Console & Shell Assembly (Includes Items 12 & 13)
27	MAY W10112569
28	Seal, Foam Console Bracket
29	MAY 8533971
30	MAY 3936144
31	WP67003405 Whirlpool Pivot Block
32	Connector-Timer
33	Connector
34	Terminal
35	Panel, Rear
