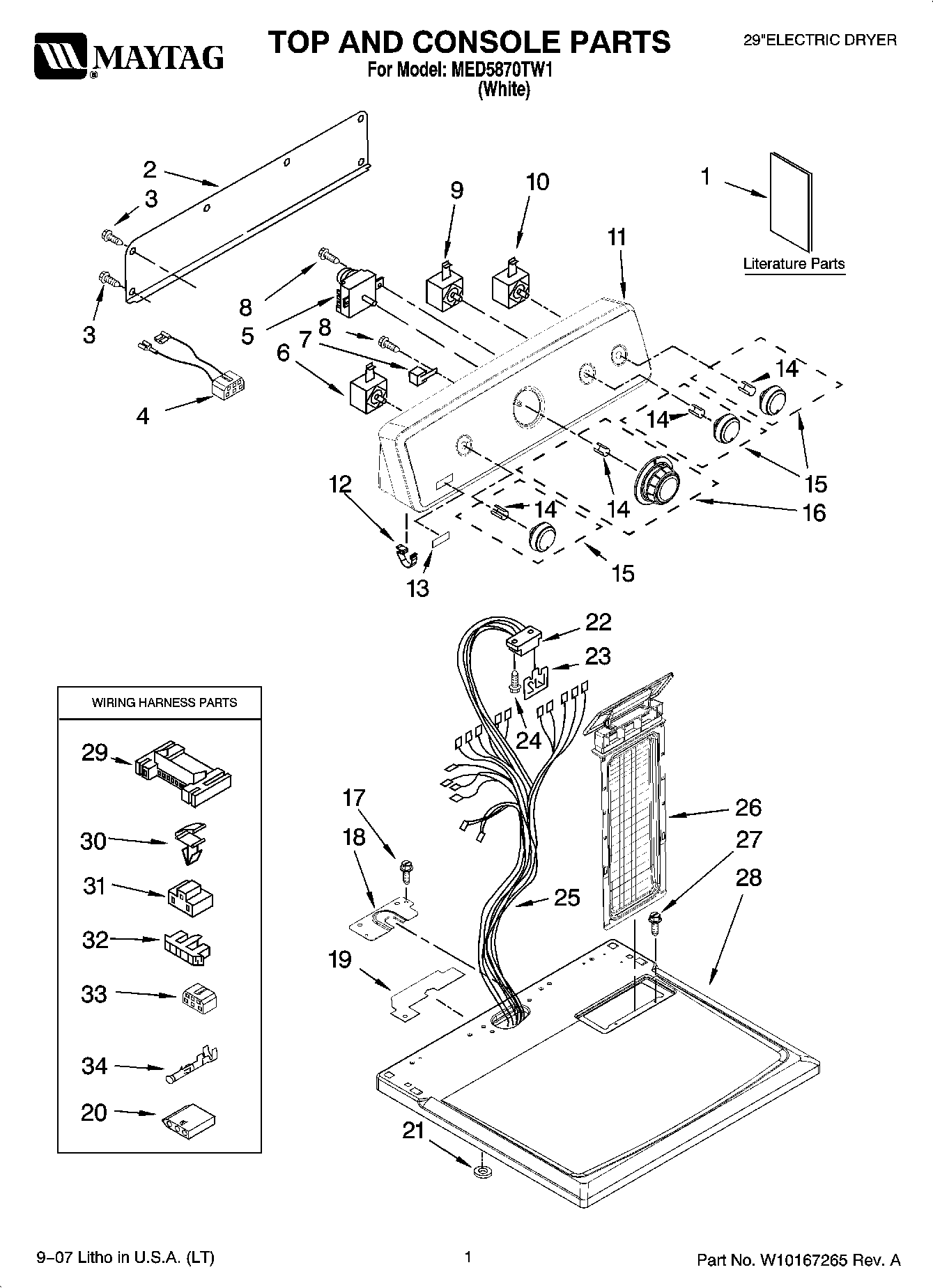

MED5870TW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY 8578889
1MAY W10088770
1MAY W10089171
2MAY W10112577
3Screw
4WIRE, JUMPER (BUZZER)
5TIMER ASSEMBLY (60 HZ.)
6MAY 3405156
7MAY 694419
8MAY 8533971
9MAY 8578352
10MAY W10117655
11Console & Shell Assembly (Includes Items 12 & 13)
12MAY 8312709
13MAY W10112569
14CLIP, SPRING
15Knob, Control (3)
16Knob, Timer
17Screw, 8-18 x 3/4
18MAY W10112578
19Seal-Harness
20MAY 3936144
21Washer (Top/Chute)
22MAY 3391885
23MAY 8558178
24SCREW
25MAY W10110993
26Screen, Lint
27SCREW
28MAY W10112599
29CONNECTOR (MOTOR)
30CLIP, HARNESS
31Connector (PTS) Relay
32Connector-Timer
33Connector
34Terminal
