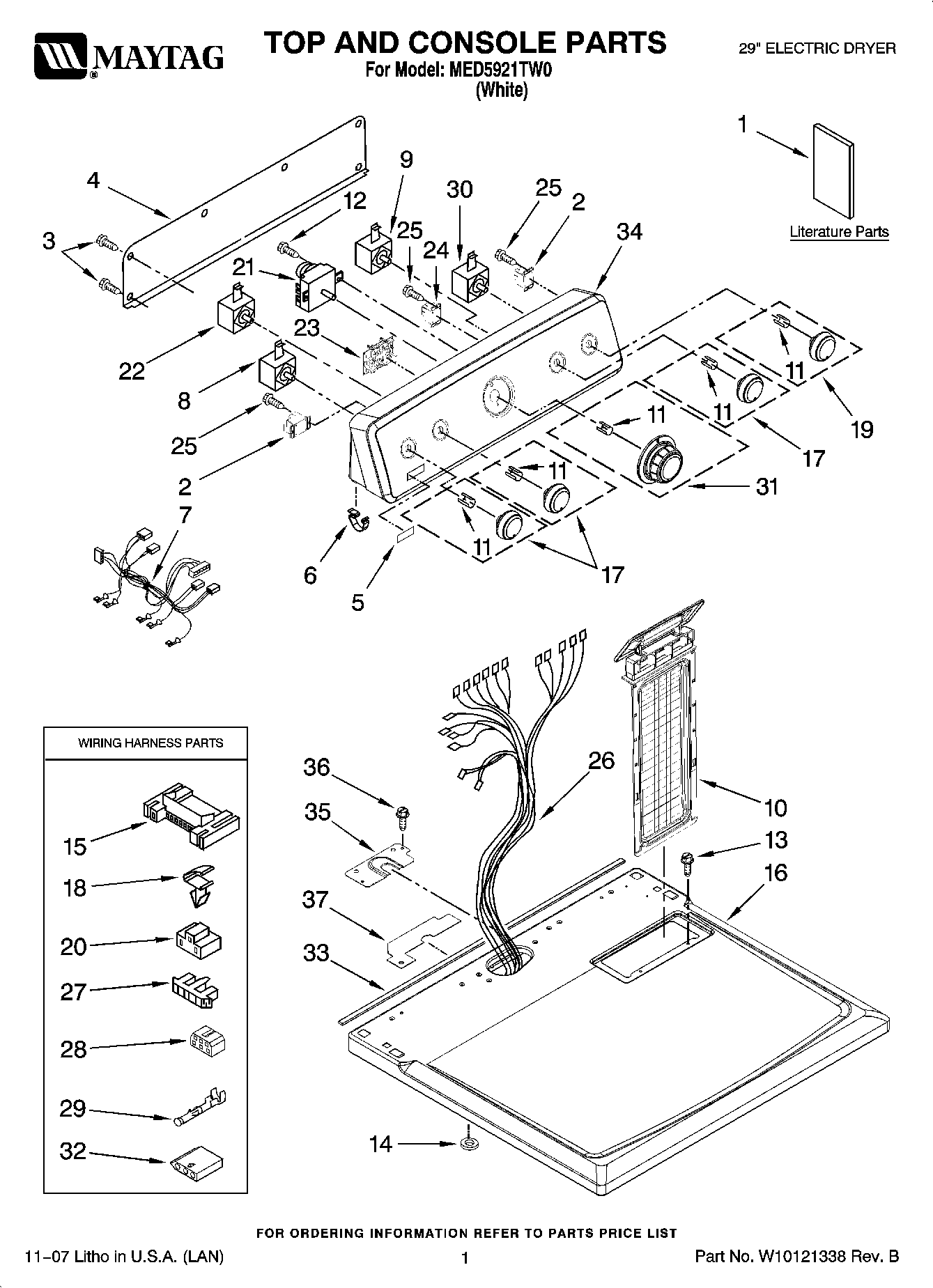

MED5921TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10151548
1	Sheet, Tech
1	MAY W10151549
1	MAY W10150608
2	Relay, Heater
3	Screw
4	Panel, Rear
5	MAY W10112569
6	MAY 8312709
7	Harness, Wiring Center Control
8	Switch, Wrinkle Guard
9	MAY 8299970
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	Washer (Top/Chute)
15	CONNECTOR (MOTOR)
16	MAY W10112599
17	Knob, Control (3)
18	CLIP, HARNESS
19	MAY W10110037
20	Connector (PTS) Relay
21	Timer, 60 Hz.
22	Switch, End Of Cycle
23	MAY W10116567
24	Relay, Heater
25	Screw,8-18 x 11/32
26	MAY W10108380
27	Connector-Timer
28	Connector
29	Terminal
30	MAY 3977456
31	Knob, Timer
32	MAY 3936144
33	Seal, Foam Console Bracket
34	MAY W10086720
35	MAY 8565981
36	Screw, 8-18 x 3/4
37	MAY W10118608
