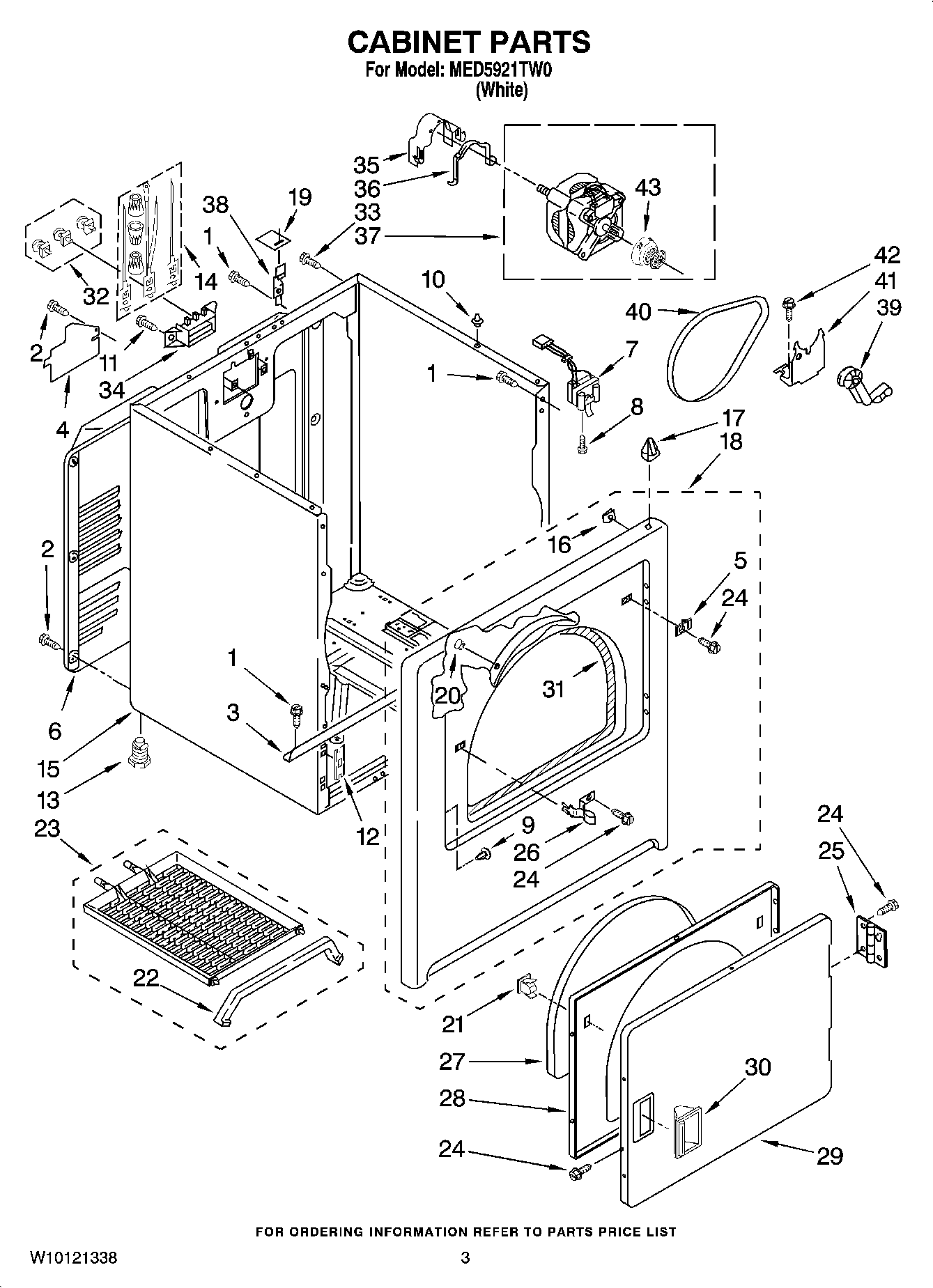

MED5921TW0 02 – CABINET PARTS

Products

Position	Product
1	SCREW
2	Screw
3	MAY 8541400
4	MAY 3396795
5	PLUG-STRIKE
6	MAY 3396805
7	Switch, Door
8	SCREW
9	PLUG, HINGE HOLES
10	Lock, Front Top (2)
11	SCREW, 10-16 X 1/2
12	MAY 3394083
13	MAY 3392100
13	MAY 279810
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	CABINET (WHITE)
16	Clip, Ground
17	Locator-Top
18	Panel, Front (White)
19	Pad, Top Hinge (2)
20	Clip, Felt Pad
21	DOOR CATCH ASSEMBLY
22	MAY 692989
23	MAY 3406839
24	MAY 342055
25	HINGE AND PIN ASSEMBLY
26	Strike, Door
27	MAY 3405246
28	Door, Rear
29	DOOR FRONT
30	Handle, Door
31	MAY 3406129
32	MAY 279393
33	Screw, 8-18 x 5/8 (External Ground)
34	MAY 3397659
35	Clamp, Motor (With Shield)
36	MAY 660658
37	MAY 8066206
38	Hinge, Top
39	IDLER ASSEMBLY
40	MAY W10131364
41	MAY 348780
42	BOLT
43	Pulley, Motor
