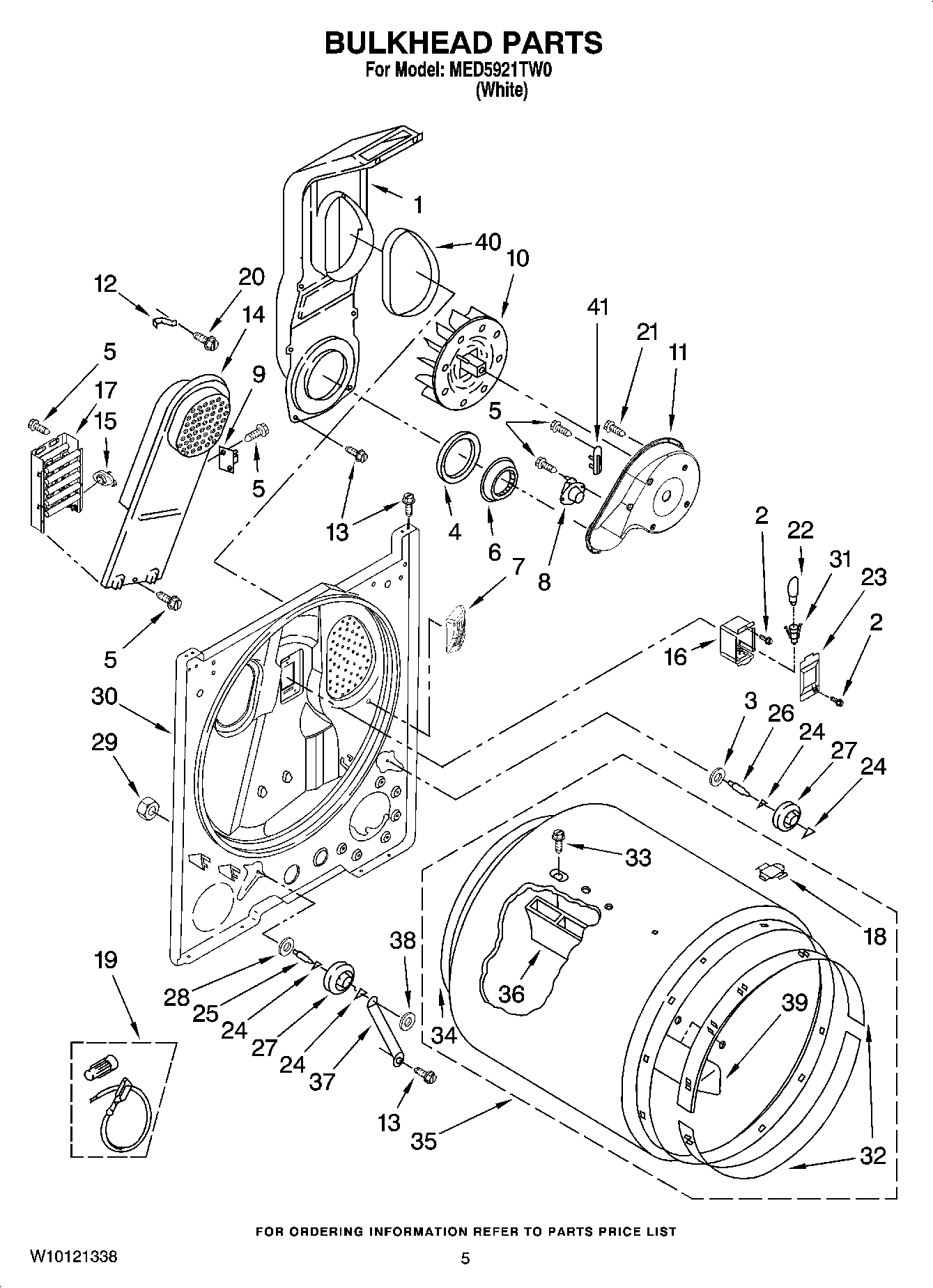

MED5921TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
1	MAY 348368
2	MAY 487909
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	MAY 3976479
8	THERMISTOR
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577231
12	CLIP HEATER BOX
13	SCREW
14	MAY 8541818
15	Thermostat, 140 F
16	MAY 3977373
17	MAY 3401338
18	Plug, Drum Hole
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	MAY 3406126
23	MAY 3402841
24	WASHER, TRI RING
25	MAY 3399506
26	MAY 3399507
27	MAY 3397590
28	WASHER
29	Nut, 3/8-16
30	MAY 3403414
31	MAY W10136369
32	Bearing, Ring
33	MAY W10109200
34	MAY 3406130
35	MAY 695587
36	BAFFLE, DRUM (LONG)
37	MAY 3976434
38	NUT, PUSH ON
39	BAFFLE, DRUM (SHORT)
40	MAY 339956
41	THERMAL FUSE (91C)
