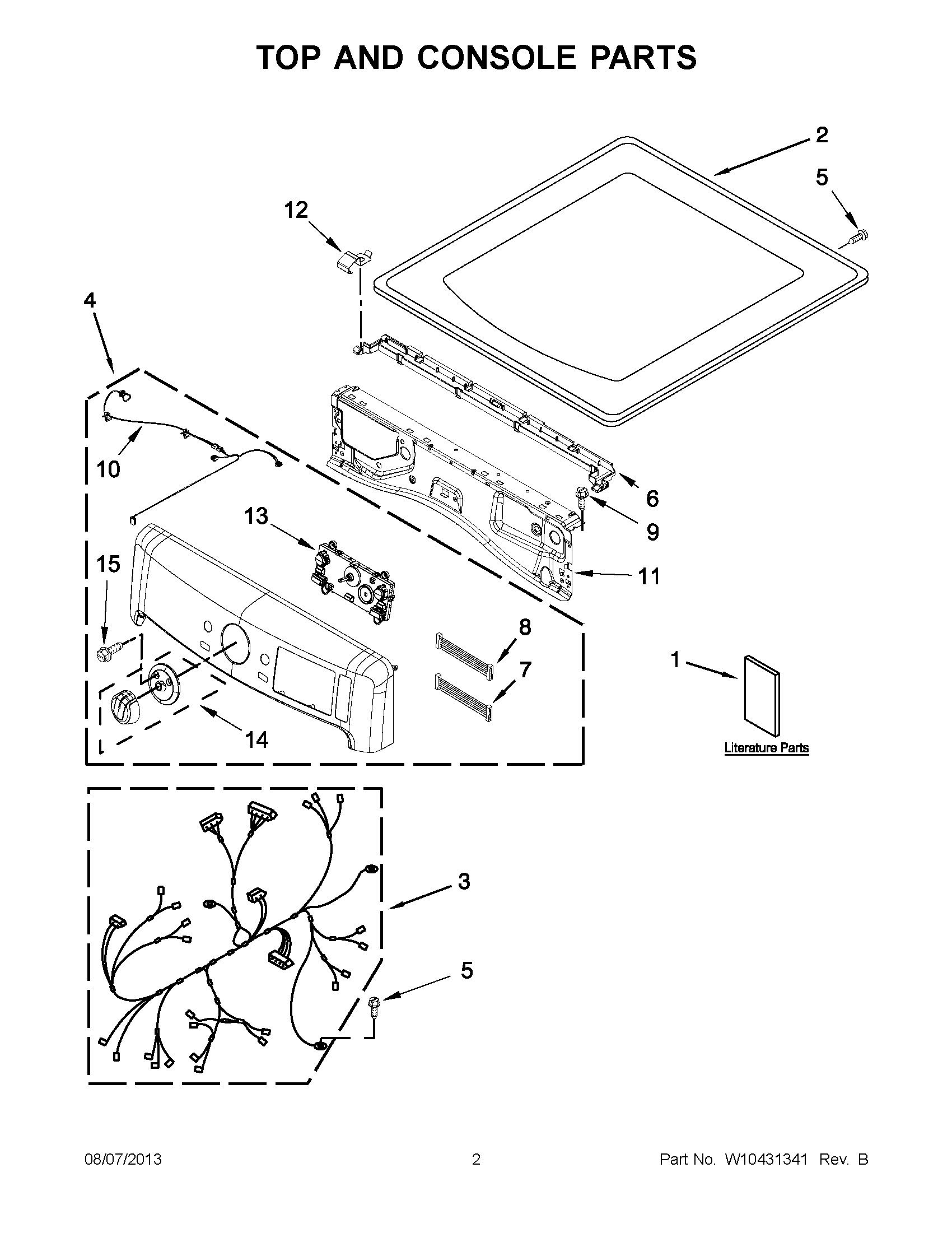

MED6000XR1 02 – TOP AND CONSOLE PARTS

MED6000XR1 02 – TOP AND CONSOLE PARTS

Written by

in

MED6000XR1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10423118
1MAY W10297008
1USE AND CARE GUIDE
1MAY W10316958
2MAY W10337792
2MAY W10301057
2MAY W10208383
3MAY W10355893
4MAY W10388470
4MAY W10388469
4MAY W10388468
5Screw
6MAY W10317570
7HARNESS, JUMPER
8HARNESS, JUMPER
9SCREW
10MAY W10267833
11MAY W10208198
12MAY W10317566
13UI, CENTER
14MAY W10514146
15MAY W10146359
