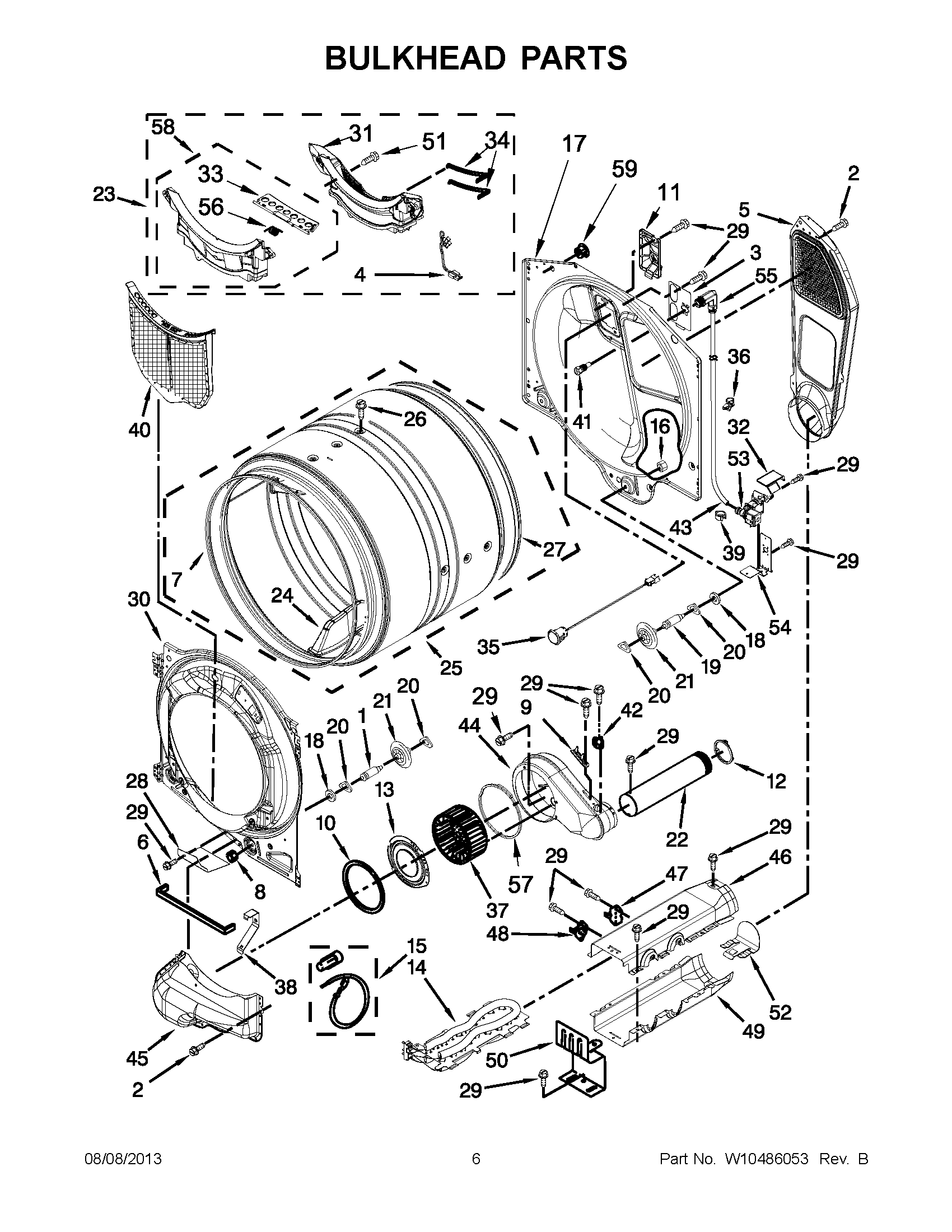

MED6000XR2 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	MAY W10249422
4	MAY W10298258
5	ASSEMBLY, AIR DUCT
6	MAY W10211950
7	MAY W10521122
8	NUT, HEX
9	Fuse, Thermal (91 C)
10	MAY W10211899
11	MAY W10208422
12	MAY W10344699
13	MAY W10211901
14	MAY 8544771
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10211946
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10342188
23	MAY W10219012
24	MAY W10280771
25	MAY W10541657
26	MAY W10219342
27	MAY W10521118
28	MAY W10128629
29	Screw
30	MAY W10211930
31	MAY W10211903
32	MAY W10530670
33	MAY W10219016
34	SENSOR, ELECTRODE
35	MAY W10422853
36	MAY 3391018
37	MAY W10211915
38	MAY W10414388
39	MAY W10044599
40	MAY W10370972
41	MAY W10277503
42	THERMISTOR
43	MAY W10348621
44	MAY W10211911
45	MAY W10211896
46	MAY 8544769
47	KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
48	MAY 8557403
49	MAY 8544770
50	MAY 8066099
51	SCREW
52	MAY 8544776
53	MAY W10505663
54	MAY W10510098
55	MAY W10347739
56	MAY W10219015
57	SEAL, PLATE COVER
58	MAY W10219013
59	MAY 8529007
