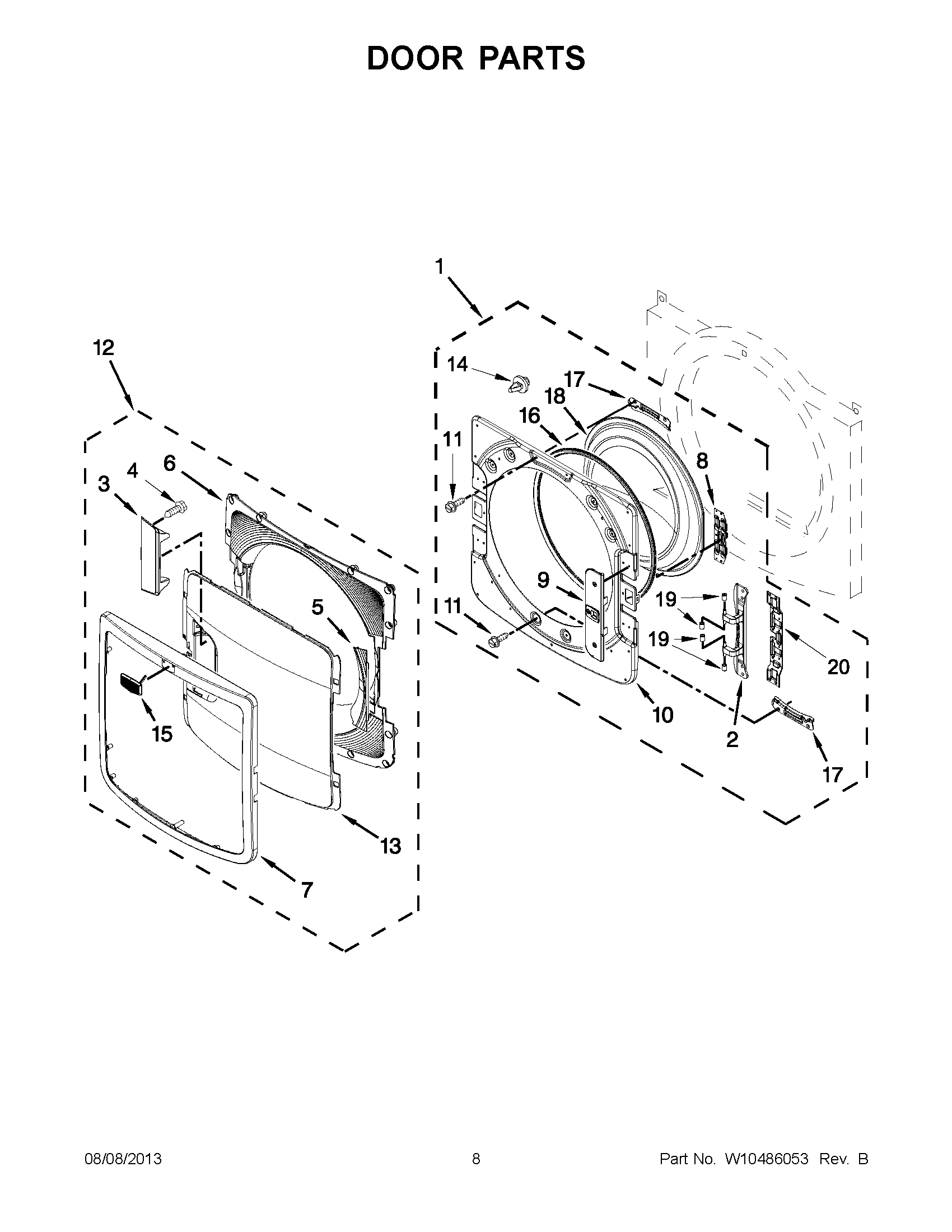

MED6000XR2 05 – DOOR PARTS

MED6000XR2 05 – DOOR PARTS

Written by

in

MED6000XR2 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	HINGE BASE
3	HANDLE, DOOR
4	Screw
5	PLUG, DOOR
6	DOOR, INTERMEDIATE
7	TRIM, DOOR
8	MAY W10208254
9	MAY W10272404
10	DOOR, INNER
11	MAY W10288126
12	OUTER DOOR ASSEMBLY
13	DOOR, OUTER SCREEN
14	MAY 8572266
15	BADGE (CHROME)
16	MAY W10329710
17	MAY W10208252
18	MAY W10208417
19	MAY W10208398
20	MAY W10208419
