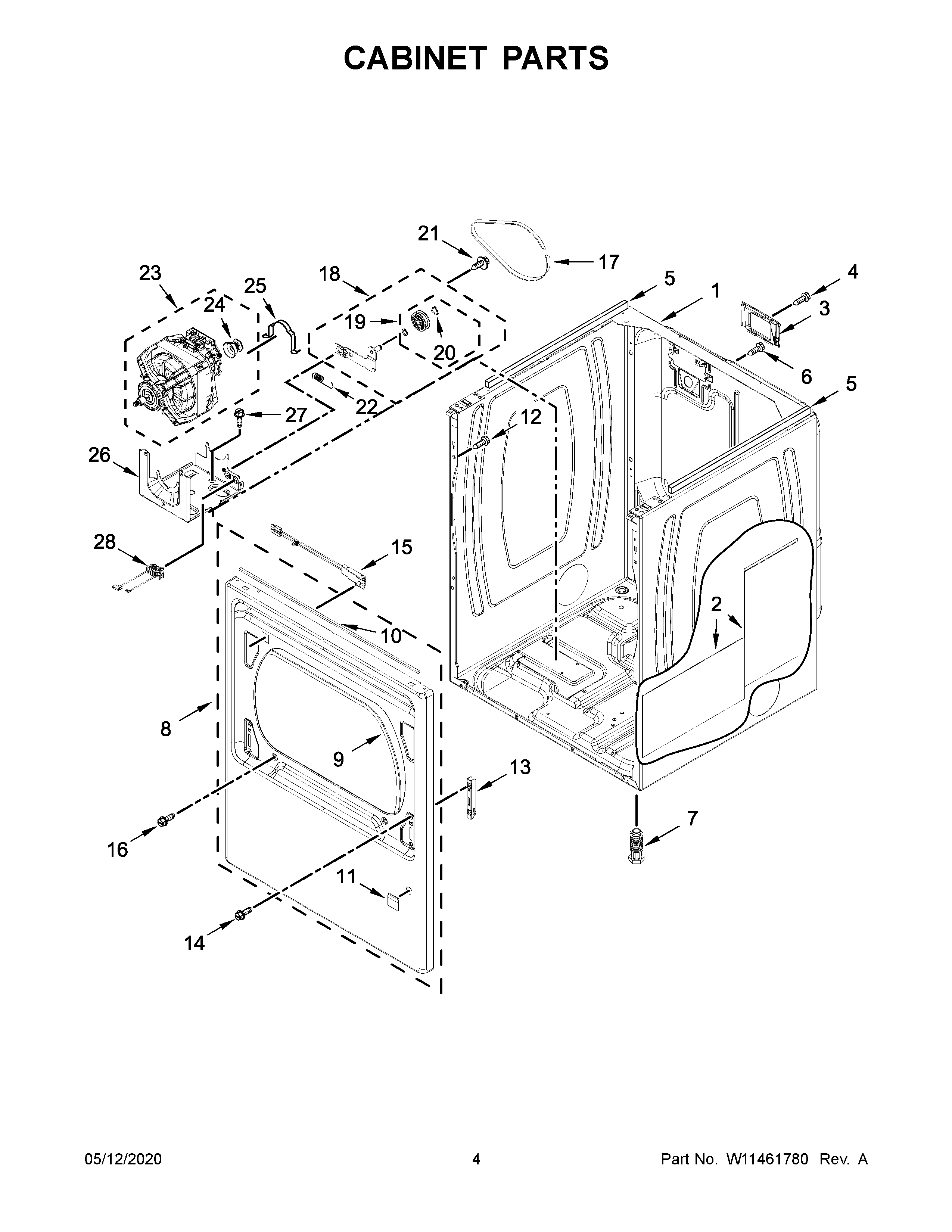

MED6230HC1 03 – CABINET PARTS

Products

Position	Product
1A	CABINET (CHROME SHADOW)
1	CABINET (WHITE)
2	PANEL, DAMPENING
3	COVER, TERMINAL BLOCK
4	SCREW
5	SEAL, FOAM
6	SCREW
7	FOOT, DRYER
8A	PANEL, FRONT (CHROME SHADOW)
8	PANEL, FRONT (WHITE)
9	MAY 3387242
10	SEAL, FOAM
11A	PLUG, FRONT PANEL (CHROME SHADOW)
11	PLUG, FRONT PANEL (WHITE)
12	SCREW
13	HINGE, INNER DOOR (RECEPTACLE)
14	SCREW
15	ASSEMBLY, DOOR SWITCH
16	SCREW
17	MAY 3387610
18	ASSEMBLY, IDLER
19	MAY W10468057
20	WASHER, TRI RING
21	SCREW
22	MAY W10446781
23	ASSEMBLY, MOTOR
24	MAY W10460106
25	CLAMP, MOTOR MOUNT
26	MAY W10242878
27	SCREW
28	SWITCH, BROKEN BELT
