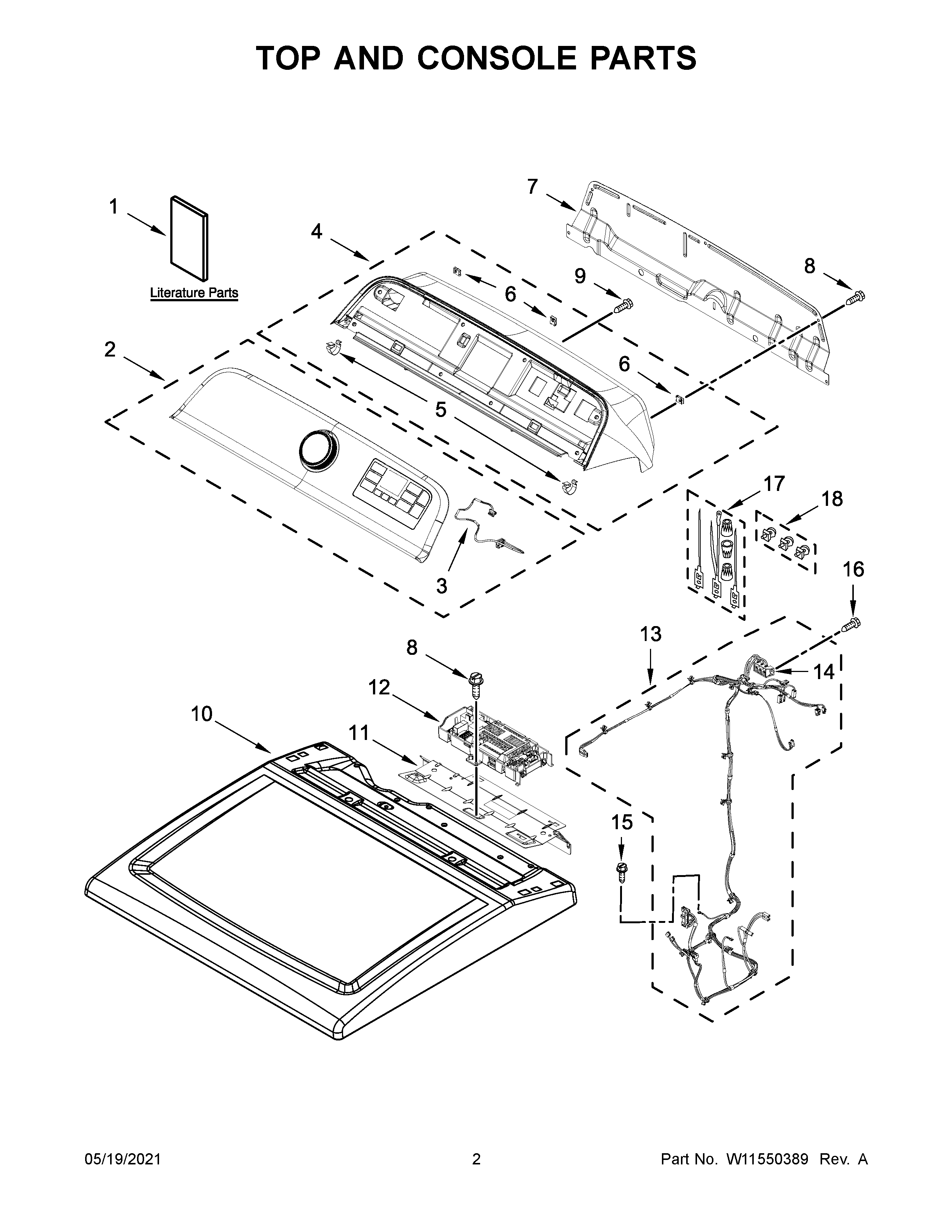

MED6230HW2 02 – TOP AND CONSOLE PARTS
Written by
in
MED6230HW2 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1A
QUICK START GUIDE
1
INSTALLATION INSTRUCTIONS
2
W11413566 Whirlpool Control Panel
3
W11721377 Whirlpool Wire Harness
4A
W11406679 Whirlpool Console
4
W11406678 Whirlpool Console
5
WP8312709 Whirlpool Endcap Clip
6
W11213336 Whirlpool Nut
7
W11433112 Whirlpool Rear Panel
8
WP488729 Whirlpool Refrigerator Door Screw
9
WP9740848 Whirlpool Dishwasher Screw
10
TOP (WHITE)
10A
W11641122 Whirlpool Top
11
W11431865 Whirlpool Bracket
12
W11525996 Whirlpool Electronic Control Board + Core
13
W11690904 Whirlpool Wire Harness
14
WP3397659 Whirlpool Terminal Block
15
W11693756 Whirlpool Screw Assembly
16
WP308685 Whirlpool Microwave Screw
17
279318 Whirlpool Terminal
18
279393 Whirlpool Terminal Block Screw and Nut Kit
←
