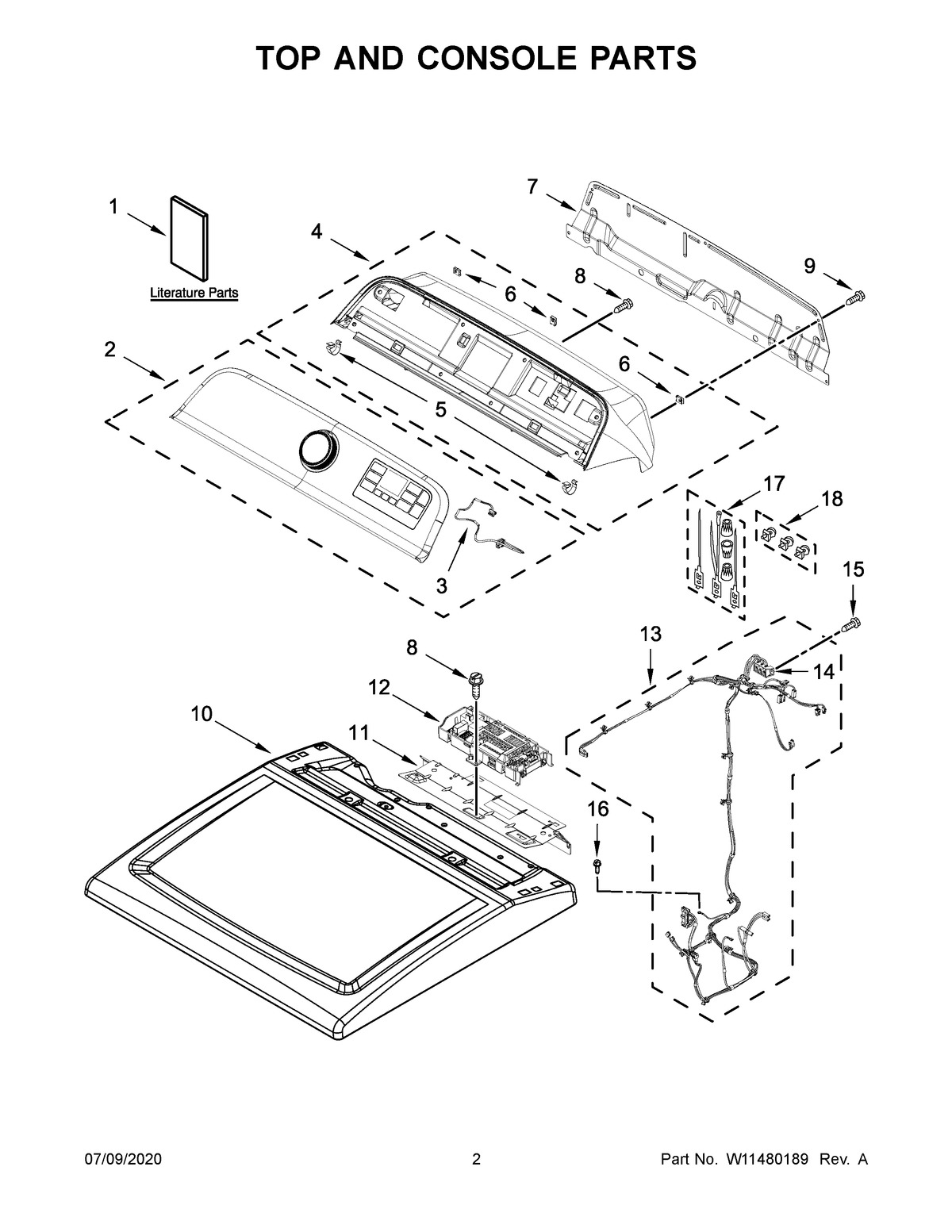

MED6230RHW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AMAY W11175222
1BQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
2ASSEMBLY, CONSOLE FASCIA (COMPLETE)
3HARNESS, USER INTERFACE (HMI)
4CONSOLE (WHITE)
5MAY 8312709
6NUT, "U"
7PANEL, REAR CONSOLE
8SCREW
9SCREW
10TOP (WHITE)
11BRACKET, ELECTRONIC CONTROL
12CONTROL, ELECTRONIC (ACU)
13HARNESS, MAIN WIRING
14MAY 3397659
15SCREW, 10-16 X 1/2
16MAY 359625
17TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18MAY 279393
