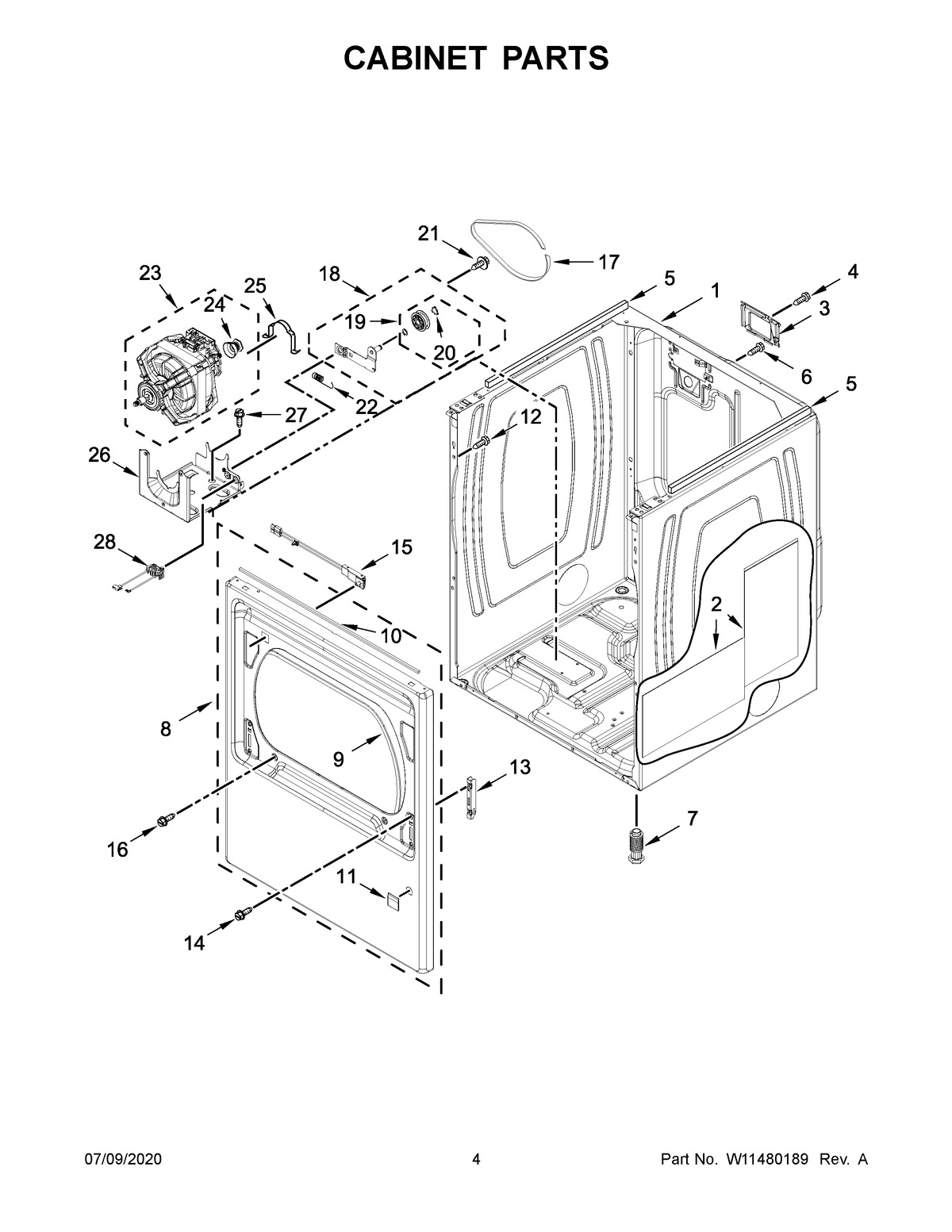

MED6230RHW1 03 – CABINET PARTSadmin2025-04-26T09:19:38+00:00MED6230RHW1 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | CABINET (WHITE) |
| 2 | PANEL, DAMPENING |
| 3 | COVER, TERMINAL BLOCK |
| 4 | SCREW |
| 5 | SEAL, FOAM |
| 6 | SCREW |
| 7 | FOOT, DRYER |
| 8 | PANEL, FRONT (WHITE) |
| 9 | MAY 3387242 |
| 10 | SEAL, FOAM |
| 11 | PLUG, FRONT PANEL (WHITE) |
| 12 | SCREW |
| 13 | HINGE, INNER DOOR (RECEPTACLE) |
| 14 | SCREW |
| 15 | ASSEMBLY, DOOR SWITCH |
| 16 | SCREW |
| 17 | MAY 3387610 |
| 18 | ASSEMBLY, IDLER |
| 19 | MAY W10468057 |
| 20 | WASHER, TRI RING |
| 21 | SCREW |
| 22 | MAY W10446781 |
| 23 | ASSEMBLY, MOTOR |
| 24 | MAY W10460106 |
| 25 | CLAMP, MOTOR MOUNT |
| 26 | MAY W10242878 |
| 27 | SCREW |
| 28 | SWITCH, BROKEN BELT |
