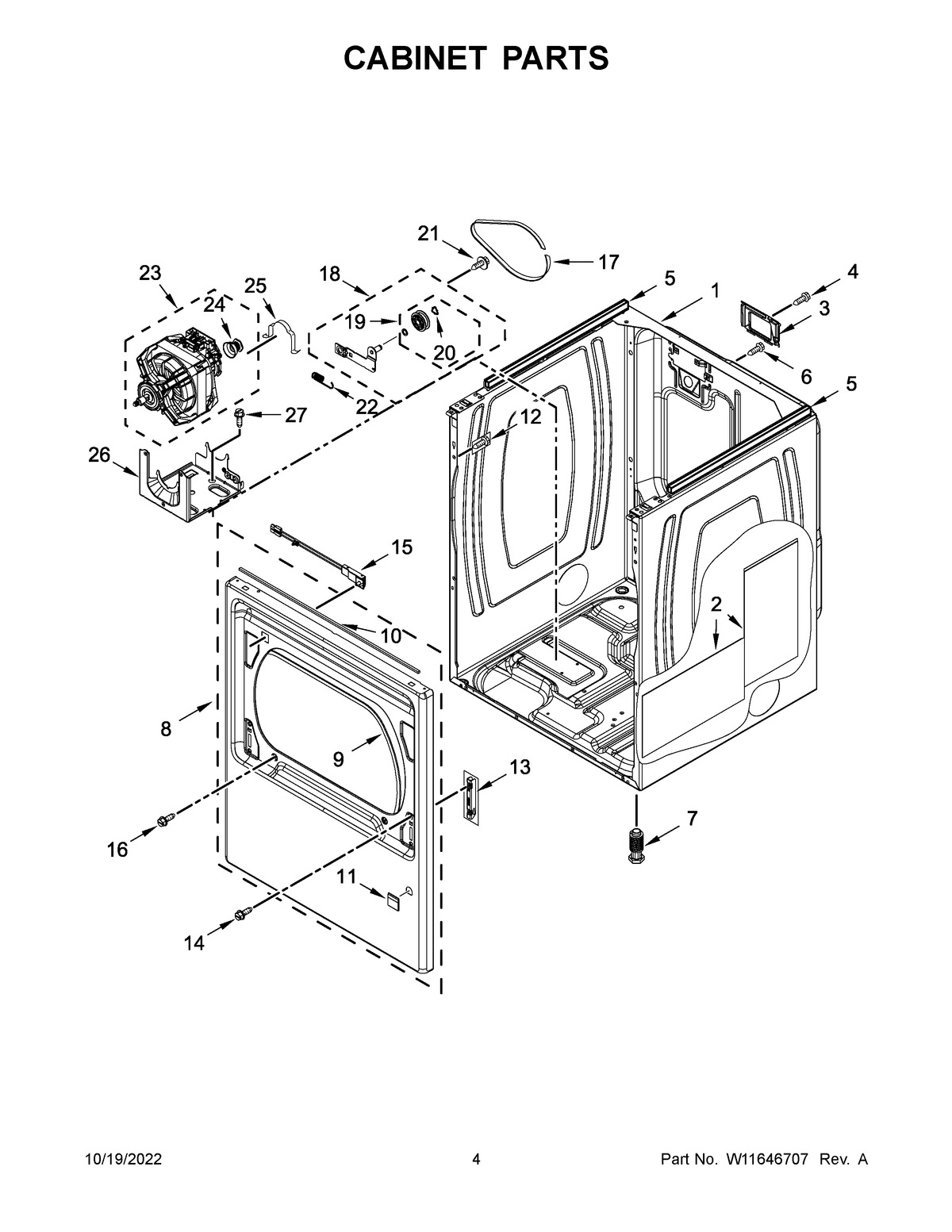

MED6230RHW3 03 – CABINET PARTS
Written by
in
MED6230RHW3 03 – CABINET PARTS
Products
Position
Product
1
W11417441 Whirlpool Cabinet
2
W11690850 Whirlpool Pad
3
W11662367 Whirlpool Dryer Cover
4
WP3390631 Whirlpool Screw
5
W11352071 Whirlpool Seal
6
W10850756 Whirlpool Screw
7
W11444912 Whirlpool Leveling Leg
8
W11402947 Whirlpool Plug
9
WP3387242 Whirlpool Seal
10
W11406199 Whirlpool Seal
11
W10811916 Whirlpool Plug
12
W10891954 Whirlpool Screw
13
W11568982 Whirlpool Inner Door Hinge
14
SCREW
15
W11551763 Whirlpool Door Switch
16
WP308685 Whirlpool Microwave Screw
17
661570V Whirlpool Dryer Drum Belt
18
W10837240 Whirlpool Dryer Idler Pulley
19
279640 Whirlpool Dryer Idler Pulley Kit
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
WP3389420 Whirlpool Screw
22
WPW10446781 Whirlpool Spring
23
W11549461 Whirlpool Motor Drive
24
W10837625 Whirlpool Dryer Motor Pulley
25
CLAMP
26
W11481730 Whirlpool Bracket
27
SCREW
←
