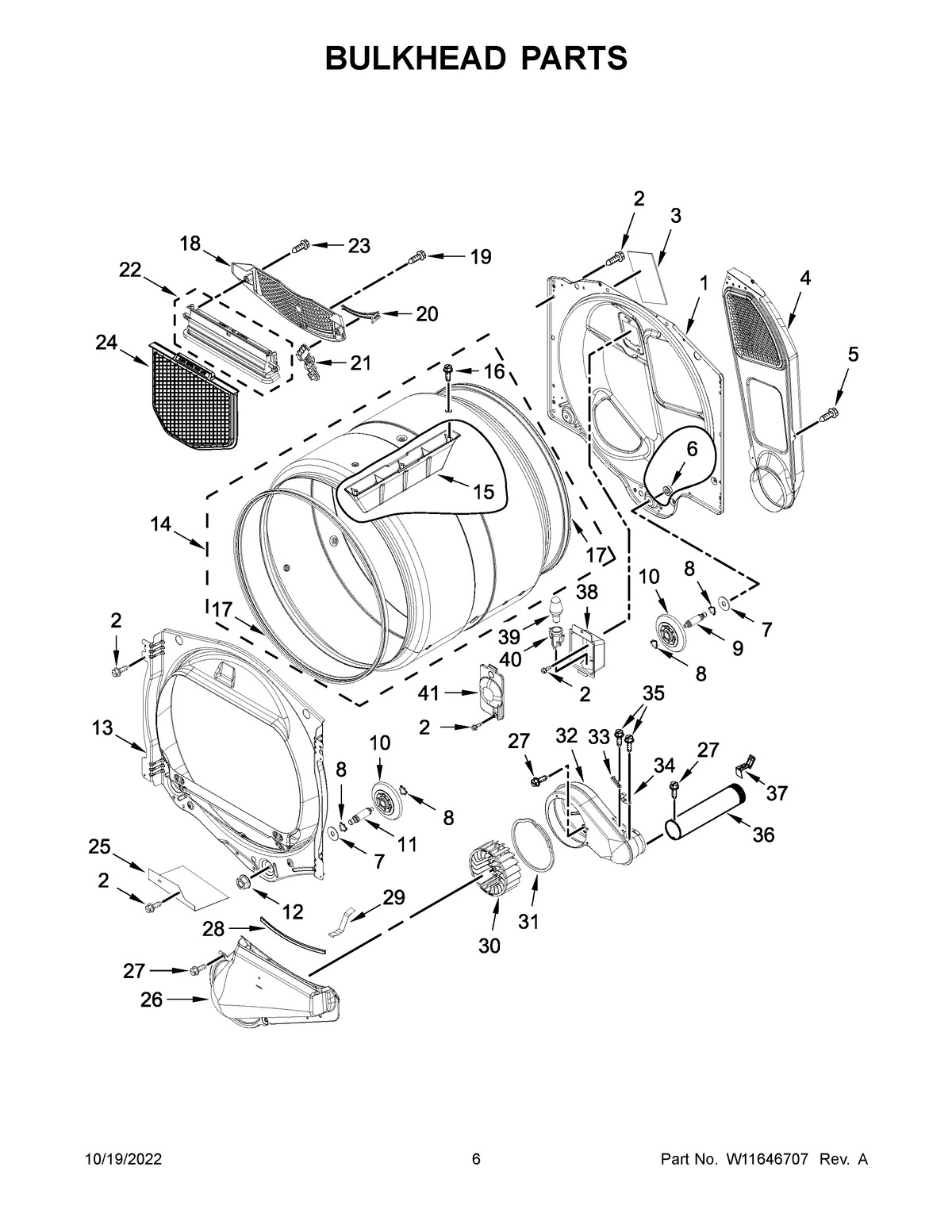

MED6230RHW3 04 – BULKHEAD PARTS

Products

Position	Product
1	W11299301 Whirlpool Bulkhead Assembly
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11409002 Whirlpool Pad
4	W11677720 Whirlpool Air Duct
5	WP90767 Whirlpool Screw
6	WPW10080190 Whirlpool Nut
7	W11236646 Whirlpool Washer Assembly
8	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
9	SHAFT
10	WPW10314173 Whirlpool Dryer Drum Support Wheel
11	SHAFT
12	WPW10080210 Whirlpool Nut
13	W11162467 Whirlpool Bulkhead Assembly
14	W10545923 Whirlpool Drum Assembly
15	WPW10113136 Whirlpool Drum Baffle
16	W10853898 Whirlpool Screw
17	280114 Whirlpool Dryer Drum Seal
18	W11086603 Whirlpool Dryer Link Screen Air Grille
20	WP3387223 Whirlpool Electrode Assembly
21	WPW10298258 Whirlpool Wire Harness
22	W11129408 Whirlpool Out Housing
23	WP3387230 Whirlpool Screw
24	W10120998 Whirlpool Dryer Lint Screen Filter
25	W11257251 Whirlpool Shield
26	WPW10128606 Whirlpool Lint Duct
27	WP489463 Whirlpool Refrigerator Screw
28	WP697813 Whirlpool Seal
29	WP8066208 Whirlpool Clip
30	WP697772 Whirlpool Dryer Blower Wheel
31	W11596046 Whirlpool Seal
32	W10888146 Whirlpool Housing
33	FUSE-THRML
34	WP8577274 Whirlpool Dryer Thermistor
35	WP693995 Whirlpool Screw
36	279936 Whirlpool Exhaust Pipe
37	W11684573 Whirlpool Clip Assembly
38	3977373 Whirlpool Bracket
39	WP22002263 Whirlpool Dryer 10W Light Bulb
40	W11222979 Whirlpool Socket
41	W11226088 Whirlpool Lens Assembly
