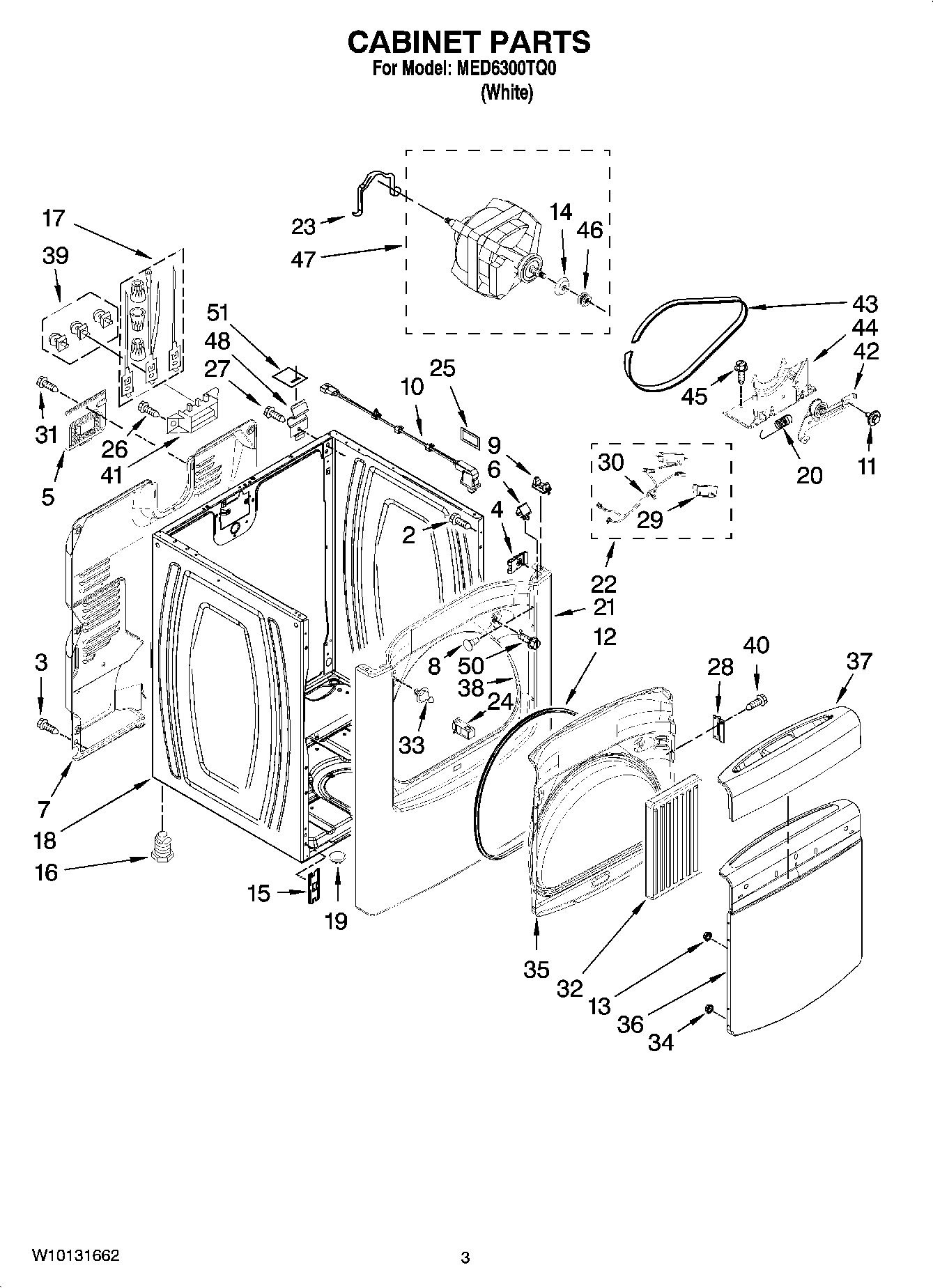

MED6300TQ0 02 – CABINET PARTS

Products

Position	Product
2	SCREW
3	Screw
4	Clip, Ground (2)
5	MAY W10110241
6	Lock-Top Front (2)
7	MAY 8558830
8	PLUG, HINGE HOLES
9	LOCATOR, SNAP-DOWN
10	MAY 3978977
11	SCREW
12	MAY 8575027
14	MAY 8578538
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	Cabinet (White)
19	Plug, Hole
20	MAY 3387374
21	Panel, Front (White)
22	MAY 8566208
23	MAY 660658
24	Catch, Door Assembly
25	MAY W10118614
26	SCREW, 10-16 X 1/2
27	SCREW
28	HINGE ASSEMBLY (WHITE)
29	MAY 8564011
30	MAY 8539897
31	MAY 8533974
32	MAY W10050060
33	MAY 8572983
34	WP308499 Whirlpool Nut
35	Door Inner
36	MAY W10116924
37	MAY W10111244
38	MAY W10044490
39	MAY 279393
40	MAY 342055
41	MAY 3397659
42	MAY 8547174
43	MAY 8547168
44	MAY 8547166
45	Bolt, 6-20 x 1 1/4
46	MAY 8578565
47	MAY 8566152
48	MAY 238088
50	MAY W10100830
51	Pad, Top Hinge (2)
