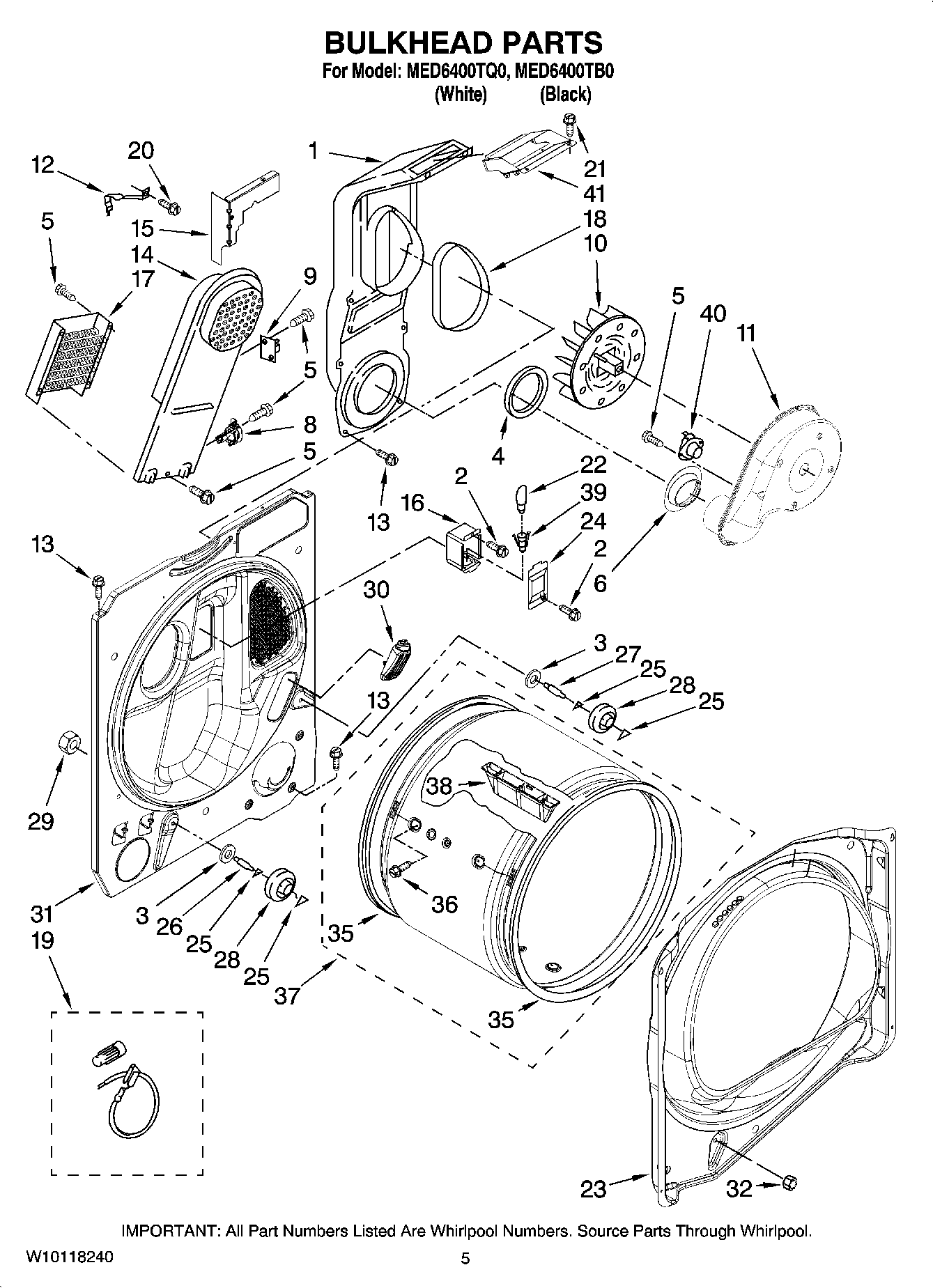

MED6400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

MED6400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

MED6400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
ACCESSORY PARTS (KIT, DRYER VENT TESTING)
MAY W10071550
MAY 4392901
MAY 4392899
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, TOUCH-UP (1/2OZ. BLACK)
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
ACCESSORY PARTS, KIT, DRYER REPAIR
1MAY 8544805
2MAY 487909
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
6MAY 8573836
8MAY 8566498
9Kit Thermal Cut-Off (Includes Illus. 8)
10Wheel, Blower
11MAY 8577230
12MAY 8546149
13SCREW
14MAY 8544801
15MAY W10053480
16MAY 3977373
17MAY 8573069
18MAY 8544813
19BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20Screw
21Screw
22MAY 3406126
23MAY 8558890
24MAY 3402841
25WASHER, TRI RING
26MAY 8575325
27MAY 8575324
28MAY 8536973
29NUT, HEX (LEFT HAND THREAD)
30MAY 8576468
31MAY 8557242
32NUT, HEX
35MAY 8557277
36MAY W10109200
37MAY 8557270
38MAY 8565688
39Scocket, Assembly
40THERMISTOR
41MAY 8544810
