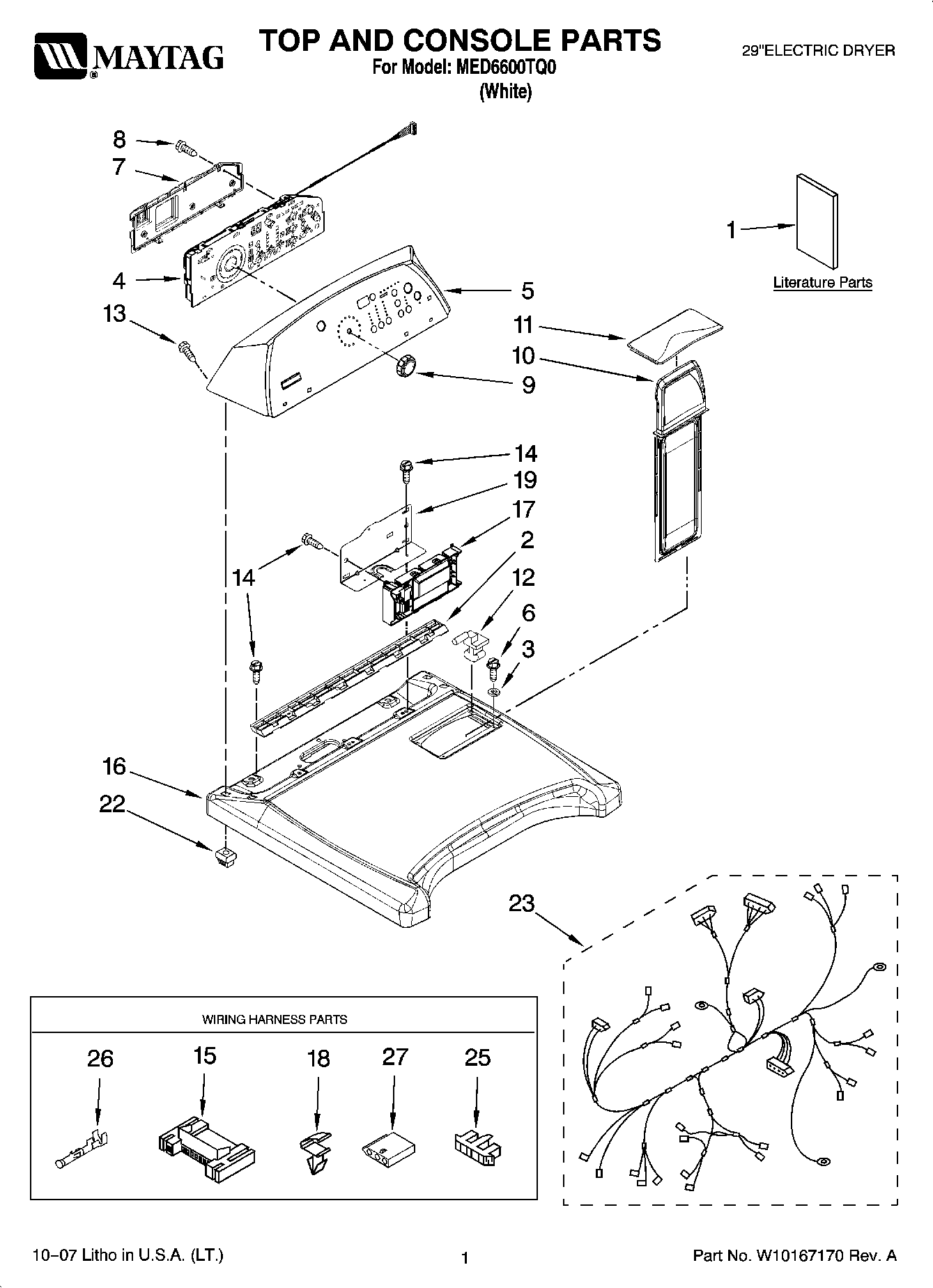

MED6600TQ0 01 – TOP AND CONSOLE PARTS

MED6600TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MED6600TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10160247
1MAY W10160249
1MAY W10160250
1MAY W10165147
1MAY W10156040
2MAY 8558863
3Washer (Top/Chute)
4MAY W10051167
5MAY W10170903
6Screw
7Cover, Rear
8Screw, 6-19 x 3/64
9MAY W10110196
10MAY 8572270
11Cover, Lint Screen (White)
12MAY W10044480
12MAY W10044470
13MAY W10001580
14Screw, 8-18 x 3/4
15CONNECTOR (MOTOR)
16Top (White)
17MAY W10111614
18CLIP, HARNESS
19MAY 8563853
22MAY 8558853
23MAY W10141980
25MAY 3936144
26Terminal
27Connector-Timer
