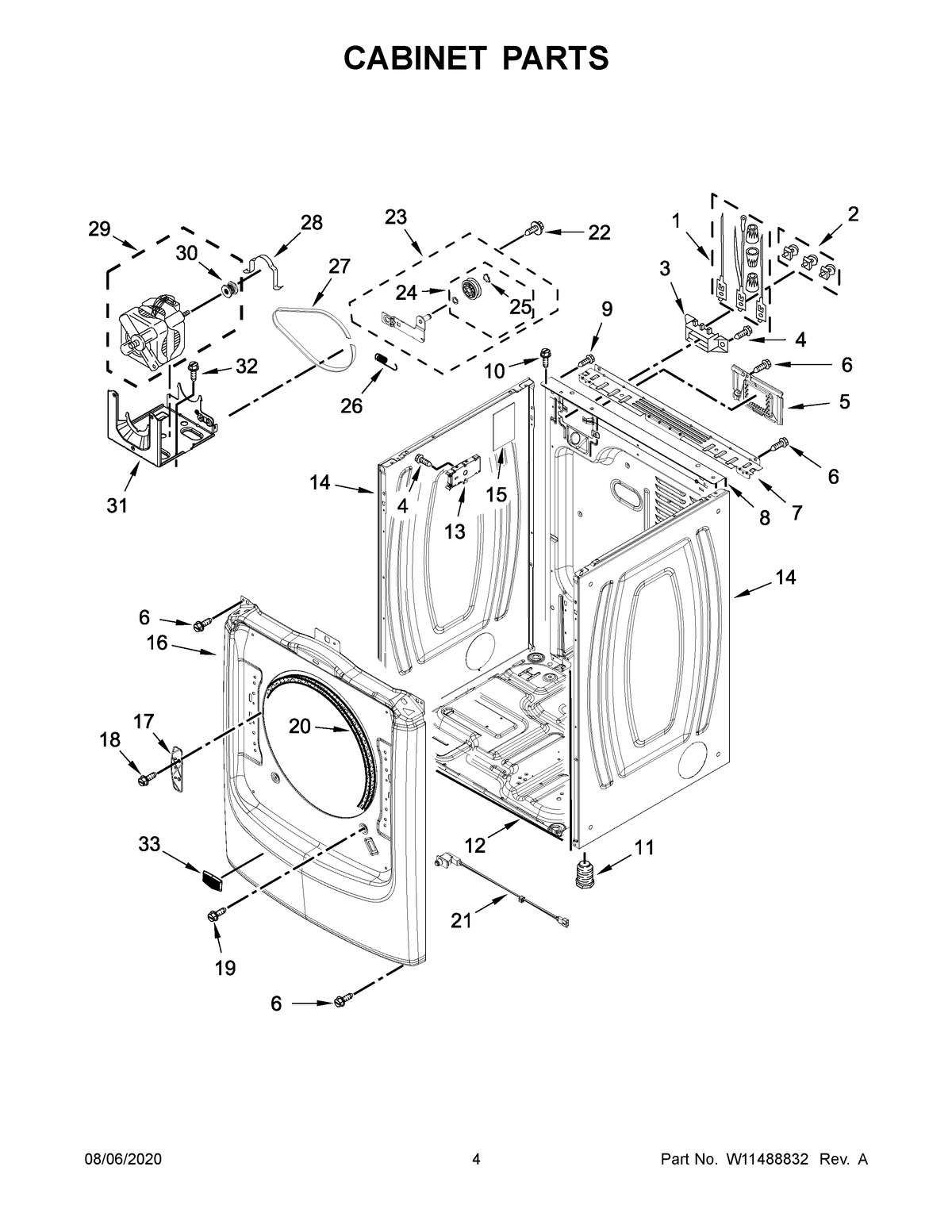

MED6630HW2 03 – CABINET PARTS

Products

Position	Product
NI	KIT, 4-WAY VENT
NI	MAY 279810
1	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
2	MAY 279393
3	MAY 3397659
4	Screw
5	COVER, TERMINAL BLOCK
6	SCREW
7	MAY W10208382
8	MAY W10487430
9	SCREW
10	SCREW, 10-16 X 1/2
11	MAY 3392100
12	MAY 8565046
13	MAY W11461200
14	MAY W11177568
15	MAY W10504381
16	MAY W11421266
17	MAY W10208250
18	MAY W10288126
19	SCREW
20	MAY 3387242
21	ASSEMBLY, DOOR SWITCH
22	SCREW
23	ASSEMBLY, IDLER
24	MAY W10468057
25	WASHER, TRI RING
26	MAY W10446781
27	MAY 3387610
28	CLAMP, MOTOR MOUNT
29	ASSEMBLY, MOTOR
30	Pulley, Motor
31	BRACKET, MOTOR MOUNTING
32	SCREW
33	BADGE, MAYTAG
