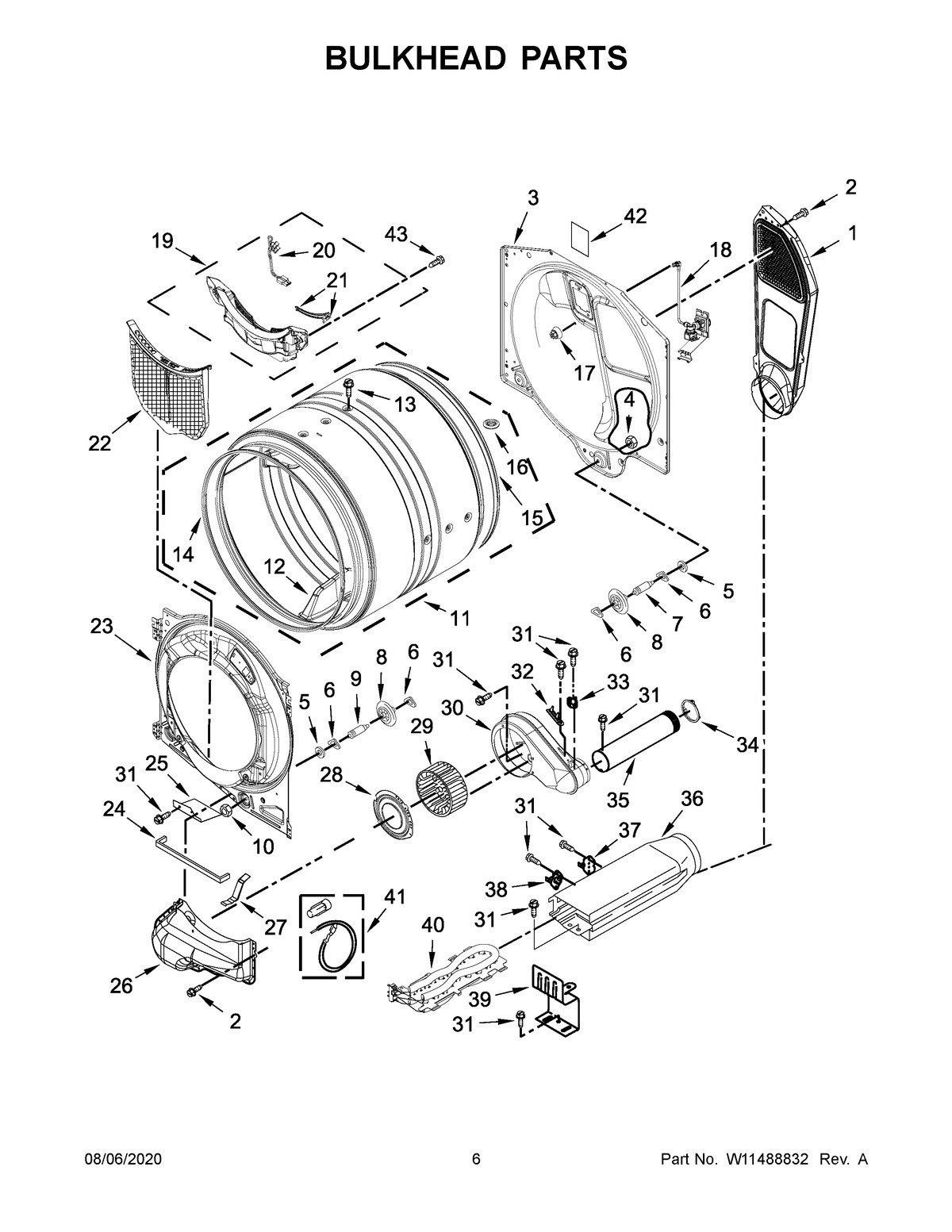

MED6630HW2 04 – BULKHEAD PARTS

Products

Position	Product
1	ASSEMBLY, AIR DUCT
2	SCREW
3	MAY W11209933
4	NUT, HEX (LEFT HAND THREAD)
5	WASHER
6	WASHER, TRI RING
7	SHAFT, DRUM ROLLER – LEFT HAND THREAD
8	ROLLER, SUPPORT
9	SHAFT, DRUM ROLLER RIGHT HAND THREAD
10	NUT, HEX
11	DRUM ASSEMBLY COMPLETE
12	MAY W10416098
13	MAY W10219342
14	MAY W10521122
15	MAY W10521118
16	CAP, PLUG
17	NOZZLE, CAP
18	VALVE AND HOSE ASSEMBLY
19	ASSEMBLY, OUTLET GRILL AND HOUSING
20	MAY W10298258
21	SENSOR, ELECTRODE
22	LINT SCREEN (WHITE)
23	BULKHEAD, FRONT
24	MAY W10211950
25	MAY W11257251
26	MAY W10211896
27	MAY W10414388
28	MAY W11254843
29	MAY 697772
30	MAY W10211911
31	Screw
32	FUSE, THERMAL (91C)
33	THERMISTOR
34	MAY W10344699
35	MAY W10342188
36	ASSEMBLY, WELD HEATER BOX
37	KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
38	MAY 8557403
39	MAY 8066099
40	MAY W11344457
41	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
42	PAD, FOAM
43	SCREW
