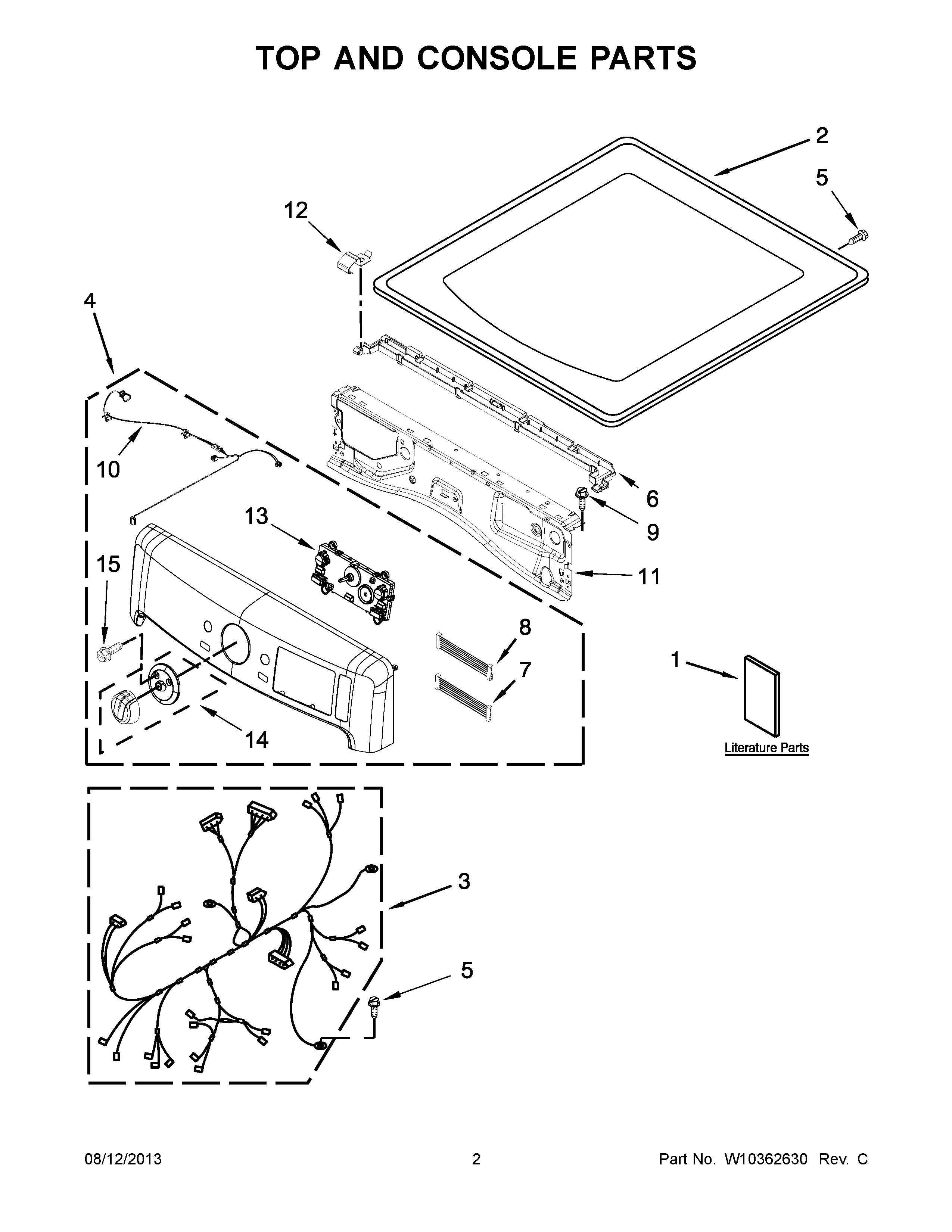

MED7000XG0 02 – TOP AND CONSOLE PARTS

MED7000XG0 02 – TOP AND CONSOLE PARTS

Written by

in

MED7000XG0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10057363
1MAY W10316958
1USE AND CARE GUIDE
1MAY W10297008
2MAY W10208383
2MAY W10301057
2MAY W10337792
3MAY W10355893
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD) (WHITE)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD) (RED)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD) (COSMETALLIC)
5Screw
6MAY W10317570
7HARNESS, JUMPER
8HARNESS, JUMPER
9SCREW
10MAY W10267833
11MAY W10208198
12MAY W10317566
13MAY W10348583
14MAY W10514146
15MAY W10146359
