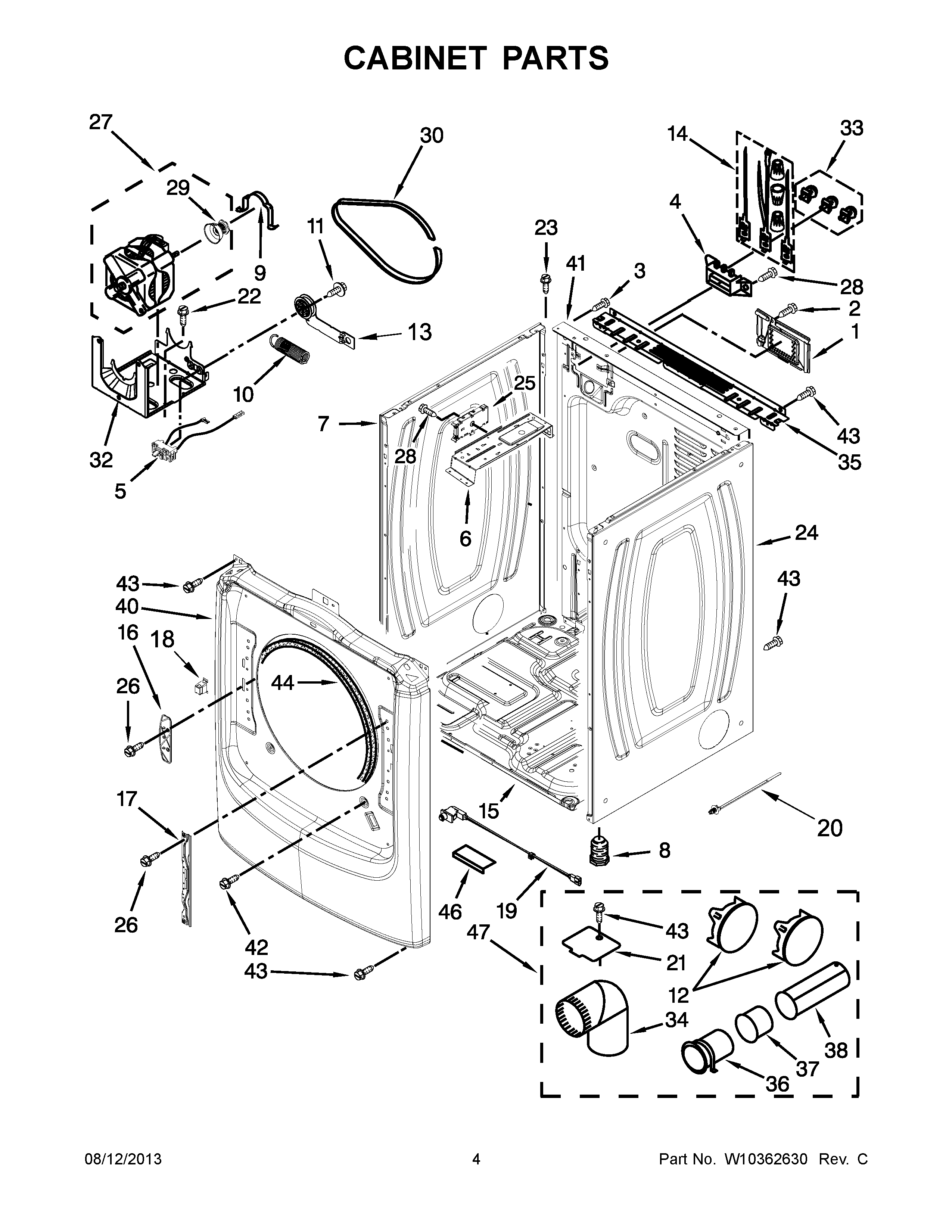

MED7000XG0 03 – CABINET PARTS

MED7000XG0 03 – CABINET PARTS

Written by

in

MED7000XG0 03 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1MAY W10316167
2Screw, 8-18 x 3/8
3MAY 8533974
4MAY 3397659
5MAY W10246525
6MAY W10259611
7MAY W10337789
7MAY W10301058
7Panel, Side (L.H.) (White)
8MAY 3392100
9CLAMP, MOTOR MOUNT
10MAY W10446781
11SCREW
12PLUG, MULTIVENT (MIDNIGHT GREY)
13ASSEMBLY, IDLER
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15MAY 8565046
16MAY W10208250
17MAY W10315109
18MAY W10208401
19MAY W10295361
20MAY W10267532
21MAY W10354249
22SCREW
23SCREW, 10-16 X 1/2
24Panel, Side (R.H.) (White)
24MAY W10337790
24MAY W10301059
25MAY W10352731
26MAY W10288126
27ASSEMBLY, MOTOR
28SCREW,8-18 X 3/8
29MAY W10460106
30MAY W10112954
32MAY W10242878
33MAY 279393
34MAY W10416072
35MAY W10208382
36PIPE, EXHAUST (MEDIUM)
37PIPE, EXHAUST (SHORT)
38PIPE, EXHAUST (LONG)
40MAY W10337786
40MAY W10301067
40MAY W10294349
41MAY W10247569
42SCREW
43SCREW
44MAY 3387242
46MAY W10215725
47KIT, 4-WAY VENT
