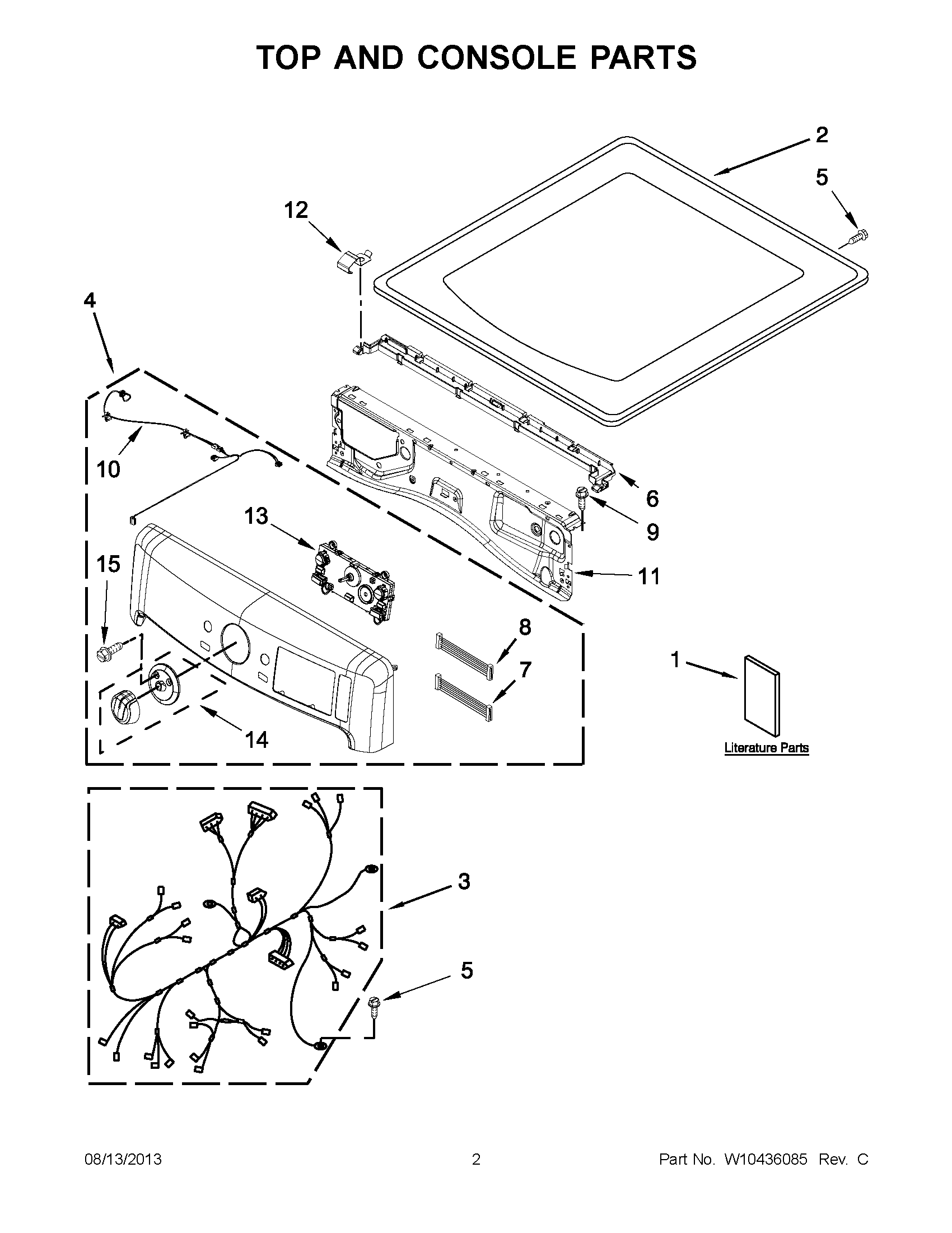

MED7000XR1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1	MAY W10316958
1	MAY W10297008
1	MAY W10423118
2	MAY W10208383
2	MAY W10301057
2	MAY W10337792
3	MAY W10355893
4	MAY W10388467
4	PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD) (RED)
4	MAY W10388465
5	Screw
6	MAY W10317570
7	HARNESS, JUMPER
8	HARNESS, JUMPER
9	SCREW
10	MAY W10267833
11	MAY W10208198
12	MAY W10317566
13	MAY W10389298
14	MAY W10514146
15	MAY W10146359
